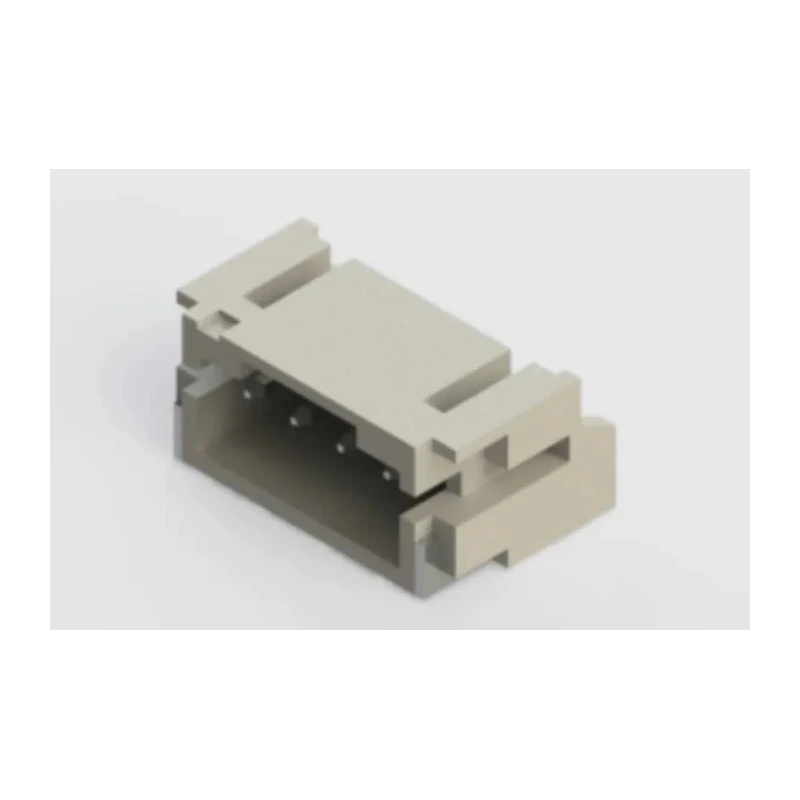

EDAC 140 Series Right Angle Surface PCB Header with 4 Contacts, 2 mm Pitch, 1 Row, Shrouded, 100V, 2A 140-504-417-060

The EDAC 140 series right angle surface PCB header model 140-504-417-060 offers a robust solution for internal wire-to-PCB connections requiring high density and reliability. With a 2 mm pitch, 4 contacts arranged in a single row, and a shrouded connector body, it is well-suited for demanding electronics assemblies.

The housing is manufactured from polyamide 9T material providing durability and stability under mechanical and thermal stresses. The contacts are brass with tin plating, promoting excellent electrical conductivity and corrosion resistance. Designed for surface mount and solder termination, the header ensures strong mechanical and electrical bonding on printed circuit boards.

Operating temperature capability ranges from -40°C to +105°C, suitable for various industrial and commercial electronic applications. The connector supports 2A current at 100V, meeting standard power requirements for many low voltage systems. This shrouded design also enhances safety by preventing accidental contact.

The EDAC 140-504-417-060 PCB header complies with RoHS environmental standards, assuring restricted use of hazardous substances and supporting sustainable electronics manufacturing.

Constructed with polyamide 9T housing material for durability. Features a shrouded, right angle design for secure mounting. Supports surface mount with solder termination type. Operates within temperature range of -40°C to 105°C.

Current rating of 2A at 100V voltage for PCB connectivity. Brass contact material plated with tin ensuring good conductivity. Compliant with RoHS standards for environmental safety. Single-row configuration with 4 contacts for compact PCB integration.

This component is ideal for use in electronic assembly, manufacturing, industrial control panels, and automotive electronics requiring reliable wire-to-board connections. The right angle orientation facilitates space-saving PCB layouts.
