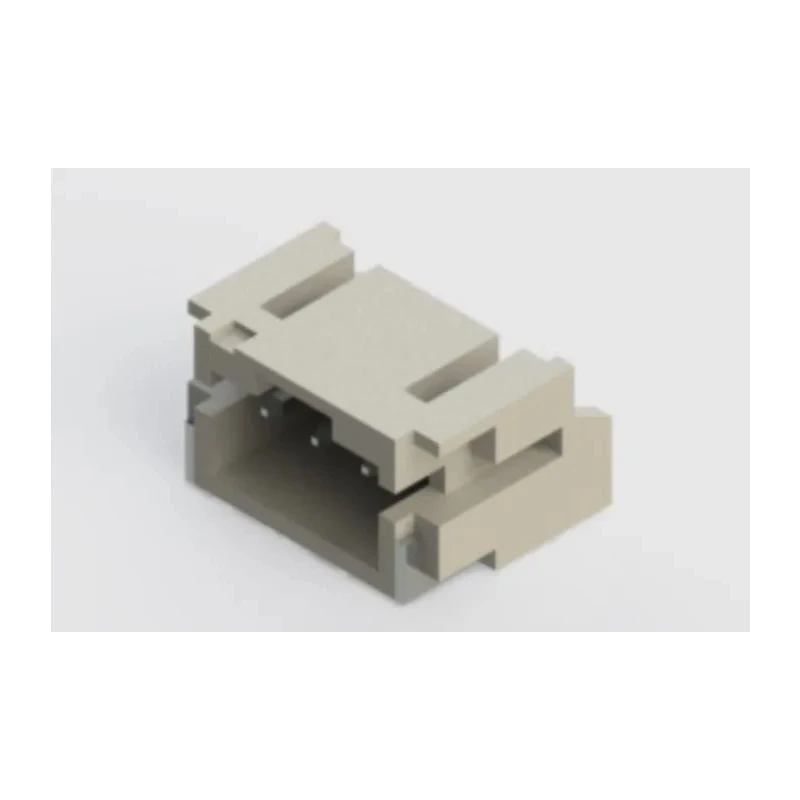

EDAC 140 Series Right Angle Surface PCB Header 3 Contact 2 mm Pitch 1 Row Shrouded 140-503-417-060

EDAC 140-503-417-060 is a Right Angle Surface PCB Header from the 140 Series, featuring 3 contacts with a 2 mm pitch arranged in one row. This shrouded PCB header is designed for high-density, reliable wire-to-board connections in electronics assemblies.

The connector housing is made from polyamide 9T material, providing robust insulation and resistance to mechanical stresses. Brass contacts plated with tin ensure effective conductivity and corrosion resistance, supporting current capacity up to 2A and voltage rating of 100V.

Its operating temperature range from -40°C to 105°C allows usage across industrial, commercial, and laboratory environments. The surface mount termination and solder type contacts facilitate ease of assembly onto PCBs. Right angle orientation assists in efficient space management and routing on circuit boards.

Designed as a compact, single-row connector, it is ideal for applications requiring reliable shrouded contacts for protection against accidental contact and improved connector longevity.

The connector utilizes polyamide 9T housing material ensuring durability. Supports a current rating of 2A and voltage of 100V for reliable performance. Contact material is brass with tin plating for corrosion resistance.

Temperature operating range spans from -40°C to 105°C suitable for varied environments. Designed with solder termination type and female contact gender for PCB wire-to-board connection. Compact single row design enables high-density internal wiring connections.

Complies with RoHS standards ensuring environmentally responsible manufacturing. Surface mount type facilitates efficient PCB assembly processes. Right angle orientation aids in space-saving PCB designs.

This EDAC 140 Series PCB Header is suitable for electronics manufacturing, industrial control systems, communication devices, and instrumentation applications where reliable PCB connectivity is critical. Its standard 2 mm pitch and shrouded design provide security and ease of connection in complex assemblies.
