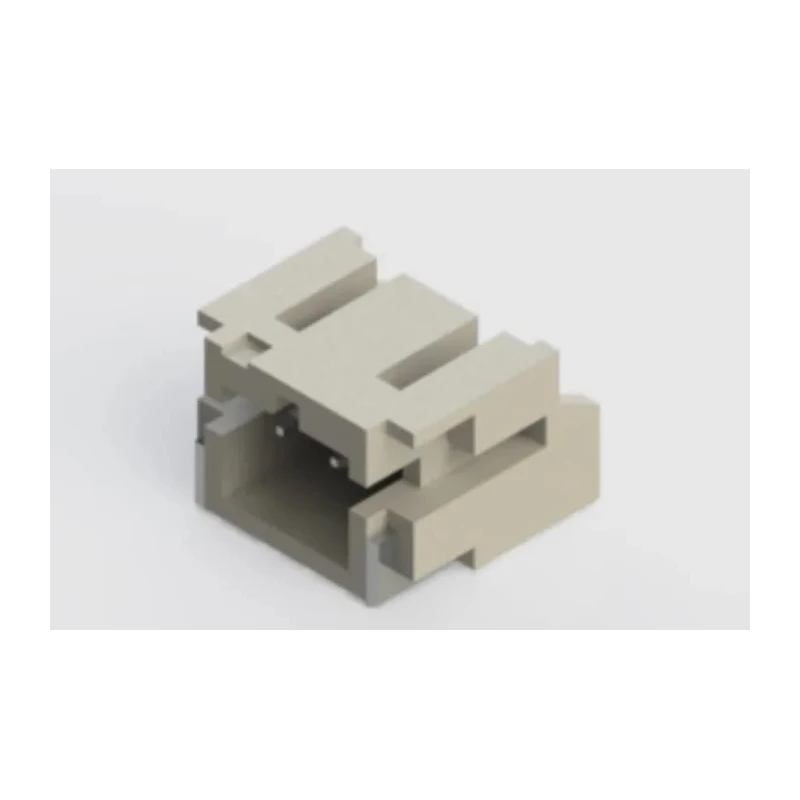

EDAC 140 Series Right Angle Surface PCB Header, 2 Contacts, 2 mm Pitch, 1 Row, Shrouded 140-502-417-060

EDAC 140-502-417-060 is a highly reliable 140 Series right angle surface mount PCB header designed specifically for electronic and electrical connector applications. This shrouded PCB header features 2 female contacts arranged in a single row with 2 mm pitch spacing, providing a compact and space-saving solution for internal wire to PCB connections in industrial, commercial, and laboratory electronic assemblies.

The housing is made from polyamide 9T material with UL94V-0 rating, ensuring excellent mechanical strength and flame retardant properties. The brass contacts with tin plating provide good electrical conductivity and corrosion resistance. Designed to operate reliably in a wide temperature range from -40°C to 105°C, this connector is suitable for demanding environments that require stable electrical performance.

Its surface mount design with a right angle orientation allows easy soldering to PCB boards, optimizing assembly workflows in manufacturing and prototype development environments. The shrouded design prevents misconnections and offers additional mechanical protection, increasing the connector’s durability in rugged industrial applications.

This connector supports a current rating of 2A and an operating voltage of up to 100V, ideal for low current signal and power transmission requirements in various electronic devices and instrumentation systems. It is RoHS compliant, ensuring that it meets environmental and sustainability requirements for electronics manufacturing.

The EDAC 140-502-417-060 PCB Header finds extensive use cases in industrial electronics, telecommunications, medical devices, and embedded systems where compact, robust, and reliable PCB connector solutions are critical for system integrity and performance.

2 mm pitch spacing for precise PCB fit. 2 female contacts in a single row configuration. Brass contacts with tin plating for longevity. Polyamide 9T housing with UL94V-0 flame rating. Temperature range from -40°C to +105°C.

2A current and 100V voltage rating. Surface mount and right angle orientation. Shrouded design for contact protection. Solder termination for permanent PCB connection. RoHS compliance for environmental safety. For a comprehensive selection of PCB connectors, browse our Electronics & Electricals connectors catalog on EnvMart.
