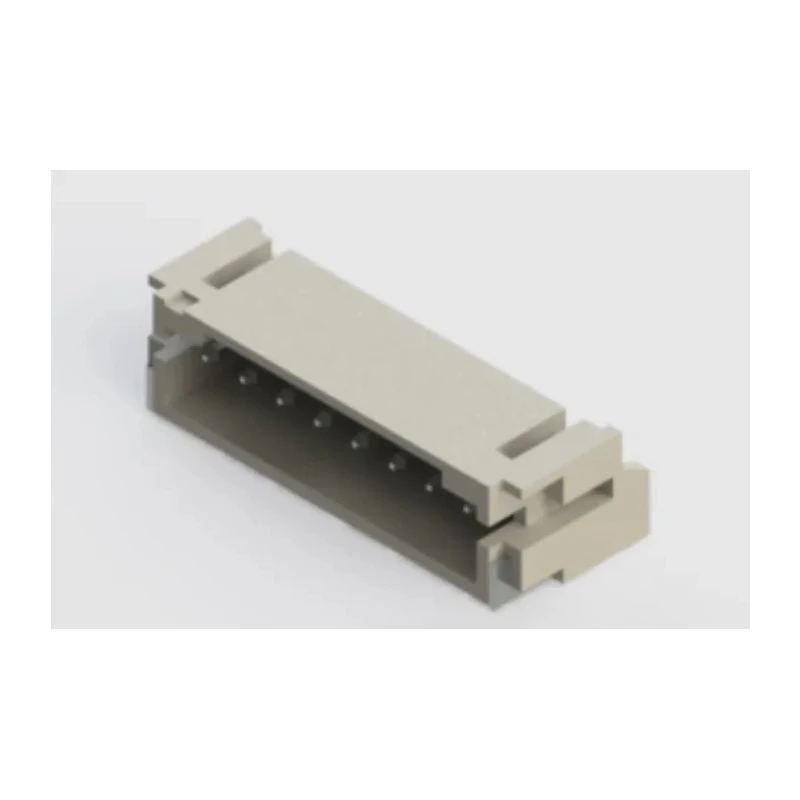

EDAC 140 Series Right Angle Surface PCB Header 8 Contact 2 mm Pitch 1 Row Shrouded 140-508-417-060
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | EDAC |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Polyamide 9T |
| Contact Material | Brass |
| Series | 140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for high-density internal wire to PCB connection.
- Features a low profile insulator body made from Polyamide 9T material.
- Contact material is brass with tin plating for reliable solder termination.
- Supports surface mount on PCB with wire-to-board connector system.
- Operating temperature range from -40°C to 105°C for robust performance.
- Rated for 2A current and 100V voltage applications.
- Shrouded one-row design with 2 mm pitch for precise alignment.
- Meets RoHS compliance standards ensuring environmental safety.
Product Description
EDAC 140-508-417-060 Right Angle Surface PCB Header is a high-quality connector designed for wire-to-board applications with a compact 2 mm pitch and 8 female contacts arranged in a single row. The shrouded design provides protection and reliable mating, making it suitable for dense PCB assemblies where space optimization is essential.
The housing is constructed from durable Polyamide 9T (PA66) material rated UL94V-0, which offers excellent flame retardancy and mechanical strength. Contacts are made of brass with tin plating ensuring good electrical conductivity and solderability to surface mount pads on printed circuit boards.
This PCB header supports a current rating of 2 amperes and a voltage rating of 100 volts, suitable for various low power electronics and industriellelectronic systems. It features a right angle orientation for side-entry cable connection, optimizing board layout and wiring convenience.
Its operating temperature range spans from -40°C up to 105°C, enabling reliable function in a wide range of environmental conditions including industrial and commercial applications. The connector system complies with RoHS directives, ensuring environmentally friendly manufacturing and materials.
Designed for high-density internal wire to PCB connection. Features a low profile insulator body made from Polyamide 9T material. Contact material is brass with tin plating for reliable solder termination. Supports surface mount on PCB with wire-to-board connector system.
Operating temperature range from -40°C to 105°C for robust performance. Rated for 2A current and 100V voltage applications. Shrouded one-row design with 2 mm pitch for precise alignment. Meets RoHS compliance standards ensuring environmental safety.
This PCB header is commonly used in electronic components manufacturing, power distribution modules, industrial control equipment, and telecommunications hardware where compact, reliable connections are required. It facilitates easy assembly and maintenance due to its surface mount termination and secure shrouded contacts.
Explore more EDAC PCB Headers and related components in the Electronics & Electricals category at EnvMart to find compatible connectors for modular designs and upgrades.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 100 volts, making it suitable for low power electronics applications.
It is rated for a current of 2 amperes, allowing it to handle various low power electronic systems.
The housing is made from Polyamide 9T, and the contacts are brass with tin plating for reliable solder termination.
It operates effectively within a temperature range of -40°C to 105°C, suitable for various environmental conditions.
This model features 8 female contacts arranged in a single row, designed for high-density connections.
It supports surface mounting on PCBs, facilitating easy assembly in compact spaces.
The contact pitch for this PCB header is 2 mm, allowing for precise alignment in dense assemblies.
Yes, it meets RoHS compliance standards, ensuring environmentally friendly manufacturing and materials.
The contacts are oriented at a right angle, which optimizes board layout and wiring convenience.
It utilizes a wire-to-board connector system, suitable for internal wire connections to PCBs.
It has a shrouded design that provides protection and reliable mating for the contacts, enhancing connection integrity.
The country of origin for this model is China, where it is produced under strict quality standards.
