KEMET Polypropylene Capacitor Through Hole 470 nF, ±5%, 1 kV DC, 180V AC, Tape & Reel PHE450

Free Delivery in India | Lowest Global Shipping Charges

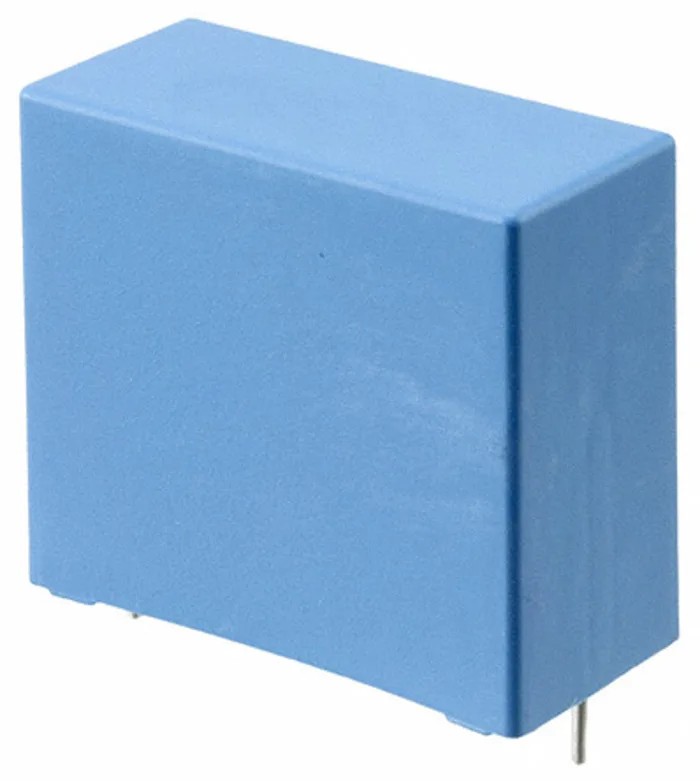

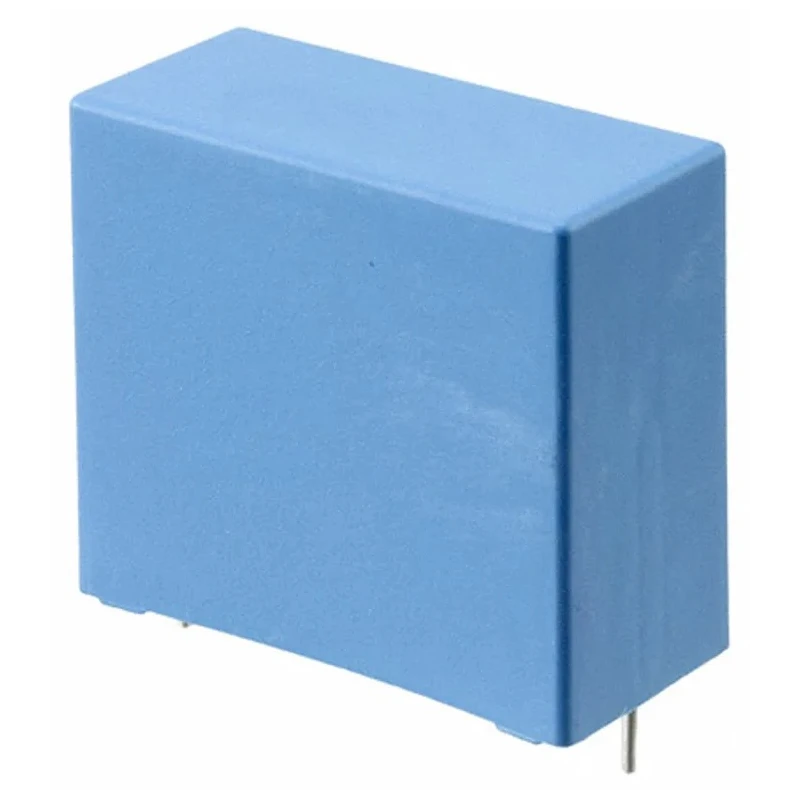

KEMET Polypropylene Capacitor Through Hole 470 nF, ±5%, 1 kV DC, 180V AC, Tape & Reel PHE450

Name: KEMET Polypropylene Capacitor Through Hole 470 nF, ±5%, 1 kV DC, 180V AC, Tape & Reel PHE450
Brand: KEMET
SKU: 80331
Price: 2.58 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	24.5mm
Length	31.5mm
Model	PHE450
Packaging	Tape & Reel
Width	14.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	1kV dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

Designed for protection circuits in switch mode power supplies and pulse/snubber applications.
Metallized polypropylene film construction for reliable operation under high current stress.
Rated for 1 kV DC and 180V AC, with a 470 nF capacitance and ±5% tolerance.
Encapsulated in self-extinguishing resin for enhanced safety (UL94V-0 material).
Supports wide operating temperature from -55°C to 105°C.
Radial terminals and lead pitch of 27.5 mm for easy PCB integration.
Supplied in tape & reel packaging for automated assembly processes.

Product Description

The KEMET PHE450PF6470JF13R06L2 is a high-performance metallized polypropylene film capacitor designed for demanding electronic applications. It is rated at 470 nF, with ±5% tolerance, and is built to operate at 1 kV DC and 180V AC, providing robust insulation and reliability for diverse circuits.

Its through-hole mounting style and radial terminals, combined with a lead pitch of 27.5 mm, make the capacitor suitable for PCB layouts where mechanical stability and electrical performance are essential. The capacitor measures 31.5 mm in length, 24.5 mm in height, and 14.5 mm in width, with leads of 6 mm length and 0.8 mm diameter.

Encapsulated in a self-extinguishing resin box conforming to UL94V-0, the capacitor offers enhanced protection against fire hazards and is ideal in environments subject to high current stress. The dissipation factor of 0.0003% ensures minimal energy loss, making it suitable for pulse and snubber circuits in switch mode power supplies as well as in deflection circuits for televisions.

With a wide operating temperature range from -55°C to 105°C, the PHE450PF6470JF13R06L2 supports reliable operation under diverse environmental conditions. The polypropylene film construction provides excellent dielectric properties and durability, while the tape and reel packaging facilitates automated assembly for high-volume production.

Double metallised polypropylene film design enables high reliability and long lifespan. Suitable for protection, pulse, and snubber applications requiring high voltage and accuracy. Complies with RoHS standards for safety and environmental compliance.

Two-pin configuration simplifies installation and integration in modern electronic assemblies. Used in industrial, commercial, and laboratory electronics, especially where stable capacitance and high voltage operation are required.
