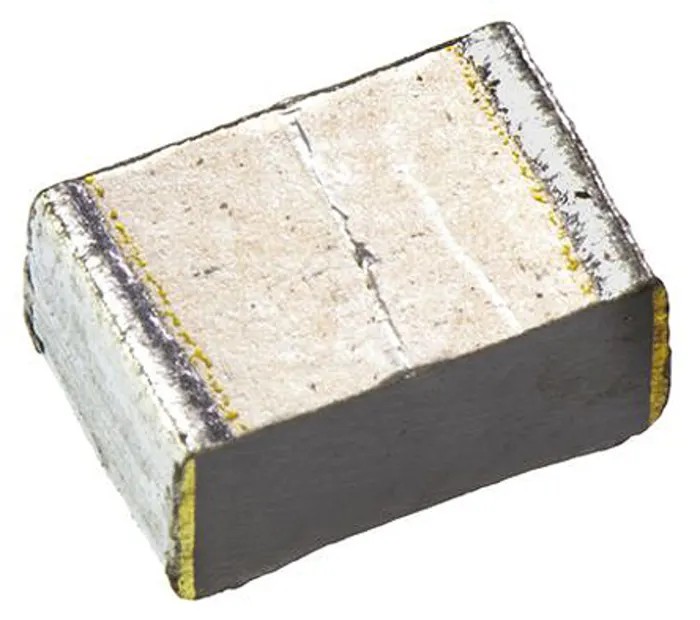

Panasonic Film Capacitor Surface Mount 3.3 nF 50V dc 50V ac PPS ECHU1H332GX5

Panasonic ECHU1H332GX5 is a high-quality film capacitor designed for surface mount applications. It features a capacitance of 3.3 nF and is rated for 50V direct current (dc) and 50V alternating current (ac), making it suitable for various electronic components and power connector designs.

This capacitor belongs to the ECHU(X) series and utilizes stacked metallised PPS (polyphenylene sulfide) film in a mould-less construction, delivering a compact and lightweight design with low equivalent series resistance (ESR). The product supports reflow soldering technology, enhancing manufacturing efficiency in automated PCB assembly processes.

With a maximum operating temperature of 125°C, it ensures reliable performance in demanding environments. Its miniature dimensions (3.2 mm length, 1.6 mm width, and 0.9 mm height) enable easy integration into space-constrained electronics.

The capacitor suits applications requiring time-constant circuits, oscillation and resonance circuits, filtering, and audio frequency circuits. It maintains capacitance stability and insulation resistance over time and temperature variations, contributing to overall circuit reliability.

Designed for industrial electronics, power connectors, and passive components sectors, this capacitor complies with RoHS environmental standards, ensuring safe and eco-friendly electronic manufacturing.

Features reflow soldering only for efficient PCB assembly. Constructed from stacked metallised PPS film with mould-less design. Rated for 50V dc and 50V ac operating voltages. Operates reliably at up to 125°C maximum temperature.

Compact size of 3.2 mm x 1.6 mm x 0.9 mm for space savings. Suitable for time-constant, oscillation, resonance, filtering and audio circuits. Complies with RoHS standards ensuring environmental compliance. Provides low ESR and stable capacitance for reliable electrical performance.

Choose Panasonic ECHU1H332GX5 film capacitors for precise and durable performance in electronics manufacturing, power distribution, and audio circuit applications. Explore a wide range of Film Capacitors in EnvMart for compatible industrial and commercial electronic components.
