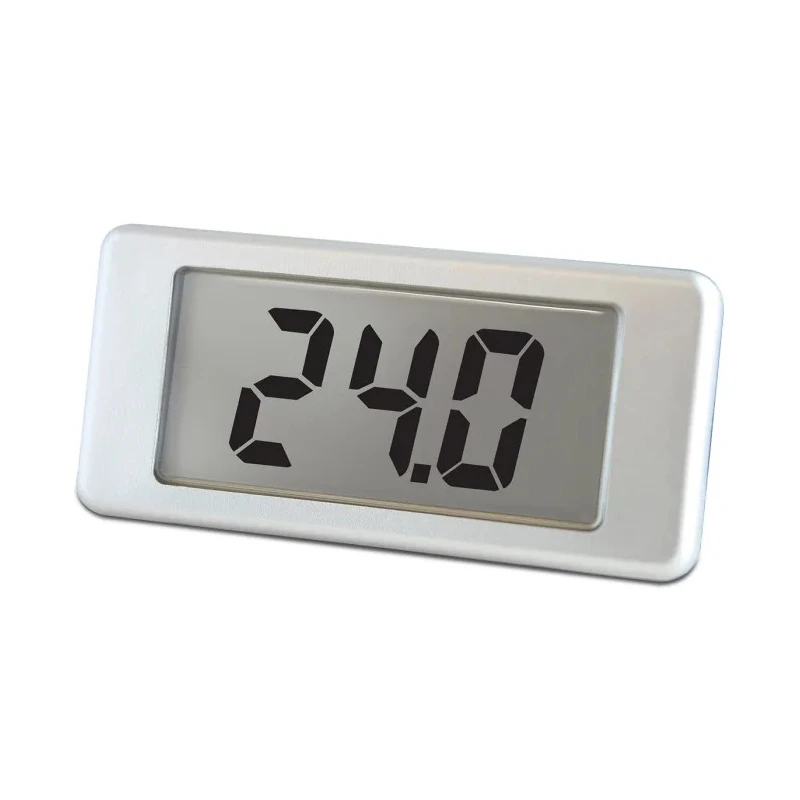

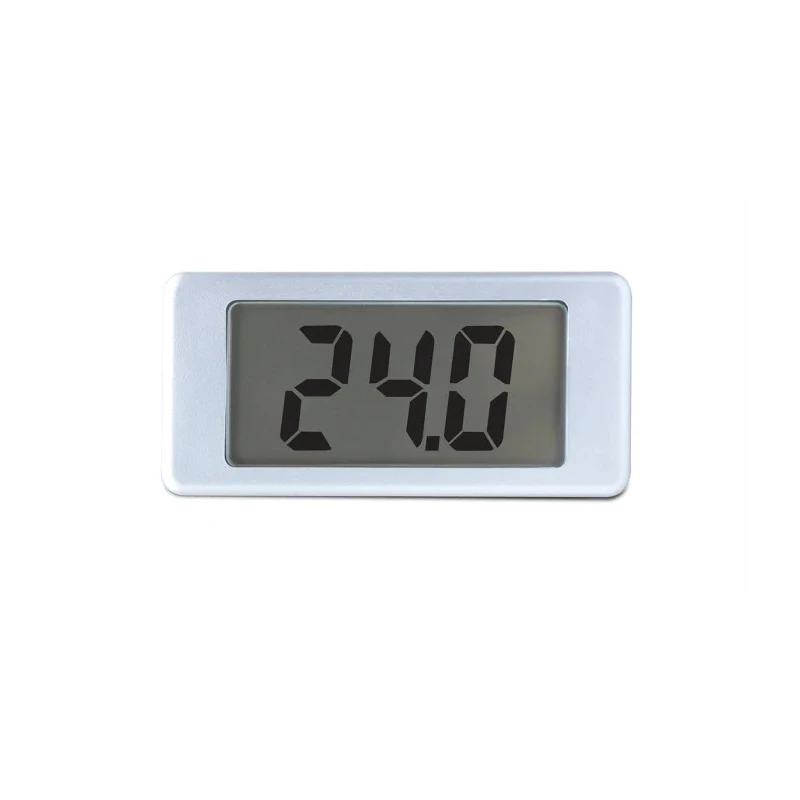

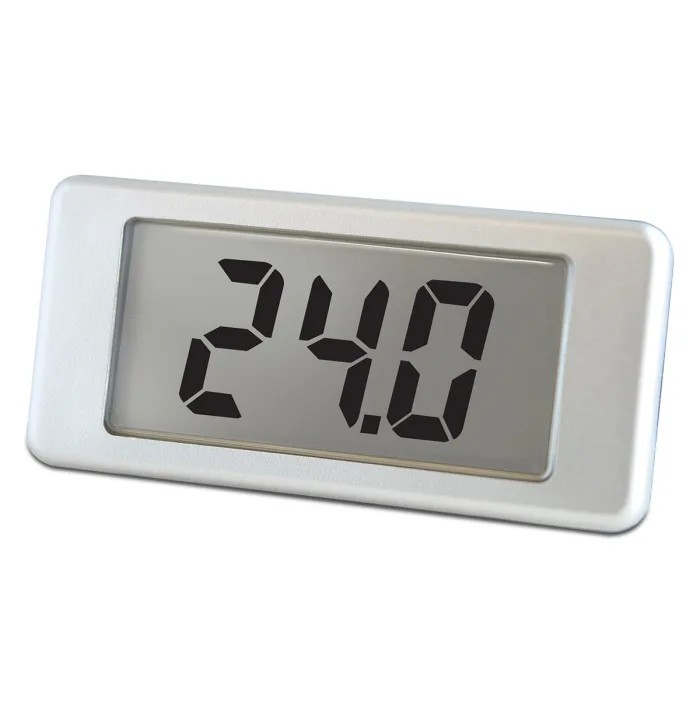

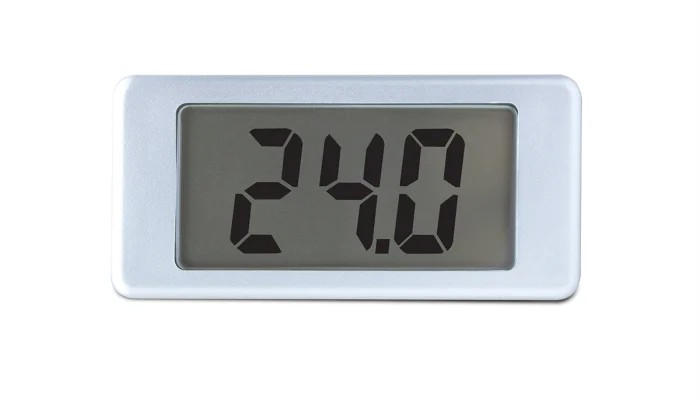

Lascar EMV 1200 Series 3-Digit Digital DC Voltmeter LCD Panel Meter ±0.4 % Accuracy EMV 1200-40

Free Delivery in India | Lowest Global Shipping Charges

Lascar EMV 1200 Series 3-Digit Digital DC Voltmeter LCD Panel Meter ±0.4 % Accuracy EMV 1200-40

Name: Lascar EMV 1200 Series 3-Digit Digital DC Voltmeter LCD Panel Meter ±0.4 % Accuracy EMV 1200-40
Brand: Lascar
SKU: 261471
Price: 55.52 USD
Availability: InStock



Category Digital Voltmeter Brand Lascar Condition New

Specifications

Country of Origin	China
Display Type	LCD
Brand	Lascar
Model	EMV 1200-40
Series	EMV 1200
Maximum Operating Temperature	50°C
Current Type	DC
Number Of Digits	3
Meter Accuracy	±0.4 %
Minimum Operating Temperature	0°C
Digit height	12.5mm
Cutout Height	12.5mm
Cutout Width	5.5mm
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007

Key Features

The unit features a 12.5 mm digit height for clear readability.
It operates from 3 VDC to 50 VDC supply voltage with full-scale readings from 4 VDC to 40 VDC.
Reverse polarity protection ensures safe operation in various environments.
Mounting requires a single 5.5 mm hole panel cutout for easy installation.
Includes splash-proof rubber seal for enhanced durability in ambient conditions.
Displays LO for voltages below 4 V and HI for voltages above 40 V, ensuring accurate indication.
Operates reliably within 0°C to 50°C operating temperature range.
Designed for industrial automation, process control, and electrical testing applications.

Product Description

Lascar EMV 1200-40 is a 3-digit digital voltmeter designed for accurate DC voltage measurement in industrial and process control applications. Featuring an LCD display with 12.5 mm digit height, this panel mount meter delivers ±0.4% accuracy for precise readings.

The voltmeter operates on a supply voltage from 3 VDC to 50 VDC and measures DC voltage in the range of 4 VDC to 40 VDC with a resolution of 200 mV. Reverse polarity protection is incorporated to prevent damage from incorrect wiring. It is installed easily by mounting the module through a single 5.5 mm diameter hole, secured by a nut and washer supplied with the unit.

A rubber seal is included to provide splash-proof protection, enhancing the unit's durability in harsh environments. The display shows "LO" when voltage falls below 4 V and "HI" when voltage exceeds 40 V, ensuring clear and valid readouts. The device operates reliably within a temperature range of 0°C to 50°C, making it suitable for a variety of industrial conditions.

Common applications include industrial automation systems, electrical testing, process control instrumentation, and monitoring in laboratory or manufacturing environments. The simple 2-wire operation and compact design make it an efficient solution for panel mounting requirements.

The unit features a 12.5 mm digit height for clear readability. It operates from 3 VDC to 50 VDC supply voltage with full-scale readings from 4 VDC to 40 VDC. Reverse polarity protection ensures safe operation in various environments.

Mounting requires a single 5.5 mm hole panel cutout for easy installation. Includes splash-proof rubber seal for enhanced durability in ambient conditions. Displays LO for voltages below 4 V and HI for voltages above 40 V, ensuring accurate indication.

Operates reliably within 0°C to 50°C operating temperature range. Designed for industrial automation, process control, and electrical testing applications. Explore our extensive selection of Digital Voltmeters and panel meters to find precise measurement solutions tailored for your technical requirements at EnvMart.
