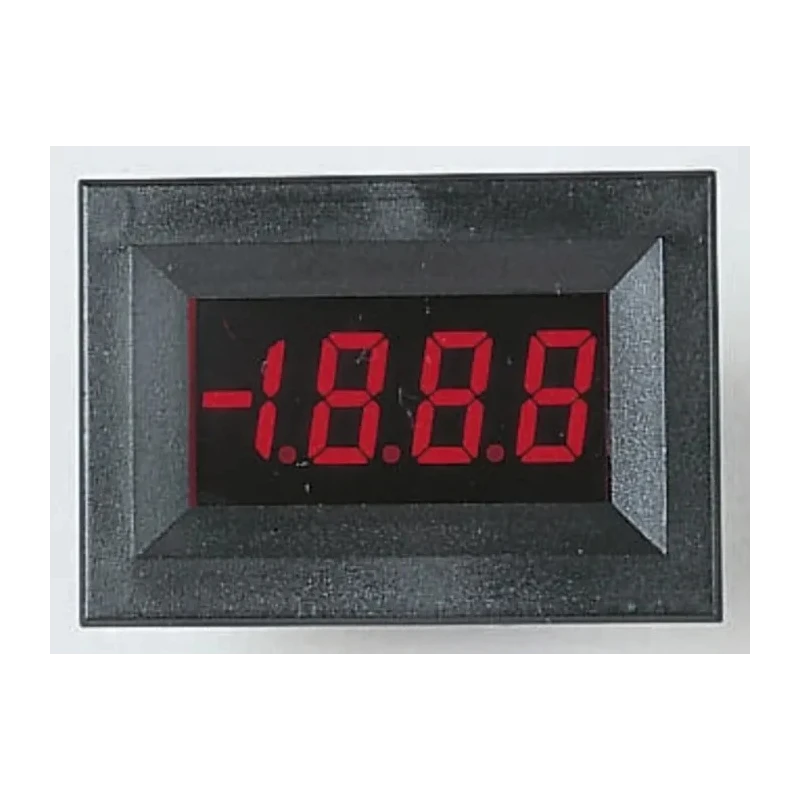

Murata Power Solutions Digital Voltmeter AC/DC, 3.5 Digit, 22 mm Cutout Height, 34 mm Cutout Width, Epoxy DMS-20PC-0-RL-C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Dimensions | H22.4 x W35.1 x D18.47mm |
| Model | DMS-20PC-0-RL-C |
| Depth | 17.45mm |
| Series | DMS-20PC |
| Maximum Operating Temperature | 60°C |
| Current Type | AC/DC |
| Cutout Height | 22mm |
| Cutout Width | 34mm |
| Panel cut-out | 34 x 22 mm |
| Depth behind panel | 17.45 mm |
Key Features
- Epoxy encapsulated 12-pin DIP ensures durability and protection.
- Measures both AC and DC currents with auto-polarity and over-range indication.
- Panel cutout dimensions are 34 mm width by 22 mm height for easy installation.
- Depth behind panel is 17.45 mm, with overall dimensions H22.4 x W35.1 x D18.47 mm.
- Maximum operating temperature of 60°C provides reliability in industrial environments.
- Includes optional splash-proof bezel with gasket for enhanced protection.
- LED digit height ranges from 8 to 10 mm for clear visibility.
- Display enable function permits power-down mode to save energy.
Product Description
Murata Power Solutions DMS-20PC-0-RL-C is a digital voltmeter designed for precise AC/DC voltage measurement in industrial and laboratory environments. It features a sealed sub-miniature epoxy encapsulated 12-pin DIP configuration, ensuring excellent durability and resistance to harsh conditions.
The unit offers a 3.5 digit LED display with digit heights of 8 to 10 mm for optimal readability. Installation is facilitated by a panel cutout size of 34 mm width by 22 mm height, with a depth behind the panel of 17.45 mm and total physical dimensions of H22.4 x W35.1 x D18.47 mm.
It supports both AC and DC current measurements with auto-polarity detection and over-range indication to safeguard the device and improve measurement accuracy. The maximum operating temperature is rated at 60°C, making it suitable for a wide range of industrial automation, process control, HVAC, manufacturing, and electrical testing applications.
An optional splash-proof bezel with gasket is available to enhance protection against environmental factors. The display enable function allows a power-down mode to conserve energy when not in use. This digital voltmeter is a reliable instrument for precise voltage monitoring in panel or PCB mounting installations.
Epoxy encapsulated 12-pin DIP for robust performance. Dual AC/DC measurement capability with auto-polarity. Clear LED display with 3.5 digit resolution and 8 to 10 mm digit height. Compact dimensions and standard panel cutout for flexible integration.
Over-range indication and display enable for extended functionality. Maximum operating temperature of 60°C ensures industrial suitability. Optional splash-proof bezel available for harsh environments. Widely applicable in industrial automation and electrical testing.
Explore more Digital Voltmeters and panel meters in EnvMart's Electronics & Electricals category for automated control and process systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures both AC and DC currents and features auto-polarity detection and over-range indication for improved measurement accuracy.
The overall dimensions are H22.4 mm x W35.1 mm x D18.47 mm, with a panel cutout size of 34 mm width by 22 mm height and a depth behind the panel of 17.45 mm.
The maximum operating temperature is rated at 60°C, making it suitable for various industrial environments.
It features a 3.5 digit LED display with digit heights ranging from 8 to 10 mm for optimal readability.
Yes, an optional splash-proof bezel with gasket is available to enhance protection against environmental factors.
This unit is designed for panel or PCB mounting installations, facilitated by its standard cutout dimensions.
It includes a display enable function that allows for a power-down mode to conserve energy when not in use.
The voltmeter is epoxy encapsulated, which ensures durability and protection against harsh conditions.
The depth behind the panel is 17.45 mm, allowing for flexible installation options.
Yes, it features over-range indication to safeguard the device and improve measurement accuracy.
This model is part of the DMS-20PC series from Murata Power Solutions.
The country of origin for this voltmeter is China.
