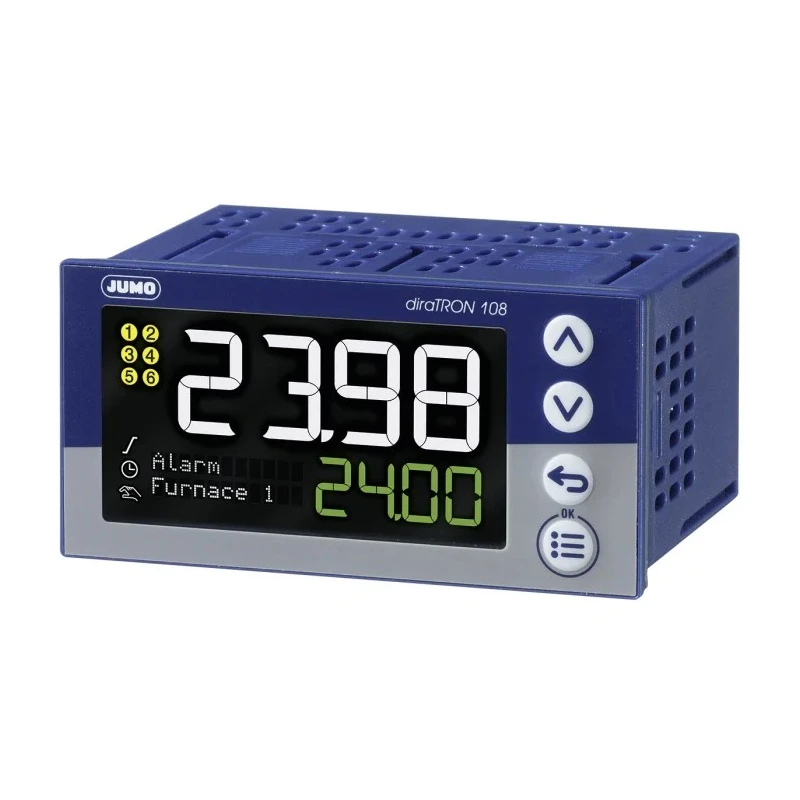

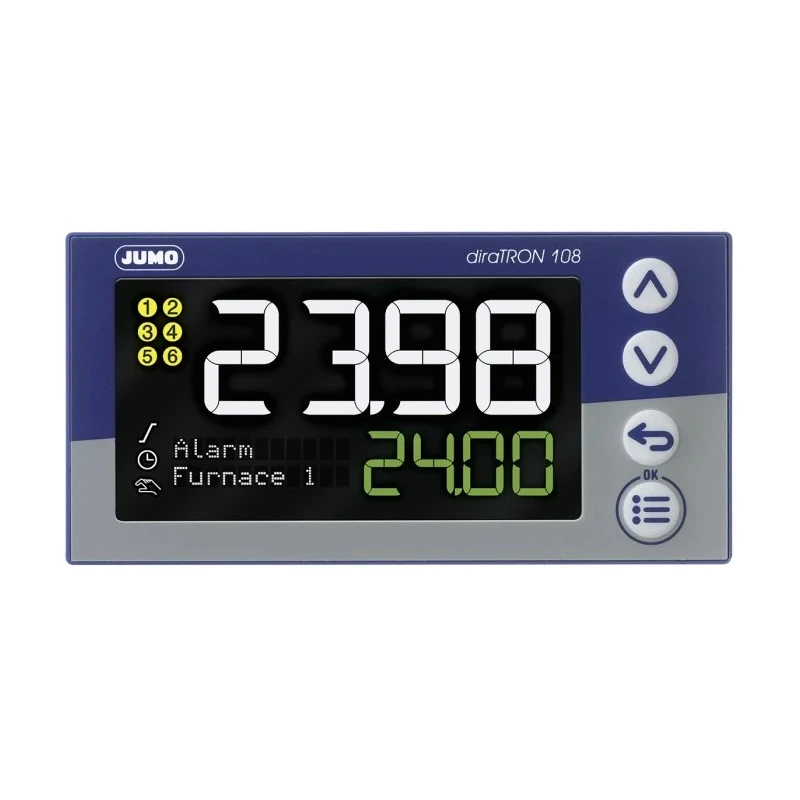

Jumo diraTRON Panel Mount PID Temperature Controller 3 Input 3 Output 2 Relay 30V ac/dc 702113/8-0000-25/000

Jumo 702113/8-0000-25/000 diraTRON Panel Mount PID Temperature Controller is a sophisticated process control instrument designed for precise temperature, pressure, and variable regulation in industrial environments.

This controller features 3 input channels that accept both analog and digital signals, and 3 outputs including 2 relay outputs, providing versatile control capabilities. It operates effectively within a supply voltage of 20 to 30 V AC/DC, ensuring flexibility for various installations.

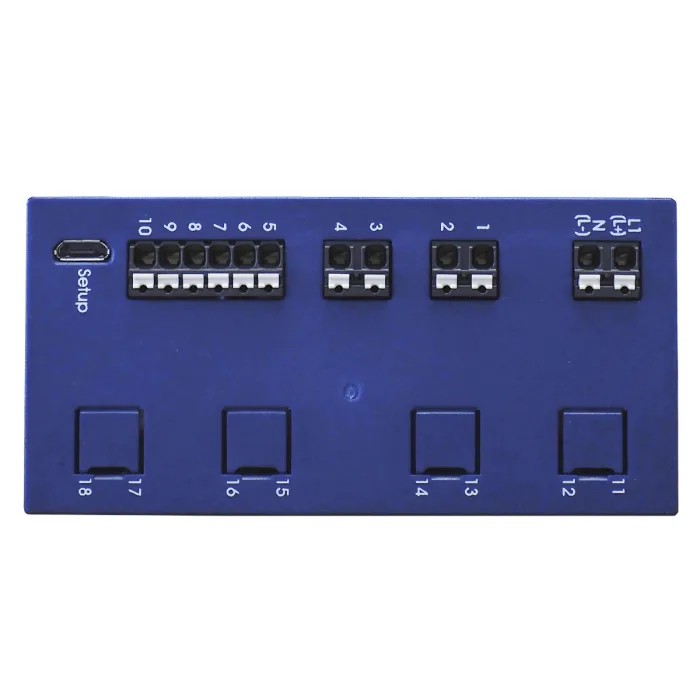

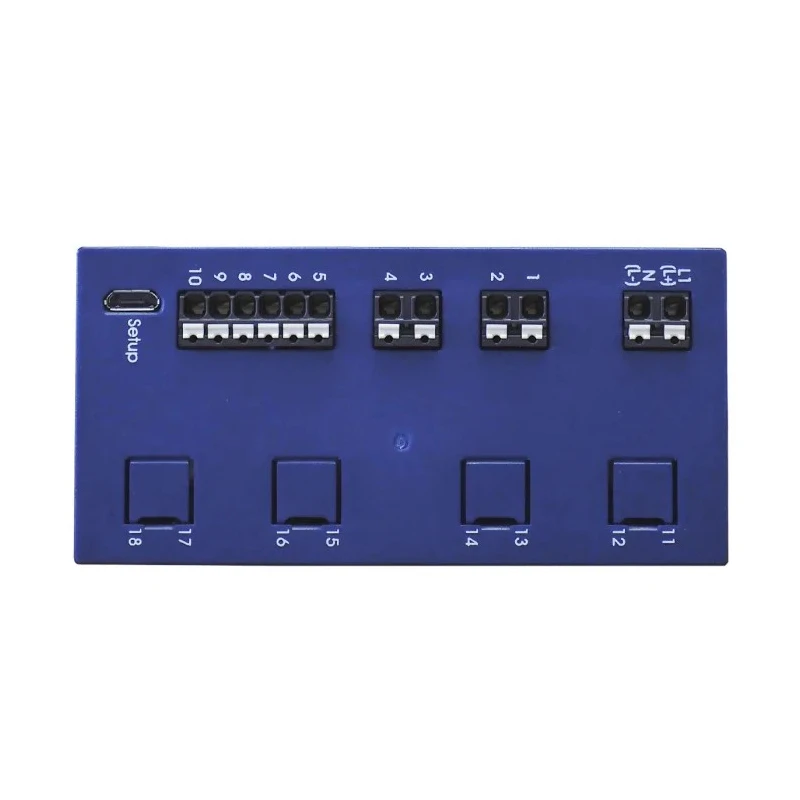

The device incorporates a spring cage terminal interface, facilitating fast and reliable wiring. A segmented display provides clear visualization of process parameters. The robust panel mount form factor has a compact length of 96 mm and a panel depth of 65 mm, suitable for integration into control panels.

Designed with an IP65 ingress rating on the front panel and IP20 at the terminals, the controller withstands challenging industrial conditions. It supports digital communication through RS485 using Modbus RTU protocol as a slave device, enabling seamless integration into networked automation systems.

Compliance with international safety and quality standards such as UL 61010-1, EN 61326-1, and DIN IEC 61554 ensures dependable operation in demanding applications. The controller includes advanced features like autotuning, setpoint changeover with four configurable setpoint values, ramp and timer functions, multiple limit value monitoring, a service counter, and configurable operator levels for enhanced usability.

Its applications span across temperature, pressure, and other process variable controls within industrial, laboratory, manufacturing, and HVAC sectors. Manufactured in Germany, it assures high-quality standards and durability.

Equipped with 2 relay outputs for reliable switching. Supports 3 input channels for analog and digital signals. Panel mount design with 96mm length and 65mm panel depth. Features spring cage terminals for secure wiring connections.

Digital communication via RS485 with Modbus RTU slave support. Wide operating temperature range from -10°C to 55°C. Display type is segmented for clear process monitoring. High ingress protection rated IP65 on front panel and IP20 at terminals.

Complies with UL, EN, DIN, and CAN/CSA safety and performance standards. Manufactured in Germany ensuring quality and durability.

This controller suits applications in industrial automation, process control, temperature management, and pressure regulation. Explore our range of Temperature Controllers and automation solutions at EnvMart for advanced control instrumentation.
