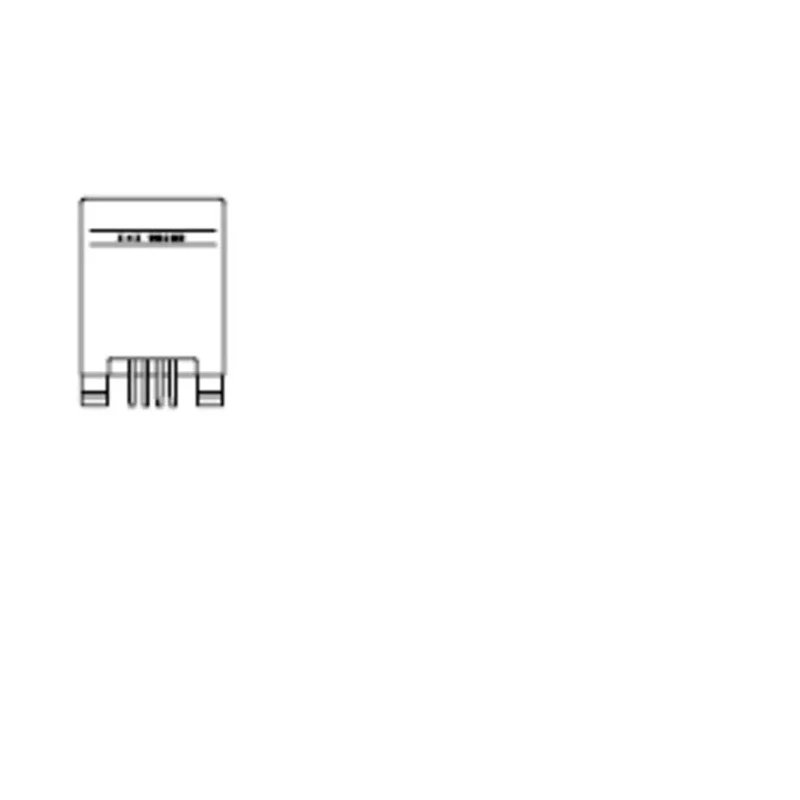

Molex RJ45 Connector Female Surface Mount Cat3 Unshielded Modular Jack Vertical 1 Port 4 Way

Molex RJ45 95522-2447 connector is a female RJ45 modular jack designed for surface mounting applications in network and telecom systems, supporting Cat3 LAN category and unshielded connections. It provides a reliable vertical orientation with one port and four ways, featuring solder termination for PCB assembly.

The connector contacts are made of copper alloy with tin plating, ensuring durable and efficient signal transmission. The product operates efficiently in harsh temperature conditions ranging from -40°C to 85°C, making it suitable for diverse industrial and commercial environments.

Its unshielded design allows use in settings where electromagnetic interference is minimal, and it is especially suited for Ethernet connections requiring Cat3 performance. The compact form factor with 16.64mm width, 11.18mm length, and 16.25mm depth fits well in constrained spaces.

This series does not include magnetic or LED features and carries no hazardous area certifications or specific industry approvals.

Typical applications include networking equipment, telecommunications devices, industrial control systems, and electronic instrumentation where reliable Ethernet connectivity is essential.

Features a modular jack connector type with female gender and vertical orientation. Supports one port and four ways for connectivity. Designed for surface mount installation with solder termination. Constructed with copper alloy contacts plated with tin for reliable connections.

Operates within a temperature range from -40°C to 85°C. Unshielded design reduces electromagnetic interference in suitable environments. Compact dimensions: 16.64mm width, 11.18mm length, and 16.25mm depth. No magnetic or LED components included.

No hazardous area certifications or standards approvals. Explore the full range of Molex Connectors on EnvMart to find suitable connectivity solutions for your electronic and industrial applications.
