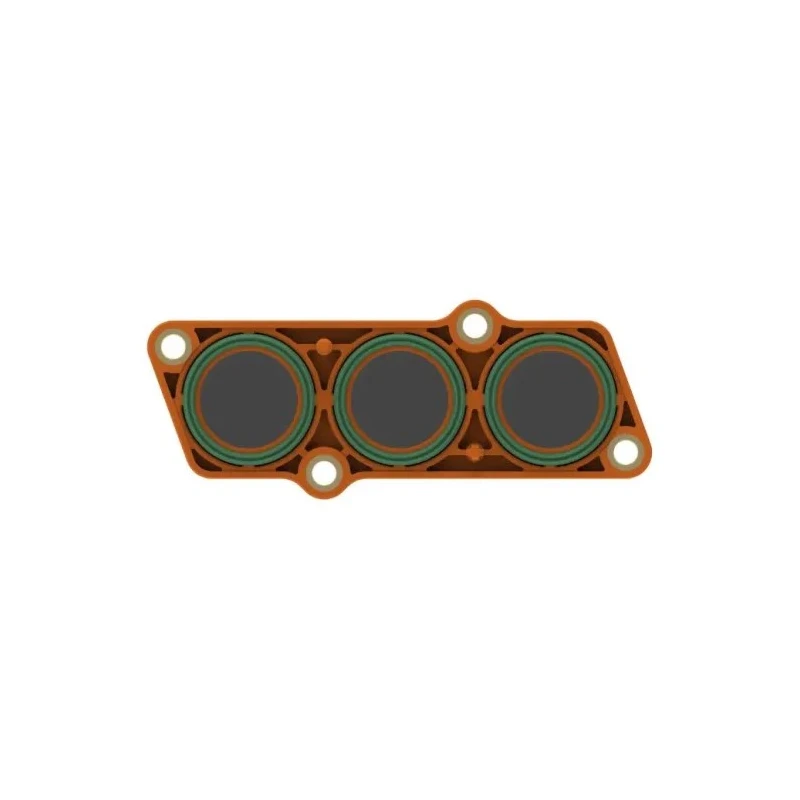

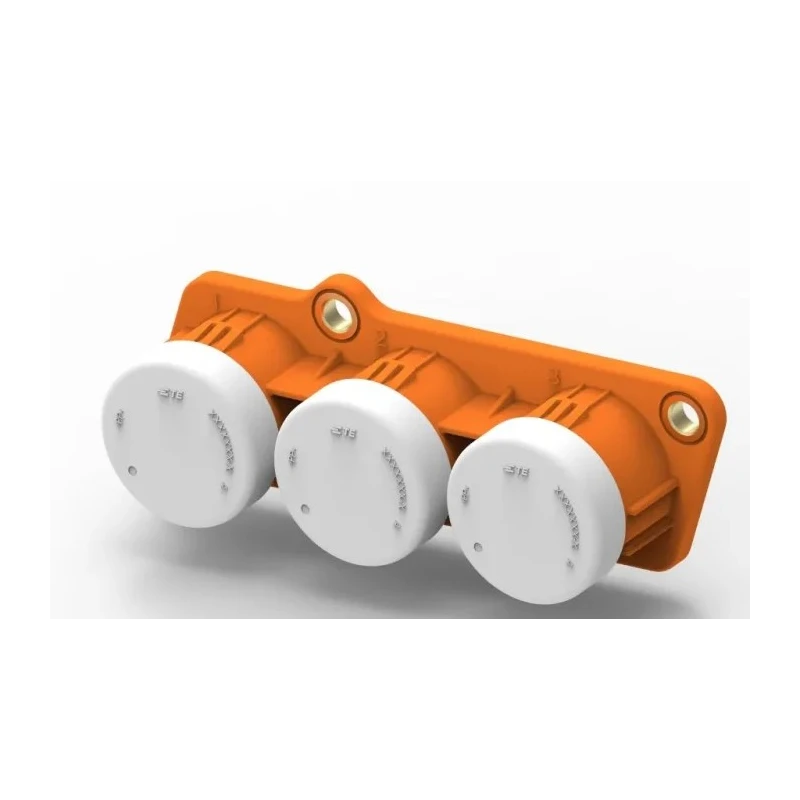

TE Connectivity IPT-HD EV Connector Male/Female Panel Mount 1500V 300A Straight Crimp Termination 2355146-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| Orientation | Straight |
| Current | 300A |
| Height | 53mm |
| Depth | 45.9mm |
| IP Rating | IP6K9K, IP69, IP67 |
| Width | 134mm |
| Mount Type | Panel |
| Series | IPT-HD |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Operating Voltage | 1500V |
| Number of Contacts | 3 |
| Contact Gender | Male/Female |
| Connector Gender | Male/Female |
| Better World Claim | Renewable Energy Solution |
Key Features
- Offers IP67, IP68 and IP6K9K rated sealing for harsh environments.
- Features 3 positions and 3 contacts with straight orientation.
- Equipped with crimp termination for reliable electrical connection.
- Operates reliably from -55°C to 105°C temperature range.
- Designed for MCU, e-axle, and e-motor applications in EVs.
- Orange color housing for clear identification.
- Constructed to withstand vibrations and extreme temperatures.
- Complies with LV216 and ISO standards for automotive connectors.
Product Description
TE Connectivity 2355146-1 IPT-HD EV Connector Male/Female is a robust power bolt high-voltage connector designed for demanding automotive and renewable energy vehicle applications. It features a 1500V operating voltage and a current rating of 300A, making it suitable for high power transmission in Motor Control Units (MCU), e-axles, and e-motors. The connector's straight crimp termination and panel mount style ensure secure and reliable connections in harsh environments.
Engineered to operate within a wide temperature range from -55°C to 105°C, this connector withstands extreme temperatures and engine-level vibrations. Its IP67, IP68, and IP6K9K sealing ratings offer excellent protection against dust, water ingress, and high-pressure washdowns, ensuring durability in demanding industrial and automotive settings.
The IPT-HD power bolt series comes with 3 rows and 3 contacts, designed to provide low contact resistance and enhanced shielding. Its orange housing provides easy identification for assembly and maintenance. The connector complies with international standards including LV216 and ISO, supporting quality and safety for electric vehicle power distribution.
The dimensions of the connector are 53mm in height, 134mm in width, and 45.9mm in depth. This product supports flexible wiring harness assemblies, offering easy machining for mounting holes to accommodate diverse applications in renewable energy vehicles and industrial equipment.
Manufactured in China, this TE Connectivity EV connector contributes to sustainable energy solutions by providing a reliable and efficient electrical connection for electric vehicle systems and other high-current applications.
Offers IP67, IP68 and IP6K9K rated sealing for harsh environments. Features 3 positions and 3 contacts with straight orientation. Equipped with crimp termination for reliable electrical connection. Operates reliably from -55°C to 105°C temperature range.
Connector dimensions: Height 53mm, Width 134mm, Depth 45.9mm. Designed for MCU, e-axle, and e-motor applications in EVs. Orange color housing for clear identification. Constructed to withstand vibrations and extreme temperatures.
Complies with LV216 and ISO standards for automotive connectors. Manufactured in China with a focus on renewable energy solutions. Explore our wide range of industrial electronic Connectors and power distribution solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a maximum voltage of 1500V, making it suitable for high power transmission applications.
This model has a current rating of 300A, allowing it to handle significant electrical loads efficiently.
It operates reliably within a temperature range of -55°C to 105°C, suitable for extreme environmental conditions.
The dimensions are 53mm in height, 134mm in width, and 45.9mm in depth, allowing for versatile installation options.
It features a crimp termination type, ensuring a secure and reliable electrical connection.
The connector has an IP67, IP68, and IP6K9K rating, providing excellent protection against dust and water ingress.
This model features 3 contacts, designed to provide low contact resistance and enhanced shielding.
It is designed for panel mounting, allowing for secure installation in various applications.
The housing is orange, which aids in clear identification during assembly and maintenance.
It is designed for Motor Control Units (MCU), e-axles, and e-motors in electric vehicles, supporting high-current applications.
The connector complies with LV216 and ISO standards for automotive connectors, ensuring quality and safety.
It is manufactured in China, contributing to sustainable energy solutions in electric vehicle systems.
