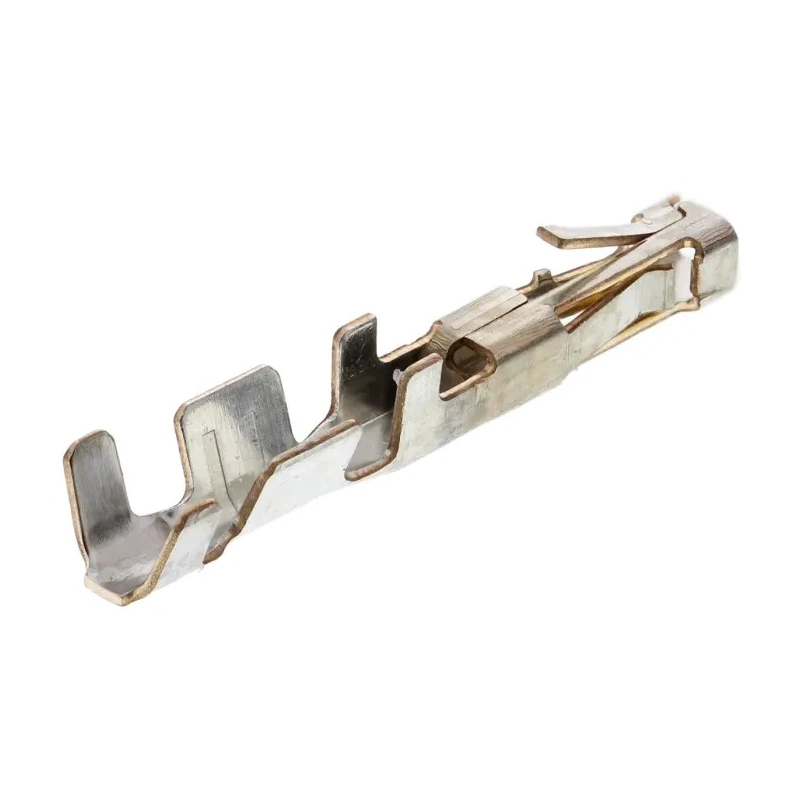

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794610-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794610-1

Name: TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794610-1
Brand: TE Connectivity
SKU: 209496
Price: 0.14 USD
Availability: InStock



Category Crimp Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	5A
Gender	Female
Contact Material	Phosphor Bronze
Series	Micro MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Micro MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

This crimp terminal is part of the Micro MATE-N-LOK series for connector housing compatibility.
It supports a maximum current of 5 amperes.
The contact plating is gold, enhancing conductivity and corrosion resistance.
Constructed using phosphor bronze for optimal strength and electrical performance.
The terminal operates reliably between -40°C and 105°C temperature ranges.
The termination type is crimp, ensuring secure wire connections.
Maximum contact resistance is 20 milliohms, ensuring low resistance connections.
Ideal for electronics, power, and connector applications in industrial and manufacturing sectors.

Product Description

TE Connectivity 1-794610-1 Female Crimp Terminal from the Micro MATE-N-LOK Series is engineered for precision electrical connections in demanding applications. Suitable for wire sizes ranging from 24 AWG minimum to 20 AWG maximum, this crimp contact terminal provides a secure and reliable interface within compatible Micro MATE-N-LOK connector housings.

Constructed from durable phosphor bronze, the contact offers excellent resilience and conductivity. The gold plating on the contact surfaces ensures outstanding corrosion resistance and optimal electrical conductivity, vital for stable signal and power transmission.

The terminal supports currents up to 5 amperes, making it suitable for a wide range of electronic components and power connector assemblies. It operates efficiently within temperature ranges from -40°C to 105°C, allowing use in varied environmental conditions encountered in industrial, manufacturing, and electronic equipment sectors.

The crimp termination method guarantees secure attachment of wires, reducing failure risks due to vibration or mechanical stress. Its low maximum contact resistance of 20 milliohms assures minimal energy loss and signal interference.

This crimp terminal belongs to the Micro MATE-N-LOK series compatible with their dedicated connector housings. Maximum current rating is 5A for reliable power delivery. Gold plating ensures excellent conductivity and corrosion resistance.

Phosphor bronze contact material provides strength and durability. Operational temperature range spans from -40°C to 105°C suitable for diverse applications. Designed for crimp termination to secure wire connections firmly.

Contact resistance is maintained at a low maximum of 20 milliohms. Ideal for industrial automation, electronics manufacturing, and power connector assemblies.

These features make TE Connectivity's 1-794610-1 crimp terminal a dependable choice for engineers and technicians seeking quality wire termination solutions. Explore more connector and Crimp Contact products in the Electronics & Electricals category at EnvMart.
