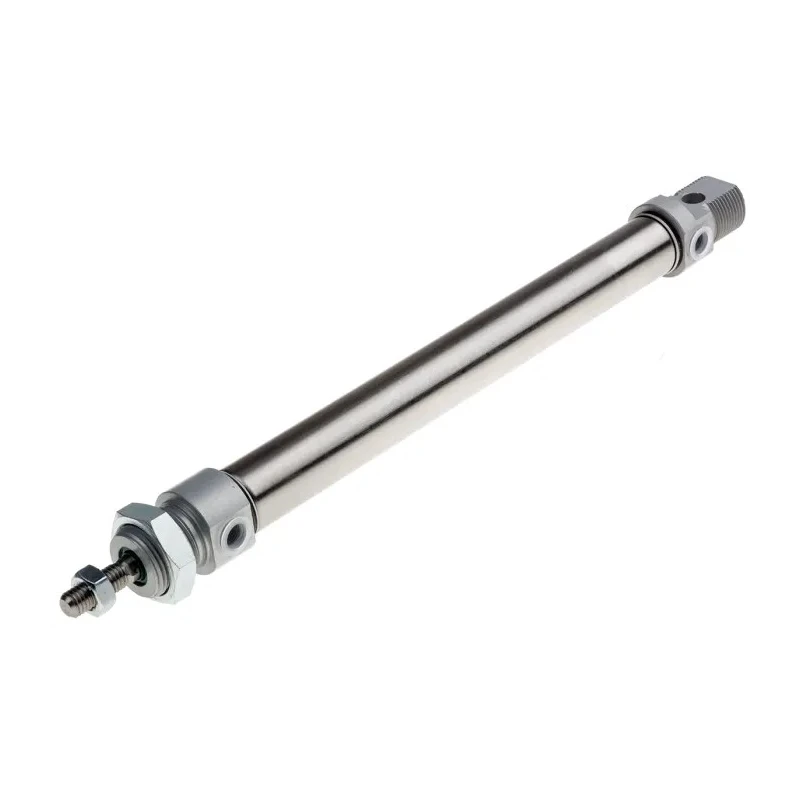

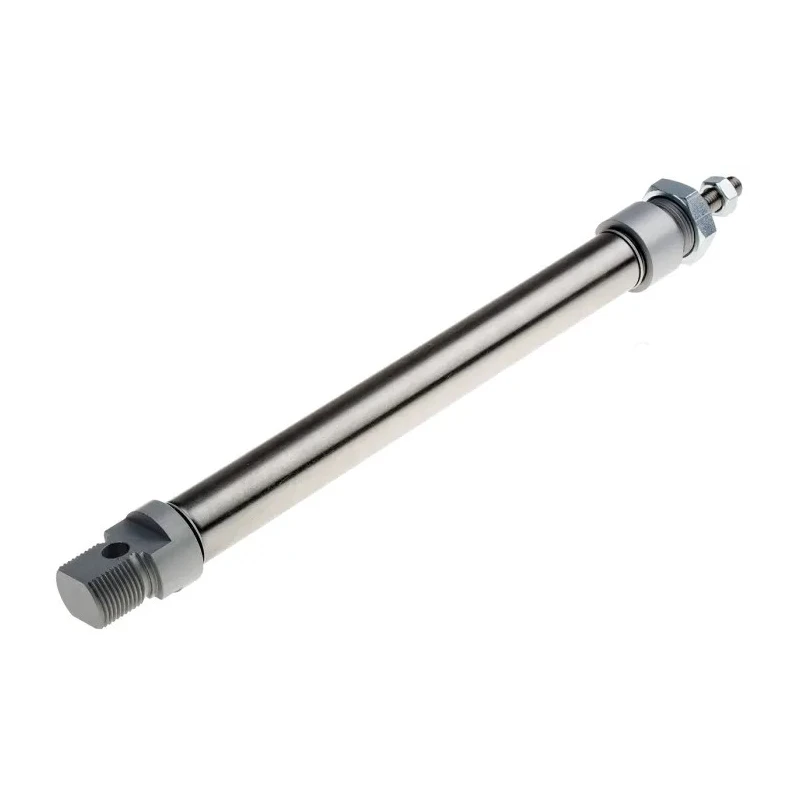

RS PRO Pneumatic Piston Rod Cylinder 20mm Bore 160mm Stroke ISO 6432 Series Double Acting 304-3858

RS PRO 304-3858 Pneumatic Piston Rod Cylinder features a 20mm bore diameter and 160mm stroke length compliant with ISO 6432 series standards. Engineered with a robust stainless steel body and stainless steel piston rod, this cylinder ensures exceptional durability and corrosion resistance for industrial pneumatic systems. Designed as a double acting cylinder, it provides efficient bidirectional operation, suitable for various fluid power applications in manufacturing, automation, and processing industries.

The cylinder employs a foot mount type to allow stable installation and is equipped with buffer cushioning to absorb shocks at the end of strokes, enhancing longevity and performance. It is optimized for operational pressures up to 10 bar, with an ambient operating temperature range from -20°C to +80°C, making it adaptable for diverse environmental conditions.

Material specifications include an AISI 304 stainless steel body and AISI 303 stainless steel piston rod, further supported by a sintered bronze nose bearing, pre-lubricated NBR seals, and anodized aluminium end caps. This premium construction enables the cylinder to withstand harsh pneumatic environments without lubrication requirements for extended maintenance intervals.

The product is supplied complete with a nose nut and piston rod nut to facilitate secure and reliable fitting. It is intended for use with compressed air that is filtered and may be lubricated or non-lubricated, providing versatile application potential in industrial automation, manufacturing equipment, and pneumatic tooling.

This pneumatic piston rod cylinder is ideal for industrial, laboratory, manufacturing, and fluid power systems that demand high precision, reliability, and operational endurance. Being designed and manufactured in Italy, it reflects stringent quality standards and robust engineering.

ISO 6432 series stainless steel cylinder for high durability and corrosion resistance. Double acting operation suitable for compressed air applications. Foot mount type configuration with buffer cushioning for shock absorption.

Stainless steel body and piston rod for long operational life in demanding environments. Operating pressure up to 10 bar with ambient temperature range from -20°C to +80°C. Includes nose nut and piston rod nut for secure installation.

Compatible with filtered, lubricated, or non-lubricated compressed air mediums. Explore the Pneumatic Piston Rod Cylinders category at EnvMart for more high-performance pneumatic components.
