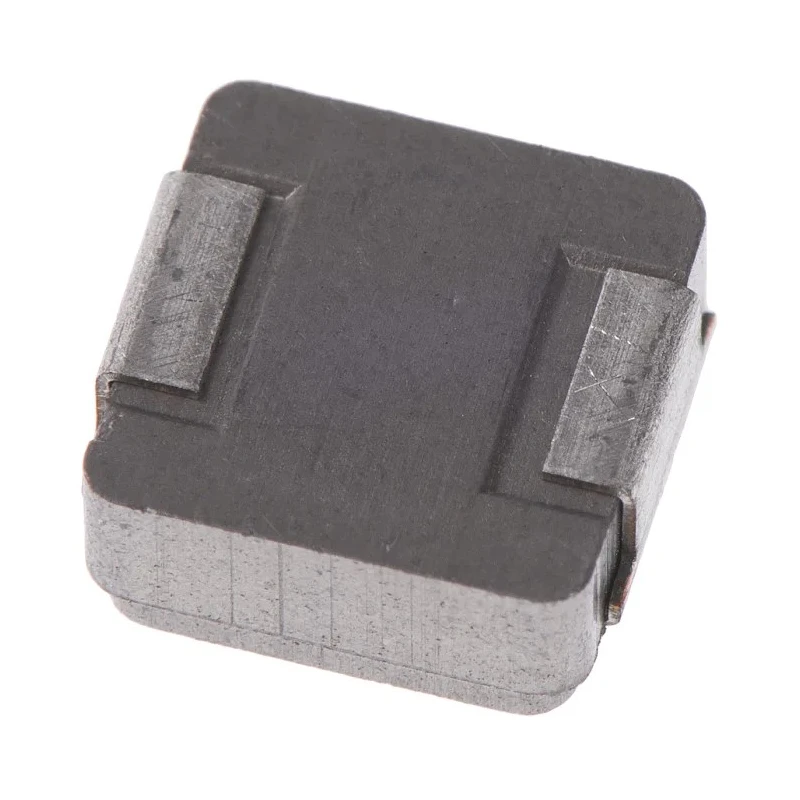

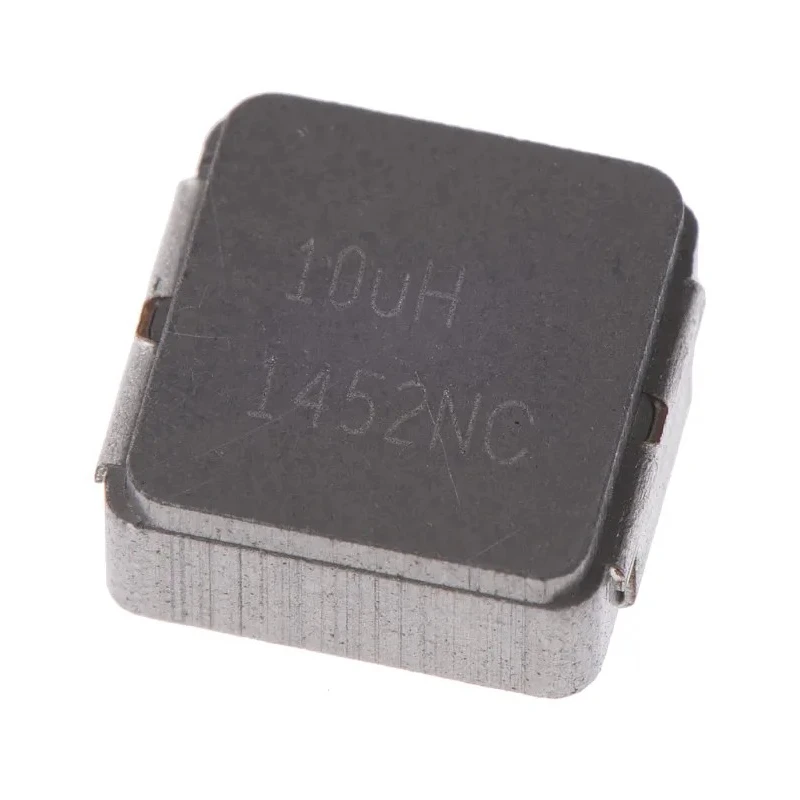

Vishay 2225 Shielded Wirewound Surface Mount Inductor Metal Composite Core 10 µH ±20 % 3A Idc IHLP2525CZER100M01

Free Delivery in India | Lowest Global Shipping Charges

Vishay 2225 Shielded Wirewound Surface Mount Inductor Metal Composite Core 10 µH ±20 % 3A Idc IHLP2525CZER100M01

Name: Vishay 2225 Shielded Wirewound Surface Mount Inductor Metal Composite Core 10 µH ±20 % 3A Idc IHLP2525CZER100M01
Brand: Vishay
SKU: 144699
Price: 1.22 USD
Availability: InStock



Category Inductor Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	3mm
Length	6.86mm
Model	IHLP2525CZER100M01
Depth	6.47mm
Series	IHLP
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Metal Composite
Inductance	10μH
Standards/Approvals	RoHS
Package/Case	2225
Maximum DC Current	3A
Pin Count	2
Maximum DC Resistance	1.7mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	5.0MHz
Inductor Construction	Wirewound

Key Features

Features a metal composite core for enhanced magnetic shielding.
Rated for a maximum DC current of 3 amperes.
Package size 2225 with dimensions 6.86 mm length, 6.47 mm depth, and 3 mm height.
Offers low DC resistance of 1.7 milliohms ensuring minimal power loss.
Suitable for operating temperatures ranging from -55°C to 125°C.
Moulded construction with solder termination suitable for surface mount technology.
Inductor construction is wirewound for reliable inductance performance.
Maximum self-resonant frequency of 5.0 MHz enabling usage in high frequency circuits.

Product Description

Vishay IHLP2525CZER100M01 is a precision wirewound surface mount inductor from the IHLP 2225 series featuring a metal composite core. It provides an inductance of 10 µH with a tolerance of ±20%, making it suitable for applications requiring stable inductance values.

The inductor supports a maximum DC current of 3 amperes and exhibits a low DC resistance of only 1.7 milliohms, thus ensuring efficient current flow with minimal losses. Its compact package size 2225 corresponds to length 6.86 mm, depth 6.47 mm, and a height of 3 mm, making it ideal for space-constrained PCB designs.

This component is magnetically shielded with a moulded wirewound construction and solder termination style, which offers high reliability in assembly and operation. The inductor is rated for operation from -55°C up to 125°C, supporting use in a wide range of environmental conditions.

With a maximum self-resonant frequency of 5.0 MHz, the IHLP2525CZER100M01 is capable of functioning effectively in high frequency power circuits including filtering and energy storage for DC-DC converters. It meets RoHS compliance ensuring it meets environmental and safety standards.

This component is commonly used in industrial, consumer electronics, telecommunications, and automotive power management applications where a compact, high current, and shielded inductor is required.

Metal composite core enhances magnetic shielding to minimize EMI. Wirewound construction provides stable inductance over temperature variations. Low profile 2225 package supports miniaturized PCB assembly. Wide operating temperature range for reliability in harsh environments.

Ideal for filtering supply voltages and DC-DC converter circuits. RoHS compliant for environmentally safe use.

EnvMart offers this Vishay IHLP2525CZER100M01 wirewound inductor for various industrial and electronics applications. Explore more surface mount Inductors and other electronic components on EnvMart.
