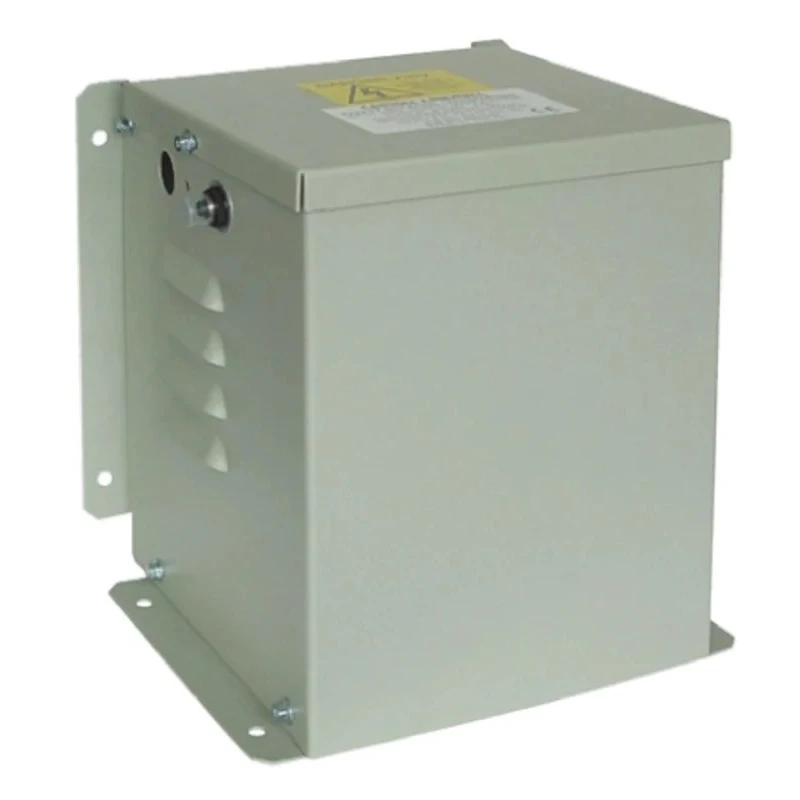

Carroll & Meynell Site Transformer 230 V AC Primary, 110 V AC Secondary, 1.65 kVA, 15 A Output, Wall Mount CM3300WM0

Carroll & Meynell CM3300WM0 Site Transformer is a robust, single-phase wall-mounted safety isolating transformer built for industrial electrical distribution delivering 1.65 kVA power at 230 V AC primary input and 110 V AC secondary output.

This transformer is ideal for use in industrial workshops, garages, and other fixed installations where reliable and safe power isolation is critical to protect power tools and equipment.

The enclosure is constructed from durable sheet steel with an IP22 rating, designed for wall mounting. The transformer features a double-wound secondary with a centre tap to earth, significantly reducing shock hazards.

Safety is enhanced by a resettable thermal cut-out trip in the primary circuit which prevents overload conditions, along with a thermal safety overload fuse embedded directly into the primary winding to ensure maximum protection.

Installation is facilitated by 20mm conduit entries on both sides of the enclosure, allowing flexible wiring options. The unit operates efficiently across standard mains frequencies from 50 Hz to 60 Hz.

The product conforms to BSEN 61558-2-23 standards, assuring compliance with recognized safety and performance benchmarks.

With compact dimensions of 240mm length, 200mm width, and 255mm depth, and a weight of 18 kg, this site transformer offers an excellent balance of size and capability for industrial use cases including manufacturing plants, construction sites, and commercial electrical maintenance.

Single phase transformer with 230 V AC primary and 110 V AC secondary voltages. 1.65 kVA power rating with a 15 A output current capacity. IP22 sheet steel wall-mount enclosure for durability and safety. Double wound secondary with a centre tap earthed to minimize shock risk.

Resettable thermal cut-out trip and thermal safety overload fuse integrated for protection. 20mm conduit entries on both sides for versatile installation. Compliance with BSEN 61558-2-23 standard ensures product reliability.

Manufactured in the United Kingdom ensuring high build quality.

This Carroll & Meynell Site Transformer is tailored for demanding industrial, construction, and workshop environments requiring reliable and safe power supply isolation. For more industrial power distribution equipment, explore our Electronics & Electricals category at EnvMart.
