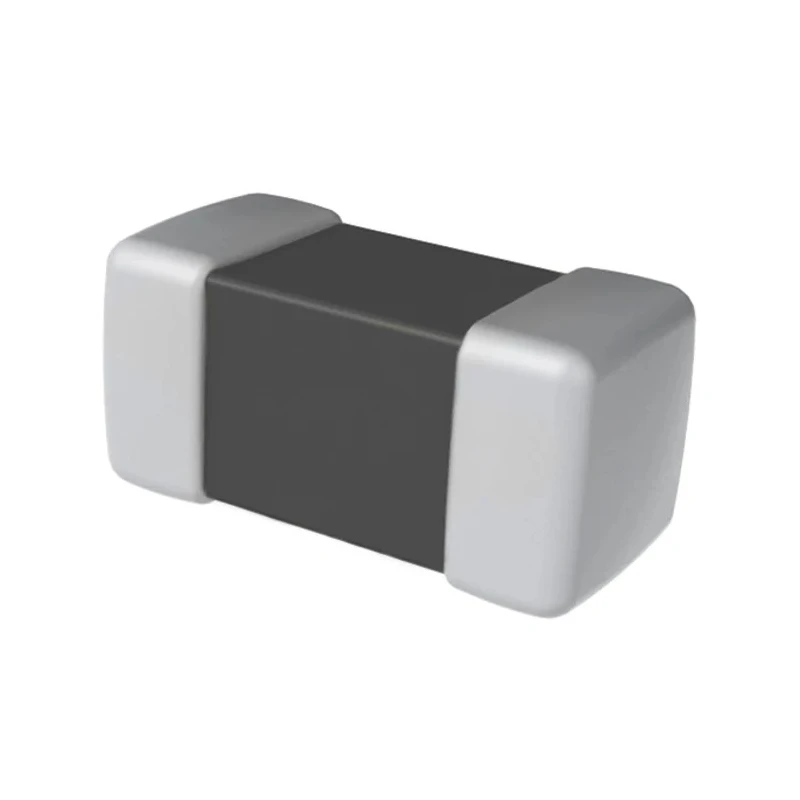

KEMET Ferrite Bead Chip, Tape & Reel, 0.063 mm, 56.1Ω at 25 MHz, 6A, High Impedance, Z1806C720APWST

KEMET Z1806C720APWST Ferrite Bead Chip, Tape & Reel, 0.063 mm, delivers high impedance for EMI filtering at frequencies up to 1 GHz. This component is designed to suppress radiated noise on power lines, making it ideal for use in circuit designs requiring low power consumption and waveform correction for digital signals. The Z-PWZ series supports applications across industrial, laboratory, and digital mobile equipment environments.

Provides 56.1Ω impedance at 25 MHz for superior EMI filtering. Compact 0.063 mm chip bead form designed for space-constrained PCBs. Rated for 6A current with a maximum DC resistance of 0.45Ω. Operates reliably across −40°C to +125°C temperature range.

Supplied in Tape & Reel packaging for automated placement. RoHS and REACH compliant, suitable for industrial and mobile applications. Material: Ferrite, high impedance for power line filtering. Automotive standard not applicable, focused on digital signal correction.

Engineered with a wire wound structure and low stray capacitance, this chip bead delivers excellent reliability and resistance to high energy, ensuring stability in demanding environments. Impedance values at multiple frequencies (72Ω at 100 MHz, 78.3Ω at 300 MHz, 78.9Ω at 1 GHz) allow flexible noise suppression across a wide spectrum.

Ideal for industrial, electronics manufacturing, laboratory, and high-frequency digital mobile applications. The Tape & Reel packaging enhances compatibility with automated production lines, ensuring high throughput.

Experience KEMET’s technical excellence in EMI filtering. Browse Ferrite Beads and related EMI Filters on EnvMart for comprehensive passive component solutions.
