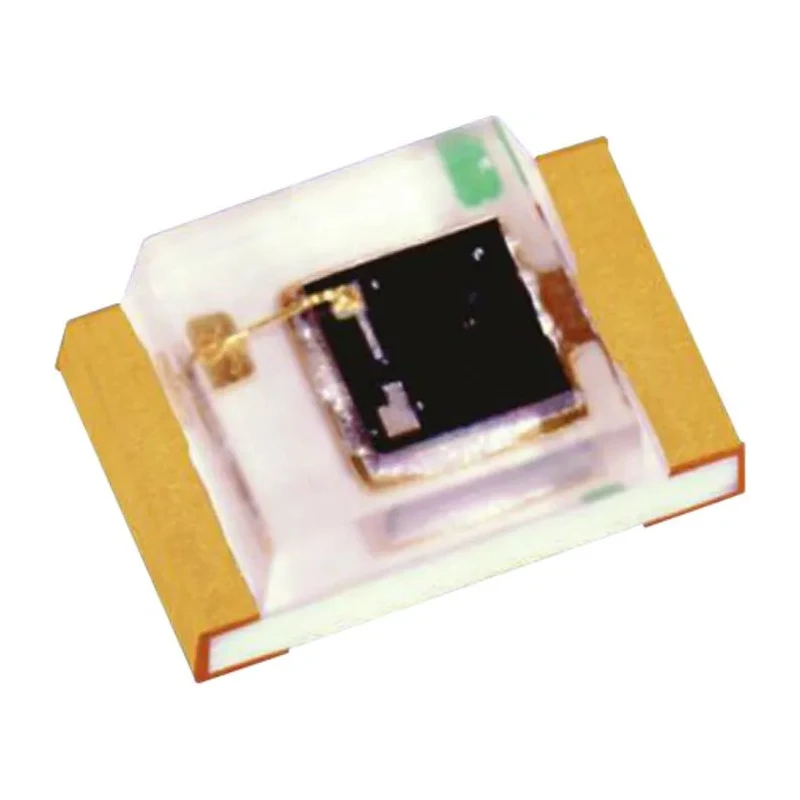

ams OSRAM Phototransistor SFH 3710-3/4 120° Infrared Ultraviolet Visible Light Surface Mount 2-Pin SFH 3710-3/4
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Height | 0.9mm |
| Length | 2.1mm |
| Model | SFH 3710-3/4 |
| Packaging | Tape & Reel |
| Width | 0.75mm |
| Mount Type | Surface |
| Series | SFH 3710 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | JEDEC J-STD-020D.01 |
| Number of Pins | 2 |
| Peak Wavelength | 570nm |
| Spectrums Detected | Infrared, Ultraviolet, Visible Light |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 20mA |
| Maximum Light Current | 570μA |
| Maximum Dark Current | 3nA |
| Collector Emitter Voltage | 5.5V |
| Emitter Collector Voltage | 0.5V |
| HSDL-9001 visible light photodiodeBrand | Avago Technologies |
Key Features
- Detects infrared, ultraviolet, and visible light spectrums effectively.
- Features a wide 120° angle of half sensitivity for broad detection coverage.
- Maximum light current up to 570μA ensures high sensitivity.
- Compact surface mount design with 2 pins enables easy PCB integration.
- Operating temperature ranges from -40°C to 85°C for reliable performance.
- Complies with JEDEC J-STD-020D.01 standards for durability and quality.
- Suitable for applications such as ambient light sensing and backlight dimming control.
- Small dimensions of 2.1mm length, 0.75mm width, and 0.9mm height optimize space usage.
Product Description
ams OSRAM SFH 3710-3/4 is a high-sensitivity phototransistor designed for detecting infrared, ultraviolet, and visible light within a 120° angle of half sensitivity. This surface-mount device features a 2-pin package suitable for compact PCB layouts in industrial and electronic applications.
With a maximum light current of 570μA and minimal dark current of 3nA, it supports precise ambient light sensing, exposure measurement, and control circuits for backlight dimming. Its wide temperature range (-40°C to 85°C) ensures stable operation in diverse environmental conditions.
The phototransistor complies with JEDEC J-STD-020D.01 standards and has compact dimensions (2.1mm length, 0.75mm width, 0.9mm height), making it ideal for integration into modern electronic devices. Its low emitter-collector voltage of 0.5V and collector-emitter voltage of 5.5V support efficient circuit design.
Common industrial and commercial uses include ambient light detection, exposure meters for daylight and artificial light, and sensor systems for display backlight control and drive circuits. This device is part of the SFH 3710 series, known for improved V lambda characteristics matching human eye sensitivity.
Detects infrared, ultraviolet, and visible light spectrums effectively. Wide 120° angle of half sensitivity ensures broad detection coverage. Compact surface mount 2-pin package for easy PCB integration. Operating temperature range from -40°C to 85°C for diverse environments.
High maximum light current of 570μA for precise sensing. Complies with JEDEC J-STD-020D.01 for reliability and quality. Small dimensions optimize space in electronic designs. Used in ambient light sensors, backlight dimming, and exposure measurement applications.
Explore more products in the Phototransistors category for enhanced electronic component solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum light current of this phototransistor is 570μA, ensuring high sensitivity for light detection.
It features a wide angle of half sensitivity of 120°, providing broad detection coverage for various light spectrums.
The SFH 3710-3/4 can effectively detect infrared, ultraviolet, and visible light spectrums.
This phototransistor has compact dimensions of 2.1mm in length, 0.75mm in width, and 0.9mm in height.
It operates within a temperature range of -40°C to 85°C, suitable for diverse environmental conditions.
This model is packaged as a surface mount device with a 2-pin configuration, facilitating easy PCB integration.
The collector-emitter voltage for this phototransistor is rated at 5.5V, supporting efficient circuit design.
It complies with JEDEC J-STD-020D.01 standards, ensuring reliability and quality in performance.
The maximum dark current is specified at 3nA, allowing for precise ambient light sensing.
This phototransistor is suitable for applications such as ambient light sensing, exposure measurement, and backlight dimming control.
The peak wavelength for the SFH 3710-3/4 is 570nm, aligning with human eye sensitivity for improved performance.
This model features a single channel, making it suitable for various sensing applications.
