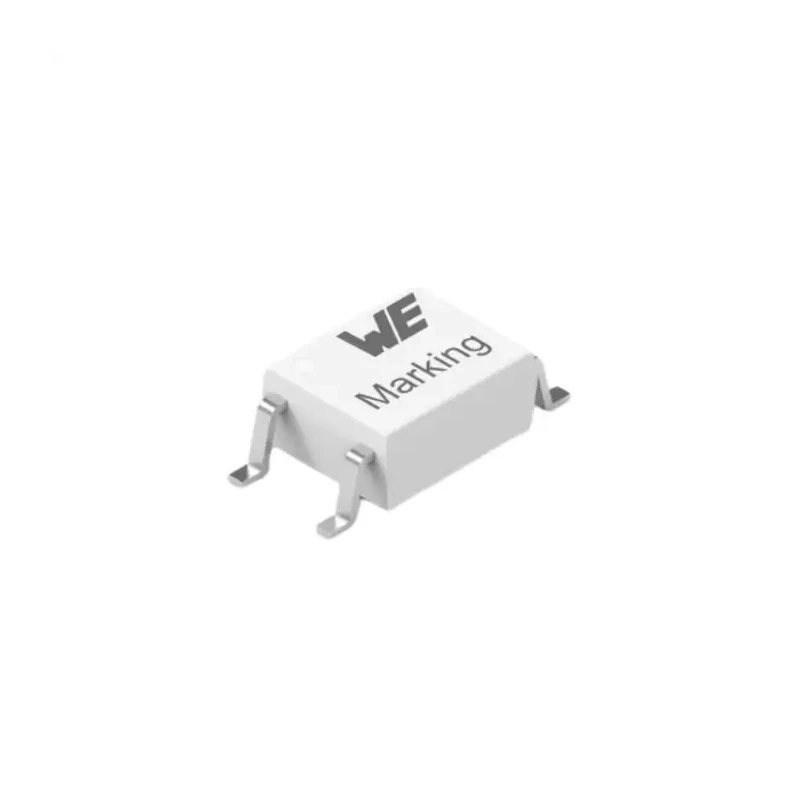

Wurth Elektronik DC Input Phototransistor Surface Mount 4-Pin SOP 1.4V Forward Voltage 60mA Input Current 140356145000

Wurth Elektronik 140356145000 DC Input Phototransistor is a surface mount optoelectronic component housed in a 4-Pin SOP package. It is designed to provide reliable and efficient optical signal transmission in a wide range of industrial and electronic applications.

This phototransistor supports a typical forward voltage of 1.4V and can handle input current up to 60mA, making it suitable for various low power input circuits. Its fast switching speeds are characterized by a typical rise time of 3μs and fall time of 4μs, enabling high-frequency operation.

The device operates safely within a temperature range of -55°C to 110°C, offering robust performance even in harsh environmental conditions. It boasts a current transfer ratio (CTR) between 50% and 600%, providing variable signal amplification capabilities depending on application needs.

Wurth Elektronik's phototransistor features an isolation voltage of up to 3750Vrms, ensuring safe electrical isolation in sensitive circuits. The component complies with UL standards and is RoHS compliant, with a halogen-free plastic housing finished in white, suitable for tape and reel packaging.

Common industrial uses include optocouplers in electronics equipment, power and connector modules, signal isolation in control systems, and circuits requiring high voltage isolation and fast response.

Operates with a DC input current up to 60mA at maximum forward voltage of 1.4V. Typical rise time of 3 microseconds and fall time of 4 microseconds for fast switching. Current transfer ratio ranges from minimum 50% to maximum 600% for efficient signal amplification.

Wide operating temperature range from -55°C up to 110°C ensures reliable performance. Isolation voltage rated at 3750 Vrms for high voltage safety in circuits. Compliant with UL standards and RoHS directive, halogen free construction.

Plastic housing in white color providing surface mount package type SOP4. Single channel phototransistor designed for optocoupler applications. Explore our extensive selection of Phototransistors and optoelectronic components at EnvMart for your industrial, laboratory, and manufacturing needs.
