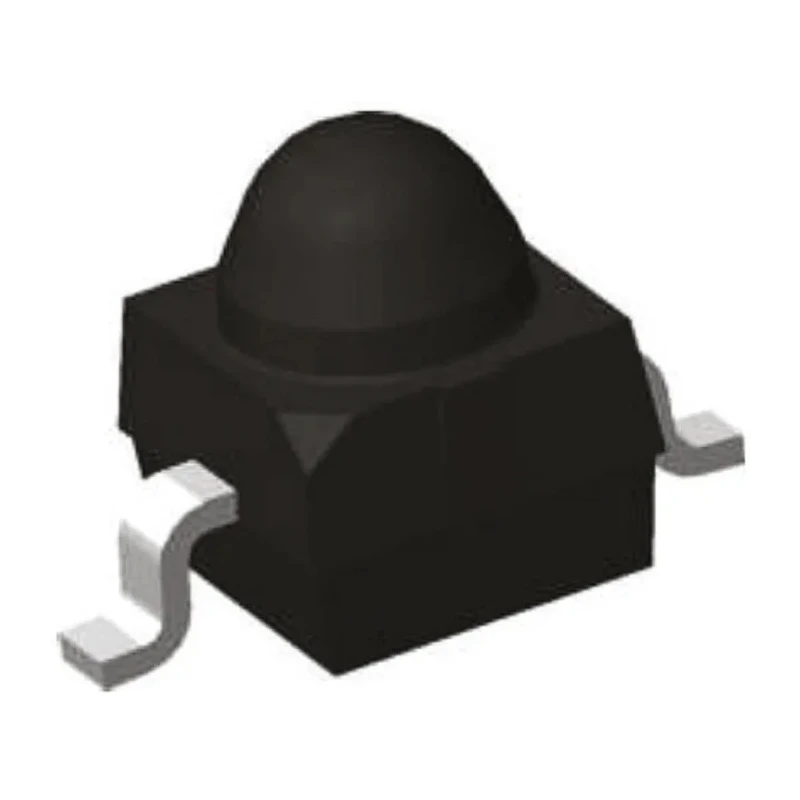

Vishay 30 ° Infrared Phototransistor Surface 2-Pin Subminiature Package TEMT1020
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.9mm |
| Brand | Vishay |
| Height | 2.7mm |
| Length | 2.5mm |
| Model | TEMT1020 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | TEMT1020 |
| Maximum Operating Temperature | 85°C |
| Package Type | Subminiature |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Rise Time | 2μs |
| Typical Fall Time | 2.3μs |
| Peak Wavelength | 880nm |
| Spectrums Detected | Infrared |
| Angle of half intensity | 15° |
| Angle of Half Sensitivity | 30 ° |
| Collector Current | 50mA |
| Maximum Light Current | 7000μA |
| Maximum Dark Current | 200nA |
| Collector Emitter Voltage | 70V |
| Emitter Collector Voltage | 5V |
Key Features
- Detects infrared spectrum with peak wavelength at 880 nm.
- Fast response times with typical rise time of 2 μs and fall time of 2.3 μs.
- Maximum collector current of 50 mA and maximum light current of 7000 μA.
- Operates reliably between -40°C and 85°C ambient temperature.
- Compact dimensions with length 2.5 mm, width 2 mm and height 2.7 mm.
- Surface mount package with 2 pins in a black plastic subminiature housing.
- RoHS compliant and suitable for daylight blocking applications.
- Typical dark current limited to 200 nA for low noise performance.
Product Description
Vishay TEMT1020 is a high-sensitivity infrared phototransistor specifically designed in a subminiature surface mount (SMD) package. It features a black plastic housing with a daylight blocking filter, ensuring reliability in daylight and IR detection applications. This phototransistor detects infrared light with a peak wavelength of 880 nm and offers fast electrical response times, with a typical rise time of 2 μs and fall time of 2.3 μs.
The device has a maximum collector current rating of 50 mA and can handle a maximum light current of 7000 μA, suitable for precise light measurement and switching applications. Its operating temperature range spans from -40°C to 85°C, making it robust for various industrial and commercial environments.
Compact in size, the TEMT1020 measures 2.5 mm in length, 2 mm in width, and 2.7 mm in height, with 2 surface mount pins for easy PCB assembly. The device maintains a low dark current of 200 nA to minimize noise in sensitive detection circuits and complies with RoHS standards for environmental safety.
Detects infrared wavelength at 880 nm peak sensitivity. Fast switching with rise and fall times approximately 2 μs. Compact subminiature surface mount package with black plastic housing. Maintains device integrity under wide temperature range (-40°C to 85°C).
Maximum collector current rating of 50 mA ensures reliable operation. Low dark current minimizes noise in optical detection systems. Designed for integration in encoders, counters, photo interrupters, and IR sensors. Supplied in tape and reel for automated pick-and-place manufacturing processes.
This phototransistor is ideal for industrial, electronics manufacturing, robotics, and automation applications where precise infrared detection is critical. It supports various sensing and control functions in consumer electronics and industrial equipment.
Explore more Vishay Phototransistors and related optoelectronic components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEMT1020 detects infrared light with a peak wavelength of 880 nm.
It has a typical rise time of 2 μs and a fall time of 2.3 μs, allowing for fast electrical response.
The maximum collector current rating is 50 mA, ensuring reliable operation in various applications.
This model operates reliably between -40°C and 85°C ambient temperature.
The TEMT1020 measures 2.5 mm in length, 2 mm in width, and 2.7 mm in height.
It is housed in a subminiature surface mount package with 2 pins.
The maximum light current is 7000 μA, suitable for precise light measurement and switching applications.
It is supplied in tape and reel format for automated pick-and-place manufacturing processes.
The typical dark current is limited to 200 nA, which helps minimize noise in sensitive detection circuits.
Yes, this phototransistor is RoHS compliant, ensuring it meets environmental safety standards.
It is designed for integration in encoders, counters, photo interrupters, and IR sensors, making it ideal for various industrial and consumer electronics applications.
The angle of half sensitivity for the TEMT1020 is 30°.
