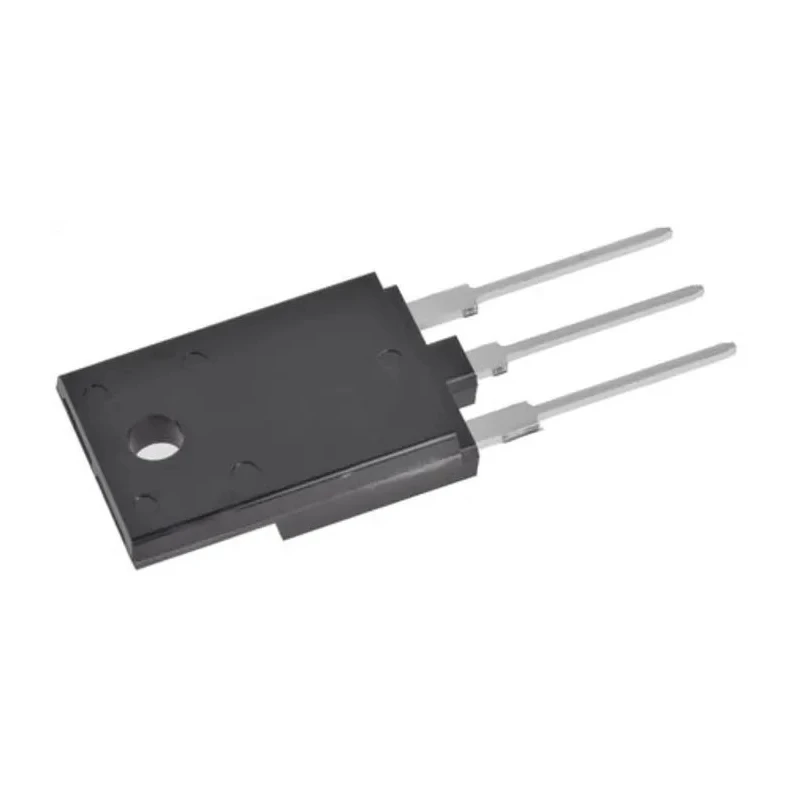

STMicroelectronics High Voltage 600 V 60 A Diode Through Hole 4-Pin TO-3PF STTH60AC06CPF

STMicroelectronics STTH60AC06CPF is a high voltage diode designed for power and industrial electronics applications, featuring a robust through-hole TO-3PF package that facilitates easy assembly and mechanical durability.

This diode offers a maximum continuous forward current of 60 amperes and a peak reverse repetitive voltage rating of 600 volts, making it suitable for high power rectification tasks in circuits requiring reliable voltage blocking and current carrying capabilities.

Its common cathode diode configuration and 4-pin design provide flexibility for use in various rectifier topologies including bridge rectifiers and power supplies. With a maximum forward voltage of 2 volts and a fast peak reverse recovery time of 70 nanoseconds, it is optimized for efficiency and performance in switching applications.

The diode operates reliably across a wide temperature range from -65°C to 175°C, ensuring durability in industrial, automotive, and power management environments. Physical dimensions of 26.7 mm height, 15.7 mm length, 5.7 mm width, and 3.1 mm diameter make it a compact and space-efficient component.

Compliance with RoHS standards confirms its suitability for environmentally conscious manufacturing processes. The diode features a high voltage rectifier design suitable for power electronics applications. It supports a maximum continuous forward current rating of 60 amperes.

Peak reverse repetitive voltage is rated at 600 volts for reliable blocking capability. Its common cathode diode configuration enhances circuit integration flexibility. The package type is TO-3PF with a through-hole mounting style, providing robust mechanical stability.

The diode has a maximum forward voltage of 2 volts and fast recovery time of 70 nanoseconds. Operating temperatures range from -65°C to 175°C ensuring suitability for harsh environments. Its dimensions are 26.7 mm height, 15.7 mm length, 5.7 mm width, and 3.1 mm diameter.

The diode complies with RoHS standards, supporting environmental safety requirements. This Diode is ideal for use in industrial power supplies, motor control units, HVAC, and automotive electrical systems where high voltage and current handling are essential.
