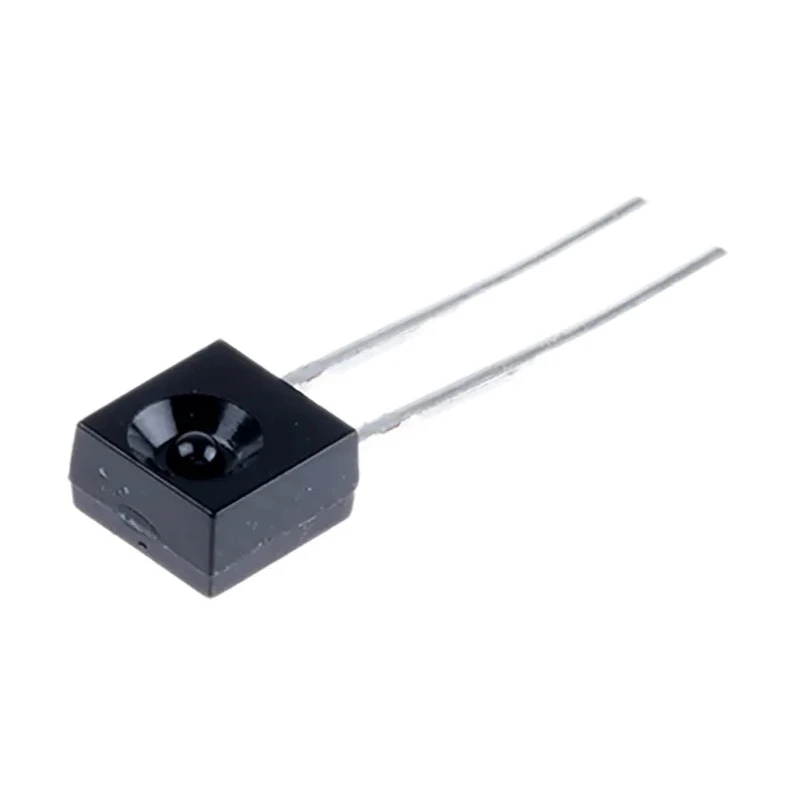

Vishay Infrared Phototransistor, Through Hole 2-Pin Side Looker Package, 74° Half Sensitivity Angle TEKT5400S-ASZ
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.2mm |
| Brand | Vishay |
| Height | 5mm |
| Length | 5mm |
| Model | TEKT5400S-ASZ |
| Packaging | Bulk |
| Width | 2.65mm |
| Mount Type | Through Hole |
| Series | TSKS5400S |
| Maximum Operating Temperature | 85°C |
| Package Type | Side Looker |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Package Form | side view lens |
| Standards/Approvals | WEEE 2002/96/EC, RoHS Directive 2002/95/EC |
| Number of Pins | 2 |
| Typical Rise Time | 6μs |
| Typical Fall Time | 5μs |
| Peak Wavelength | 920nm |
| Spectrums Detected | Infrared |
| Dimensions (L x W x H in mm) | 5 x 2.65 x 5 |
| Angle of Half Sensitivity | 74 ° |
| Collector Current | 100mA |
| Maximum Light Current | 4000μA |
| Maximum Dark Current | 100nA |
| Collector Emitter Voltage | 70V |
| Emitter Collector Voltage | 7V |
Key Features
- The device includes a daylight blocking filter matching 940 nm emitters.
- It features a 74° angle of half sensitivity with ±37° viewing angle.
- Typical rise time is 6 microseconds with a fall time of 5 microseconds.
- The phototransistor supports a maximum collector current of 100 mA.
- Operating temperature ranges from -40°C to 85°C for reliable performance.
- The package size is compact with dimensions 5 mm length, 2.65 mm width, and 5 mm height.
- The package type is side view lens with a black plastic body to block ambient visible light.
- This component is suitable for electronic control and drive circuit detection.
Product Description
Vishay TEKT5400S-ASZ is a silicon NPN infrared phototransistor designed for reliable detection of IR light with a peak wavelength sensitivity at 920 nm. The component is packaged in a through hole, side looker 2-pin black plastic case that blocks visible light and filters daylight effectively, enhancing infrared detection accuracy.
This phototransistor offers fast response times, with typical rise and fall times of 6 μs and 5 μs respectively, making it ideal for precision detection applications. The package dimensions are compact (5 × 2.65 × 5 mm), facilitating easy integration into electronic assemblies.
The device's maximum collector current rating is 100 mA with a collector-emitter voltage of 70 V and emitter-collector voltage of 7 V, supporting robust operation in various electronic control and drive circuits. Operating temperature ranges from -40°C up to 85°C ensure durability across industrial environments.
The 74° angle of half sensitivity (±37° viewing angle) aids in capturing infrared signals effectively while maintaining directional accuracy. The phototransistor is compliant with environmental standards including WEEE 2002/96/EC and RoHS Directive 2002/95/EC, ensuring ecological safety.
Applications include IR detection in remote controls, sensor circuits, and other optoelectronic systems requiring precise infrared light sensing capabilities. This component is part of the Vishay TSKS5400S series, known for high radiant sensitivity and fast response times matched to 940 nm IR emitters.
The black plastic package provides a daylight filter for better IR detection. Compact, through-hole side looker package enables straightforward PCB mounting. Robust temperature and electrical operating ranges support industrial use.
Compliant with environmental and safety directives for electronics manufacturing. Optimized for use with IR emitter series TSKS5400S for paired infrared applications. Explore a wide range of Vishay Phototransistors and related components in the Electronics & Electricals category at EnvMart for industrial and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector current for this model is 100 mA.
This phototransistor operates within a temperature range of -40°C to 85°C.
The package dimensions are 5 mm in length, 2.65 mm in width, and 5 mm in height.
The typical rise time is 6 microseconds and the fall time is 5 microseconds.
The angle of half sensitivity for this model is 74°, with a ±37° viewing angle.
It uses a through hole, side looker package type with a black plastic body.
The peak wavelength sensitivity is at 920 nm, making it suitable for infrared applications.
It complies with the WEEE 2002/96/EC and RoHS Directive 2002/95/EC standards.
This phototransistor has 2 pins.
The collector-emitter voltage rating is 70 V.
It is suitable for IR detection in remote controls, sensor circuits, and other optoelectronic systems requiring precise infrared light sensing capabilities.
The maximum dark current is 100 nA.
