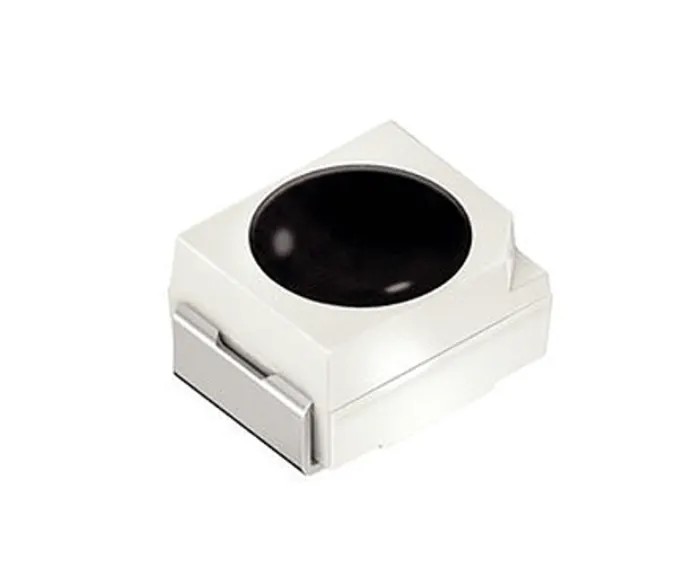

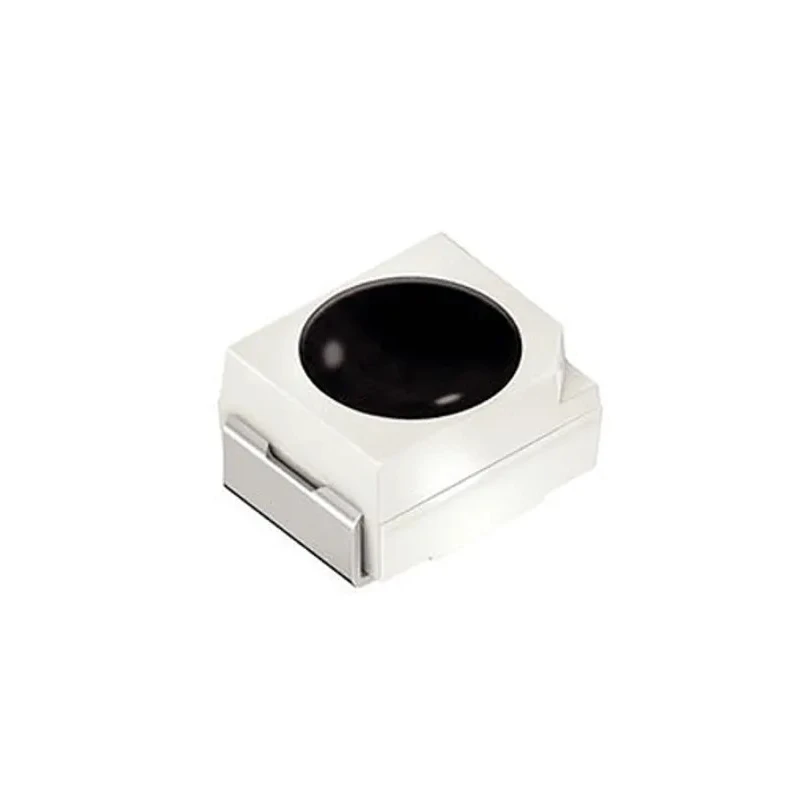

ams OSRAM TOPLED Infrared Phototransistor SFH 320 FA-3/4, Surface Mount PLCC 2-Pin Package, 120° Half Angle
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.4mm |
| Brand | ams OSRAM |
| Height | 2mm |
| Length | 3.4mm |
| Model | SFH 320 FA-3/4 |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Series | TOPLED |
| Maximum Operating Temperature | 100°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, IEC 62471 2006 |
| Number of Pins | 2 |
| Typical Fall Time | 7μs |
| Peak Wavelength | 980nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 15mA |
| Maximum Light Current | 1000μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
| Half angle | 60° |
Key Features
- Detects infrared spectrum with a peak wavelength of 980nm.
- Features a 120° angle of half sensitivity ensuring wide detection range.
- Typical rise and fall times are 7 microseconds for fast response.
- Maximum collector current rating is 15mA with low dark current of 50nA.
- Operating temperature range from -40°C to +100°C allows use in harsh environments.
- Package type is a surface mount 2-pin PLCC with clear or daylight diffused lens.
- Collector emitter voltage maximum rating is 35V for reliable operation.
- Tape & Reel packaging is suitable for automated assembly processes.
Product Description
ams OSRAM SFH 320 FA-3/4 is a high-quality infrared phototransistor from the TOPLED series designed for precise and efficient detection of infrared light. It utilizes a surface mount PLCC-2 package which supports all standard soldering methods and provides a compact footprint for modern electronic assemblies.
Designed for industrial, electronic components, and optoelectronic applications, it features a wide 120° half sensitivity angle ensuring effective detection over broad areas. The device detects infrared light spectrum with a peak wavelength of 980nm and offers fast response with typical rise and fall times of 7 microseconds.
The phototransistor supports a maximum collector current of 15mA with a very low dark current of 50nA, contributing to its excellent signal-to-noise ratio. It operates reliably across a broad temperature range from -40°C to +100°C, suitable for harsh environmental conditions commonly encountered in industrial electronics and sensor systems.
Manufactured with adherence to RoHS and IEC 62471 2006 standards, this device ensures both environmental compliance and operational safety. Tape & Reel packaging format supports efficient automated installation processes in manufacturing settings.
Key physical dimensions include a length of 3.4mm, width of 3mm, height of 2mm, and diameter of 2.4mm. The 2-pin PLCC package features a clear or daylight diffused lens that optimizes infrared light reception.
Detects infrared spectrum with peak wavelength of 980nm. Wide 120° angle of half sensitivity for broad detection. 7μs typical rise and fall times for rapid response. Maximum collector current of 15mA with low dark current.
Reliable operation from -40°C to 100°C. Surface mount 2-pin PLCC package with clear lens. 35V maximum collector emitter voltage rating. RoHS and IEC 62471 standards compliance. Tape & Reel packaging for automated assembly.
Compact dimensions facilitate integration in electronic designs.
This phototransistor is ideal for electronic component manufacturing, optoelectronic sensors, industrial automation, and other applications requiring sensitive infrared detection. Explore more ams OSRAM components and Phototransistor products at EnvMart for innovative electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The phototransistor detects infrared light with a peak wavelength of 980nm.
It has a maximum collector current rating of 15mA.
The operating temperature range is from -40°C to +100°C, allowing it to function in harsh environments.
It is packaged in a surface mount 2-pin PLCC format.
The dimensions are 3.4mm in length, 3mm in width, and 2mm in height, with a diameter of 2.4mm.
It features a 120° angle of half sensitivity, ensuring effective detection over broad areas.
The typical rise and fall times are 7 microseconds, providing a fast response.
The maximum collector emitter voltage rating is 35V, ensuring reliable operation.
It complies with RoHS and IEC 62471 2006 standards, ensuring environmental compliance and operational safety.
It comes in Tape & Reel packaging, suitable for automated assembly processes.
The maximum dark current rating is 50nA, contributing to its excellent signal-to-noise ratio.
This phototransistor is suitable for industrial, electronic components, and optoelectronic applications requiring sensitive infrared detection.
