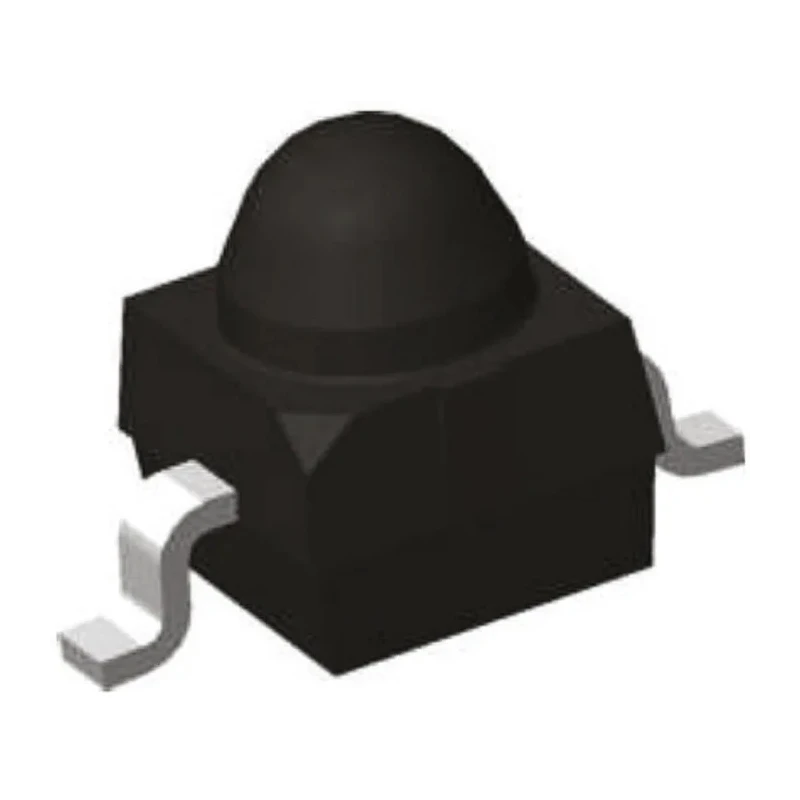

Vishay Infrared Phototransistor Surface Mount 2-Pin Black Dome Lens 30° Half Sensitivity VEMT2020X01
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.8mm |
| Brand | Vishay |
| Height | 2.77mm |
| Length | 2.3mm |
| Model | VEMT2020X01 |
| Packaging | Tape & Reel |
| Width | 2.3mm |
| Mount Type | Surface |
| Series | VEMT2000X01 |
| Maximum Operating Temperature | 100°C |
| Package Type | Black Dome Lens |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS Directive 2002/95/EC, WEEE 2002/96/EC |
| Number of Pins | 2 |
| Automotive Standard | AEC-Q101 |
| Peak Wavelength | 860nm |
| Spectrums Detected | Infrared |
| Angle of half intensity | 15° |
| Angle of Half Sensitivity | 30 ° |
| Collector Current | 50mA |
| Maximum Light Current | 9000μA |
| Maximum Dark Current | 100nA |
| Collector Emitter Voltage | 20V |
| Emitter Collector Voltage | 7V |
| Different lead types | GW and RGW |
Key Features
- The phototransistor operates in the infrared spectrum, with a peak wavelength of 860nm.
- It is housed in a subminiature surface mount package with a black plastic dome lens, providing daylight filtering.
- Maximum light current is 9000μA and maximum dark current is 100nA, ensuring high sensitivity.
- Operating temperature ranges from -40°C to 100°C, suitable for various environments.
- Collector to emitter voltage is rated at 20V, with an emitter to collector voltage of 7V.
- The device features fast response times and high radiant sensitivity for precise detection.
- Designed for applications such as photo interrupters, miniature switches, automotive detectors, counters, encoders, and position sensors.
- Complies with RoHS Directive 2002/95/EC and WEEE 2002/96/EC standards.
Product Description
Vishay VEMT2020X01 is a subminiature infrared phototransistor designed for surface mounting with a 2-pin configuration and black dome lens package. It operates at a peak wavelength of 860nm within the infrared spectrum, making it suitable for precise light detection in industrial and automotive applications.
This phototransistor features a 30° angle of half intensity sensitivity and fast response times, ensuring accurate and timely optical detection. The black plastic housing acts as a daylight filter, effectively eliminating ambient visible light interference which is crucial in varied lighting environments.
Key features include a maximum collector current of 50mA, maximum light current of 9000μA, and a very low dark current of 100nA. It operates reliably across a wide temperature range from -40°C to 100°C. The device has a collector to emitter voltage rating of 20V and an emitter to collector voltage rating of 7V, guaranteeing durability and stable operation.
Typical applications for this model include photo interrupters used in safety and automation, miniature switches, automotive optical detectors, counters, encoders, and position sensing systems. It adheres to RoHS directives for environmental compliance and is certified under AEC-Q101, indicating its suitability for automotive standards.
The device is supplied in tape and reel packaging, facilitating automated PCB assembly processes and improving production efficiency. The phototransistor operates in the infrared spectrum, with a peak wavelength of 860nm.
Black dome lens package filters ambient visible light. Fast response times enable precise light detection. Rated maximum collector current of 50mA. Low dark current ensures high sensitivity. Wide operating temperature range from -40°C to 100°C.
Compliance with environmental and automotive standards. Tape & reel packaging suitable for automated assembly.
This Vishay phototransistor is ideal for industrial, automotive, manufacturing, and instrumentation applications requiring reliable and efficient light sensing. Explore more Phototransistors and electronic components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak wavelength of the Vishay VEMT2020X01 phototransistor is 860nm, operating within the infrared spectrum.
The maximum collector current for this phototransistor is rated at 50mA.
This model operates reliably across a temperature range from -40°C to 100°C.
The collector to emitter voltage rating for this phototransistor is 20V.
The Vishay VEMT2020X01 is supplied in tape and reel packaging, which is suitable for automated PCB assembly.
The angle of half sensitivity for this phototransistor is 30°.
The dimensions of the VEMT2020X01 are 2.3mm in length, 2.3mm in width, and 2.77mm in height, with a diameter of 1.8mm.
This model complies with the RoHS Directive 2002/95/EC and WEEE 2002/96/EC standards, as well as the automotive standard AEC-Q101.
The maximum dark current for the VEMT2020X01 is 100nA, ensuring high sensitivity.
This phototransistor is designed for applications such as photo interrupters, miniature switches, automotive detectors, counters, encoders, and position sensors.
The Vishay VEMT2020X01 has a 2-pin configuration.
The maximum light current for this phototransistor is 9000μA, contributing to its high sensitivity.
