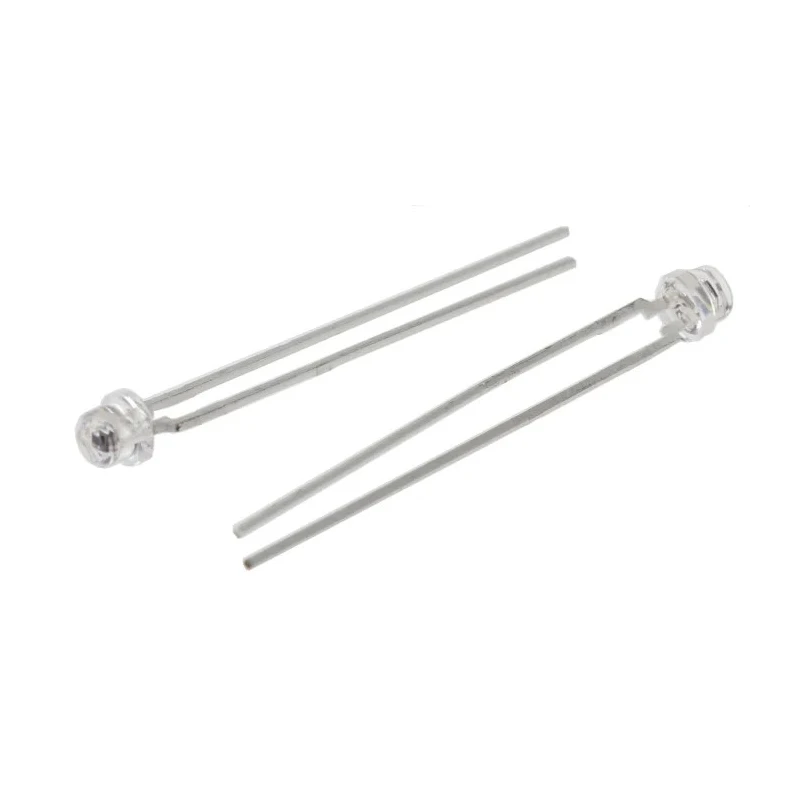

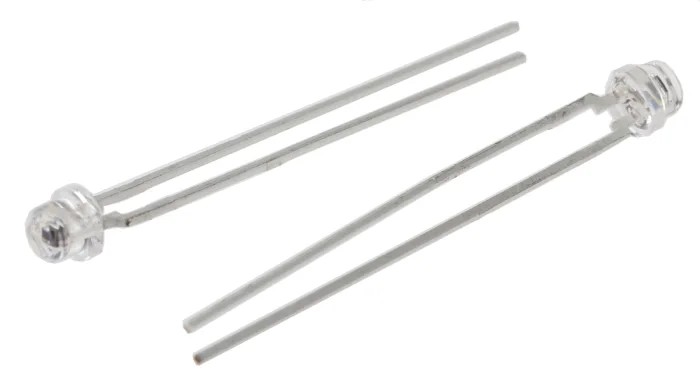

ams OSRAM Phototransistor Infrared, Ultraviolet, Visible Light, Through Hole 2-Pin 3 mm (T-1) Package SFH 3310
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.1mm |
| Brand | ams OSRAM |
| Height | 3.1mm |
| Length | 4mm |
| Model | SFH 3310 |
| Width | 4mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 100°C |
| Package Type | 3 mm (T-1) |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS, IEC 62471 2006 |
| Number of Pins | 2 |
| Peak Wavelength | 570nm |
| Spectrums Detected | Infrared, Ultraviolet, Visible Light |
| Angle of Half Sensitivity | 150 ° |
| Collector Current | 20mA |
| Maximum Light Current | 8μA |
| Maximum Dark Current | 3nA |
| Collector Emitter Voltage | 5.5V |
| Emitter Collector Voltage | 0.5V |
Key Features
- Designed for ambient light detection and exposure metering applications.
- Operates reliably from -40°C to 100°C ambient temperature.
- Maximum collector current of 20mA supports sensitive light detection needs.
- Compact size with 3.1mm diameter and 4mm length for easy PCB integration.
- Compliant with RoHS and IEC 62471 2006 standards for safety and environmental regulations.
- Adapted to simulate human eye spectral sensitivity (Vλ) for improved accuracy.
- Stable performance with low maximum dark current of 3nA and max light current of 8μA.
- Suitable for sensor applications in backlight dimming control and drive circuits.
Product Description
ams OSRAM SFH 3310 is a high-performance phototransistor designed to detect infrared, ultraviolet, and visible light spectrums with a wide 150 ° angle of half sensitivity. Packaged in a compact through-hole 2-pin 3 mm (T-1) housing, this device is ideal for integration in various electronic and optoelectronic applications.
The phototransistor operates stably within a temperature range of -40°C to 100°C, making it suitable for challenging industrial environments. It offers a maximum collector current of 20mA and a peak wavelength detection centered at 570nm, allowing sensitive and precise ambient light measurements adaptable to human eye sensitivity (Vλ).
Its low maximum dark current of 3nA ensures minimal noise, while the maximum light current of 8μA enables effective sensing of varying light conditions. The package dimensions (3.1 mm diameter, 4 mm length, 4 mm width, and 3.1 mm height) contribute to easy mounting on PCBs through the through-hole design.
Conforming to RoHS and IEC 62471 2006 standards, the SFH 3310 phototransistor meets environmental safety and photobiological safety requirements. Wide spectral detection: infrared, ultraviolet, and visible light. Robust operating temperature range for industrial use.
Compact form factor with standardized through-hole mount. Low dark current and adequate collector current for sensitive detection. Adapted spectral response to human eye sensitivity (Vλ). Use cases include ambient light sensors, exposure meters, sensor backlight dimming, and control circuits.
This product is essential for industrial electronics, sensor applications, and ambient light detection systems in laboratory and manufacturing setups. Explore more Phototransistors like the SFH 3310 for precision light sensing at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SFH 3310 operates reliably within a temperature range of -40°C to 100°C.
This phototransistor supports a maximum collector current of 20mA, allowing for sensitive light detection.
It is designed to detect infrared, ultraviolet, and visible light spectrums.
The dimensions of this model are 3.1 mm in diameter, 4 mm in length, and 4 mm in width.
The SFH 3310 has an angle of half sensitivity of 150 °, which enhances its light detection capabilities.
The maximum light current for this model is 8μA, which facilitates effective sensing of varying light conditions.
The maximum dark current is 3nA, ensuring minimal noise during operation.
This phototransistor utilizes a through-hole mounting type, making it easy to integrate onto PCBs.
It is compliant with RoHS and IEC 62471 2006 standards for safety and environmental regulations.
The peak wavelength detection is centered at 570nm, which is adapted to simulate human eye spectral sensitivity (Vλ).
This model features 2 pins, designed for simple electrical connections.
It is suitable for applications such as ambient light sensors, exposure meters, and backlight dimming control circuits.
