Nexperia PNP Power Bipolar Transistor PHPT61010PYX, 10A, 100V, SOT-669, Surface Mount, 5-Pin

Nexperia PHPT61010PYX is a high-performance PNP power bipolar transistor engineered for demanding industrial, automotive, and power management applications. With a maximum DC collector current of 10A and collector emitter voltage up to 100V, this device is optimized for robust switching and amplification tasks where efficiency and reliability are critical.

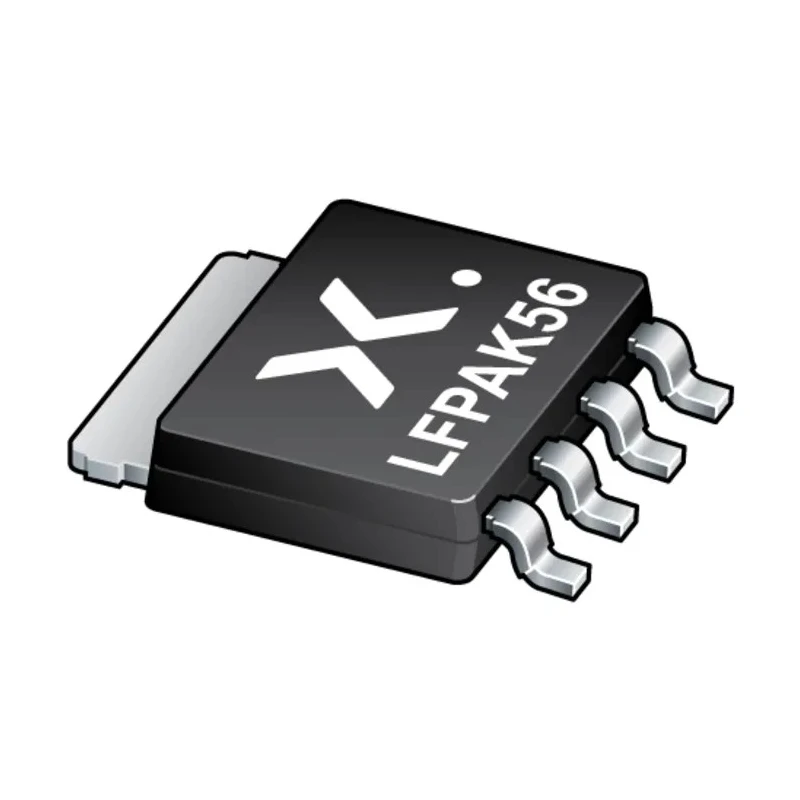

Packaged in a SOT-669 (LFPAK56) surface-mounted plastic package, the PHPT61010PYX transistor offers excellent thermal power dissipation (up to 25W), enabling use in high temperature environments up to 175°C. Its single-transistor configuration, coupled with strong amplification characteristics (minimum DC current gain of 180), ensures stable performance even under heavy load conditions.

The 5-pin form factor supports surface mount assembly, streamlining PCB designs by reducing layout complexity and footprint compared to larger packages such as DPAK. The device's design incorporates energy efficiency features to minimize heat generation, which is beneficial for both low and high power systems, contributing to extended operational life and reduced cooling requirements.

AEC-Q101 automotive qualification and RoHS compliance make this transistor suitable for reliable integration in automotive electronics, industrial power management, and commercial applications. Applications include load switch, linear voltage regulator, relay replacement, motor drive, and backlighting, as well as general power management circuits.

Technical highlights include a minimum emitter base voltage of -8V, maximum collector base voltage of -100V, transition frequency of 90MHz, and a minimum operating temperature of -55°C. These parameters support flexibility for engineers working on both analog and digital designs.

This device is part of the PHPT61010PY series, providing a reliable solution for high energy efficiency designs. Complementary NPN model (PHPT61010NY) is also available for paired circuit applications requiring symmetrical transistor configurations.

Rated for 10A maximum DC collector current and 100V collector emitter voltage. PNP polarity configuration in a single-transistor SOT-669 (LFPAK56) surface mount package. High thermal power dissipation capability up to 25W.

Wide operating temperature range from -55°C to 175°C for demanding environments. AEC-Q101 automotive qualified and RoHS compliant for reliable, safe operation. Minimum DC current gain hFE of 180 ensures strong amplification characteristics.

Compact 5-pin form factor for streamlined PCB layouts and reduced requirements compared to DPAK. Ideal for power management, load switching, linear voltage regulation, motor drive, relay replacement, and backlighting applications.
