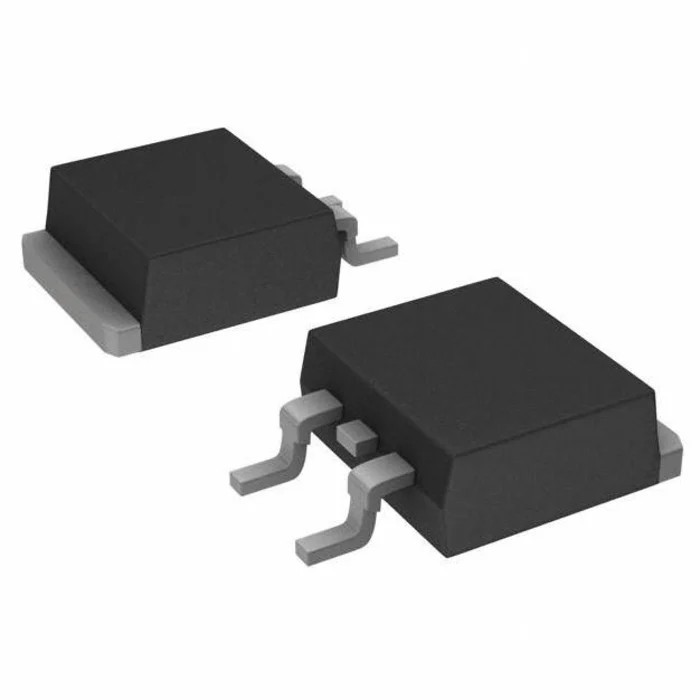

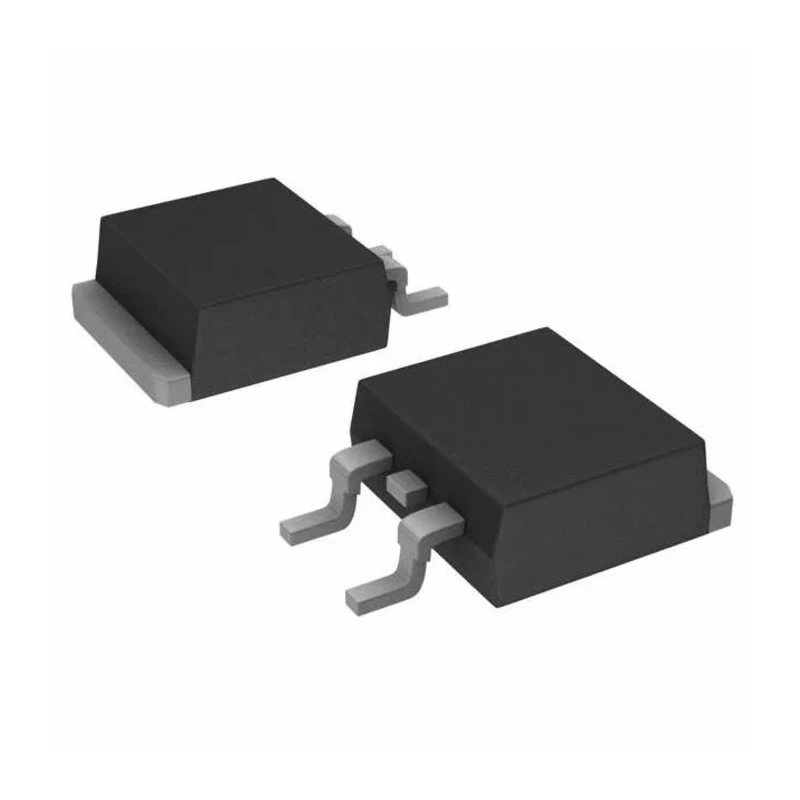

onsemi Digital Transistor PNP -80V 10A Surface Mount 2-Pin MJB45H11G
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Height | 8.64mm |
| Length | 9.65mm |
| Model | MJB45H11G |
| Width | 4.83mm |
| Mount Type | Surface |
| Series | MJB45H |
| Maximum Operating Temperature | 150°C |
| Standards/Approvals | UL 94 V-0 |
| Pin Count | 2 |
| Maximum Continuous Collector Current Ic | 10A |
| Maximum Collector Emitter Voltage Vceo | -80V |
| Minimum DC Current Gain hFE | 60 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V dc |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 50W |
| Transistor Configuration | Single |
Key Features
- PNP bipolar digital transistor designed for high-current power amplification.
- Maximum collector emitter voltage of -80V provides robust electrical performance.
- Surface mount package with 2-pin configuration for easy integration.
- Continuous collector current rating of 10A enables high-power applications.
- 50W maximum power dissipation ensures reliable operation under load.
- Fast switching speeds improve efficiency in electronic circuits.
- Minimum DC current gain of 60 for effective signal amplification.
- Compliant with automotive standard AEC-Q101 for enhanced reliability.
Product Description
The onsemi MJB45H11G is a PNP digital transistor engineered for demanding power amplification and switching tasks in industrial and automotive electronics. Featuring a maximum collector emitter voltage of -80V and a continuous collector current rating of 10A, this component delivers robust and consistent performance across various applications, including switching regulators, power amplifiers, and converters.
Constructed with a surface mount package and a 2-pin layout, the MJB45H11G is designed to simplify integration onto printed circuit boards and optimize space in electronic assemblies. Its fast switching speeds contribute to greater efficiency and lower losses in high-performance power circuits, making it suitable for both industrial and automotive power control solutions.
The maximum power dissipation of 50W ensures the transistor can handle substantial load requirements without compromising reliability. It adheres to the automotive AEC-Q101 standard, underscoring its enhanced durability and suitability for automotive power management designs.
Key technical features such as minimum DC current gain of 60, collector emitter saturation voltage max of 1V, and a maximum emitter base voltage of 5V enable precise control and effective switching. The transistor is compliant with UL 94 V-0 safety standard for material flammability.
Physical dimensions of the device are Length 9.65mm, Height 8.64mm, and Width 4.83mm, supporting ease of mounting and compatibility with standard board layouts.
Applications include output and driver stages in switching regulators, power amplifiers, industrial controls, and automotive power electronics. The complementary pair option with MJB44H11 (NPN) further enhances design flexibility.
Explore onsemi’s Bipolar Transistor range for advanced semiconductor solutions for industrial, commercial, and automotive electronics at EnvMart.
Explore more products in our Bipolar Transistors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector emitter voltage of the MJB45H11G is -80V, which provides robust electrical performance for various applications.
This model has a continuous collector current rating of 10A, making it suitable for high-power applications.
The maximum power dissipation for this transistor is 50W, ensuring reliable operation under load conditions.
The dimensions of this transistor are 9.65mm in length, 8.64mm in height, and 4.83mm in width, facilitating easy integration into circuit boards.
The MJB45H11G has a minimum DC current gain of 60, which is effective for signal amplification.
The maximum emitter base voltage for the MJB45H11G is 5V dc, which is important for its operation in circuits.
This transistor complies with the automotive standard AEC-Q101, indicating its reliability for automotive applications.
It features a surface mount package with a 2-pin configuration, designed for easy integration onto printed circuit boards.
The maximum collector emitter saturation voltage for the MJB45H11G is 1V, which is relevant for its switching performance.
This transistor is suitable for applications such as output and driver stages in switching regulators, power amplifiers, and industrial controls.
The MJB45H11G is compliant with the UL 94 V-0 safety standard for material flammability, ensuring safety in its applications.
The maximum operating temperature for the MJB45H11G is 150°C, which is critical for its performance in high-temperature environments.
