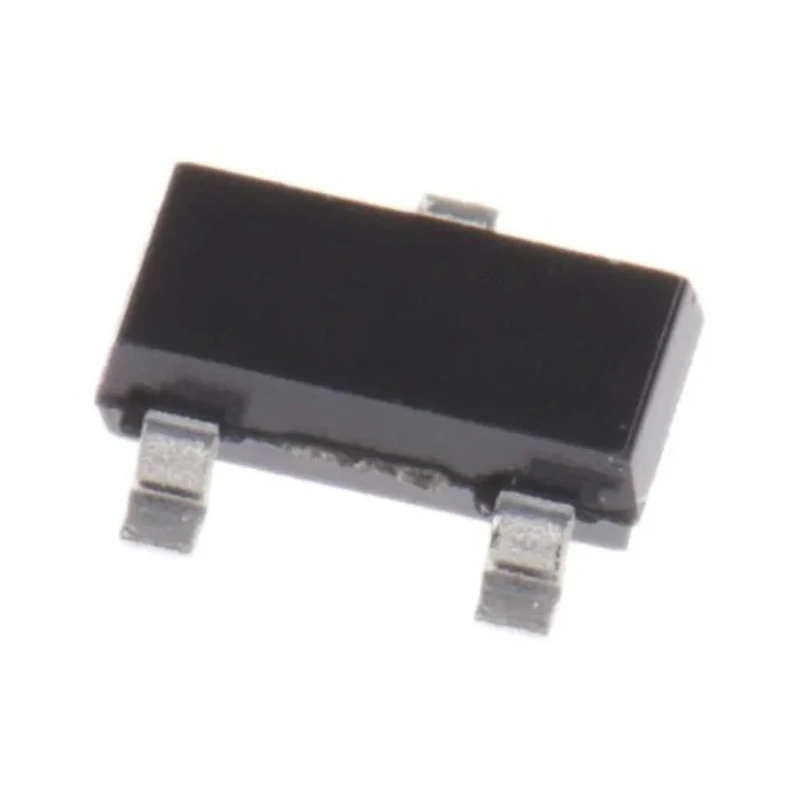

onsemi Digital Transistor NPN 60V dc, SOT-23 Surface Mount, 3-Pin, High Current Gain NSS60201LT1G

onsemi NSS60201LT1G Digital Transistor is an NPN bipolar device in a compact SOT-23 package, specifically engineered for high-frequency and high-efficiency switching applications. Designed for integration in modern electronic circuits, it serves as a robust solution for load switching, battery charging, DC/DC conversion, LED driving, relay and motor control, and a wide array of automotive and portable device functions.

The NSS60201LT1G delivers a maximum collector-emitter voltage of 60V dc, enabling safe operation in moderate voltage environments, while its high current gain (minimum hFE 150) ensures reliable signal amplification and switching performance. With ultra low VCE(sat), the transistor contributes to improved energy efficiency and reduced battery charge times in portable products.

Its low-profile SOT-23 surface-mount package provides flexibility for designers seeking space-saving layouts on printed circuit boards. The device supports automotive applications with AEC-Q101 compliance, ensuring reliable function under demanding temperature and vibration conditions found in vehicle electronics.

Maximum power dissipation rated at 710mW permits robust handling of switching loads, while an operating temperature range up to 150°C extends usability in harsh environments. Enhanced ESD robustness protects against electrostatic discharge events during assembly and operation.

Typical applications include mobile phones, PDAs, MP3 players, computers, power supplies, automotive body electronics, and toys. In industrial and laboratory electronics, it is utilized for load switching, battery management, peripheral driver circuits, and low drop-out regulation.

This transistor also supports linear gain operation for analog circuits, with a pin count of 3 ensuring simple integration into PCB designs. The NSS60201LT1G transmits reliability through its compliance to PPAP requirements for automotive supply chain control.

For circuit designers and engineers, this device offers consistent performance and long-term durability across multiple environments - ranging from commercial electronics to automotive and industrial systems.
