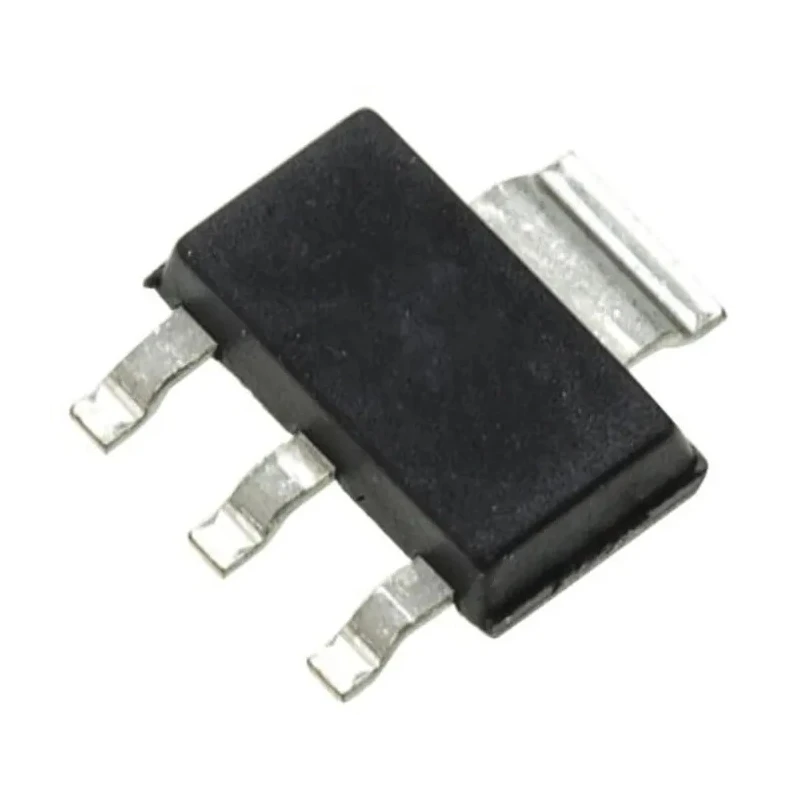

onsemi Digital NPN Transistor SOT-223 80V 1.5W High Current Surface Mount SBCP56-10T1G

onsemi SBCP56-10T1G is a robust and high-performance digital NPN transistor designed for use in medium power surface mount applications. Featuring a maximum collector emitter voltage of 80V DC and a maximum power dissipation rating of 1.5W, this transistor is well-suited for integration into audio amplifier circuits and other electronic assemblies where space-saving and reliable performance are critical.

This device comes in a SOT-223 (SC-73) package, allowing easy soldering using either wave or reflow methods. The formed leads of the package absorb thermal stress during soldering, protecting the integrity of the die and ensuring consistent electrical performance. With a high current capability up to 1.0 Amp, the SBCP56-10T1G provides operational versatility across varied industrial and automotive uses.

Its single transistor configuration and NPN polarity enable straightforward use in signal amplification, switching, and general-purpose audio amplifier applications. The device is AEC-Q101 compliant, making it compatible with automotive systems that demand high reliability and robustness.

Other key specifications include a maximum collector base voltage (VCBO) of 100V, maximum emitter base voltage (VEBO) of 5V DC, minimum DC current gain (hFE) of 25, operating temperature up to 150°C, and a compact 3-pin design. Physical dimensions are 20.02mm in length, 5.18mm in width, and 1.65mm in height, ensuring compatibility with dense PCB layouts.

The SOT-223 package is manufactured for efficient thermal performance and reduced die stress. It is delivered in tape and reel packaging, facilitating automated assembly and inventory management for large-scale production environments. These devices are Pb-free and halogen-free, supporting compliance with environmental standards.

High collector emitter voltage (80V DC) for demanding electronic environments. Maximum power dissipation of 1.5W allows operation at elevated power levels. 1.0 Amp high current capability suitable for medium power applications.

SOT-223 surface mount package enhances thermal management and assembly efficiency. AEC-Q101 automotive standard compliance ensures reliability in automotive circuits. Pb-free and halogen-free construction for environmental responsibility.

Typical applications include audio amplifiers, switching circuits, signal amplifiers, automotive electronics, and other industrial uses requiring medium power and compact design. Browse more Bipolar Transistors and onsemi components in the Electronics & Electricals category on EnvMart.
