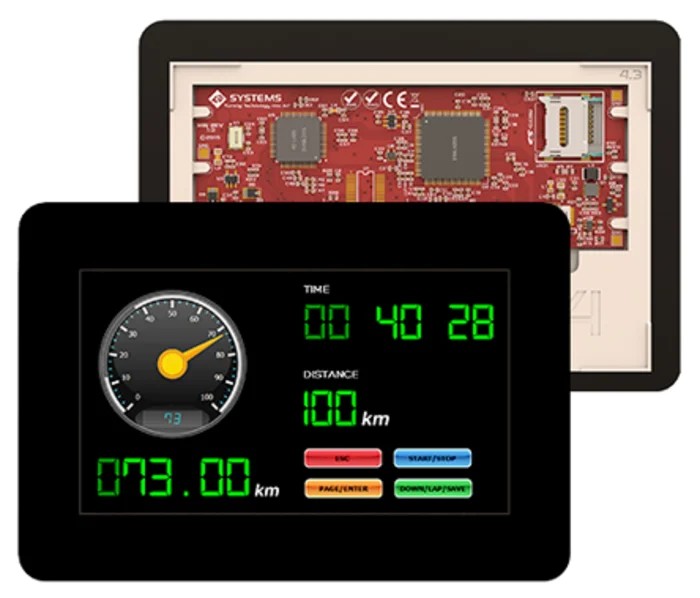

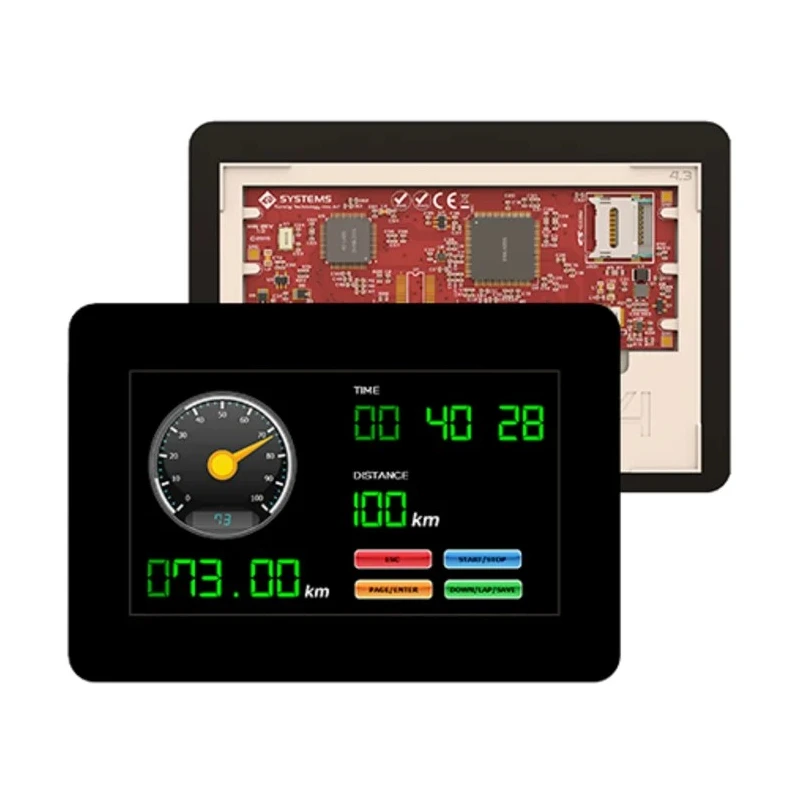

4D Systems LCD Colour Display Touch Screen 4.3 in 480 x 272 pixel Serial Interface Capacitive Touch gen4-uLCD-43DCT-CLB-AR

4D Systems gen4-uLCD-43DCT-CLB-AR LCD Colour Display Touch Screen is a versatile 4.3 inch 480 x 272 pixel display module designed for industrial, laboratory, and embedded system applications that require a compact and easy to integrate human-machine interface.

This display utilizes a serial interface with a 4-wire capacitive touch screen, creating an intuitive touchscreen experience suitable for commercial and industrial control panels, IoT devices, and embedded multimedia projects.

The module features an LED backlight providing 475cd/m² brightness with a 500:1 contrast ratio, delivering clear and vibrant visuals even in varying light conditions. Its compact dimensions (127.6mm by 69.3mm by 7.8mm including mounting tabs) allow easy integration into space-constrained products.

Powered by the 4D Systems Diablo16 processor, the display supports built-in graphics, image animation, and text rendering capabilities. The unit provides six banks of 32KB Flash memory alongside 32KB RAM, enabling robust user code storage and execution.

A 30-pin FPC connector facilitates convenient signal, power, communication, GPIO, and programming connections, eliminating complex wiring needs. Additionally, it has 16 general-purpose input/output pins with various configurable modes, supporting multiple interfaces including I2C and SPI channels.

This model includes a micro-SD card slot to add multimedia storage and data logging capabilities, enhancing its functionality for recording and playback in industrial automation or monitoring systems.

Designed to operate efficiently within a supply voltage range of 4.0V to 5.5V and environmental temperatures from -10°C to 60°C, it ensures reliability in diverse conditions. The LED backlight with PWM audio pin integration supports audio-visual embedded applications.

The display supports 65k true to life RGB colours. Compact module dimensions of 127.6mm x 69.3mm x 7.8mm including mounting tabs. Equipped with 6 banks of 32KB Flash memory and 32KB user RAM for application code and data.

Includes 16 GPIO pins with configurable analogue outputs and multiple communication channels (I2C and SPI). Features an integrated micro-SD card connector for multimedia storage and data logging. Operates on a voltage range of 4.0V to 5.5V with low current consumption of 315mA.

Backlit by LED with a brightness of 475cd/m² and contrast ratio of 500:1. Contains a dedicated PWM audio pin and supports all Windows fonts. Designed with a 30-pin FPC connection allowing signals, power, communications, GPIO, and programming access.

Certified with CE standard ensuring safety and compatibility.

This highly integrated LCD colour display is ideal for use in industrial systems, embedded applications, laboratory equipment, and commercial devices requiring reliable touchscreen display functionality.
