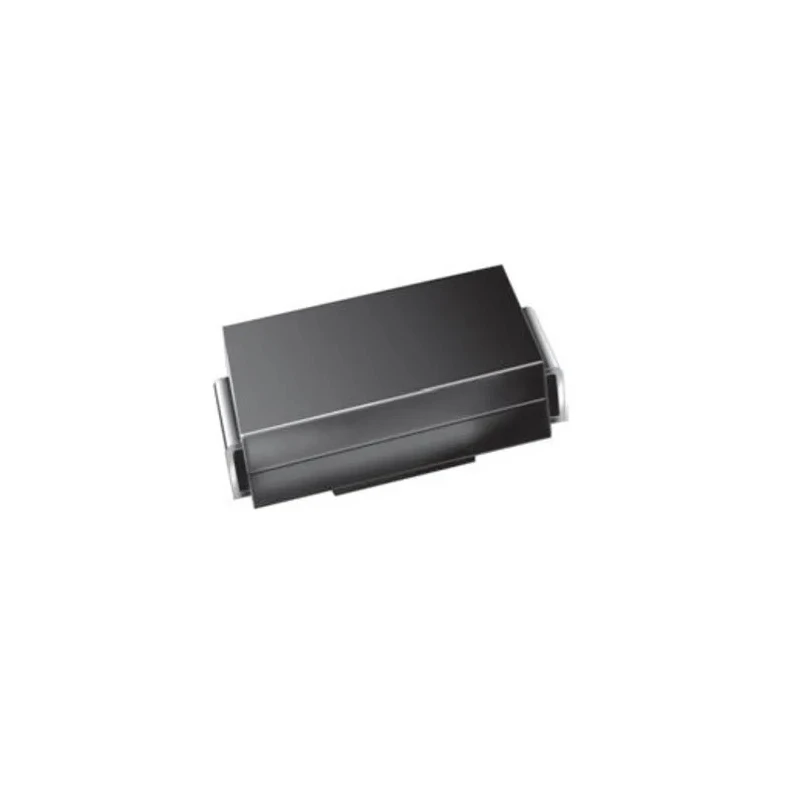

Vishay 1.82 V General Purpose Zener Diode Single 1 W 5% Surface Mount 2-Pin SMA (DO-214AC) SML4762AHE3_A/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1.82 V General Purpose Zener Diode Single 1 W 5% Surface Mount 2-Pin SMA (DO-214AC) SML4762AHE3_A/H

Name: Vishay 1.82 V General Purpose Zener Diode Single 1 W 5% Surface Mount 2-Pin SMA (DO-214AC) SML4762AHE3_A/H
Brand: Vishay
SKU: 167784
Price: 20.22 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.29mm
Length	4.5mm
Model	SML4762AHE3_A/H
Mount Type	Surface
Series	SML47xx
Maximum Operating Temperature	150°C
Package Type	SMA (DO-214AC)
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1W
Diode Configuration	Single
Test Current It	3mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	82V
Zener Type	General Purpose
Maximum Zener Impedance	200Ω

Key Features

Designed for surface mounting applications with low regulation factor and low Zener impedance.
Single diode configuration with 2 pins and 1 element per chip.
±5% Zener voltage tolerance ensures stable voltage regulation.
Operates reliably in temperatures ranging from -65°C to 150°C.
Supports maximum reverse leakage current of 5 μA at test current of 3 mA.
Compliance with RoHS and IEC 61760-1, IEC 61000-4-2 standards.
Package dimensions include 4.5 mm length and 2.29 mm height.
AEC-Q101 automotive standard certified for robust applications.

Product Description

The Vishay SML4762AHE3_A/H is a general purpose Zener diode featuring a nominal Zener voltage of 1.82 V and a maximum power dissipation of 1 watt. It is housed in an SMA (DO-214AC) surface mount package suitable for compact, high-density electronic circuits.

Designed for precise voltage regulation applications, this diode offers ±5% tolerance on its Zener voltage and maintains low Zener impedance, resulting in a low regulation factor. It includes a single diode element with 2 pins, optimized for surface mount technology (SMT).

Operating temperature range is broad, from -65°C up to 150°C, making it suitable for demanding industrial, automotive, and consumer electronics environments. It also meets automotive AEC-Q101 standards, ensuring reliability in vehicle electronic systems.

The diode has a maximum reverse leakage current of 5 microamperes at a test current of 3 milliamperes. Its construction is compliant with RoHS, IEC 61760-1, and IEC 61000-4-2 safety and quality standards.

Package dimensions are compact with a length of 4.5 mm and height of 2.29 mm, facilitating integration into space-constrained PCB designs. Designed for surface mounting with low regulation and impedance. Single diode configuration suitable for voltage regulation.

±5% voltage tolerance for stable circuit performance. Wide operating temperature range from -65°C to 150°C. Low reverse leakage current optimized at 5 μA. Meets RoHS and key IEC standards for quality assurance. AEC-Q101 certified for automotive use.

Compact SMA package measuring 4.5 mm by 2.29 mm.

This Zener diode is ideal for electronic circuits in industrial, automotive, telecommunications, and consumer electronics applications where reliable voltage stabilization is critical. Explore more Vishay electronic components and Zener Diodes at EnvMart.
