| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 0.9mm |
| Length | 1.3mm |
| Model | BZX584C30-HG3-08 |
| Mount Type | Surface |
| Series | BZX584C |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Single |
| Test Current It | 2mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 30V |
| Zener Type | Small Signal |

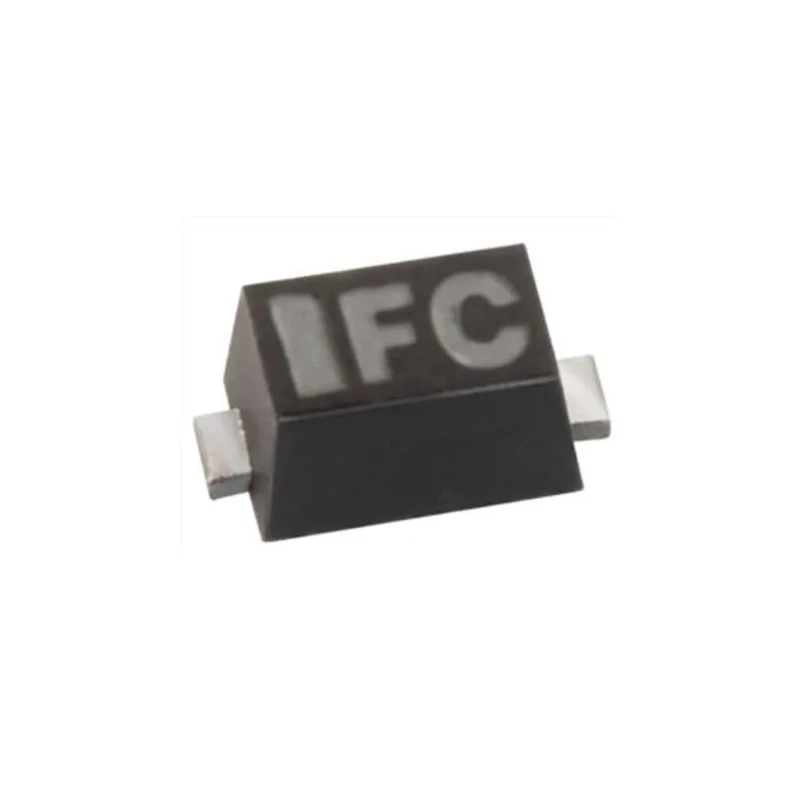

Vishay BZX584C30-HG3-08 is a high-quality small signal zener diode designed for voltage regulation and protection applications within industrial and electronic circuits requiring precise voltage clamping. This device features a nominal zener voltage of 30 V with a tolerance of ±5%, ensuring stable voltage control within critical operating conditions.
Packaged in a miniature SOD-523 plastic surface mount enclosure with only 2 pins, this diode is tailored for use in compact, space-sensitive designs such as portable devices, instrumentation, and automotive electronics. It supports a maximum power dissipation of 200 mW, making it suitable for low-power voltage regulation tasks.
The diode exhibits a maximum reverse leakage current of 50 nA at room temperature, minimizing power loss and enhancing circuit efficiency. The rated test current of 2 mA guarantees consistent Zener breakdown voltage with minimal variance. The device is compliant with RoHS directives and qualified per AEC-Q101 automotive standards, ensuring environmental safety and reliability under automotive operating conditions.
With an operational temperature range spanning from -65°C to 175°C, the diode maintains performance in harsh and extreme temperature environments encountered in industrial, automotive, and manufacturing applications. Its compact physical dimensions (1.3 mm length and 0.9 mm height) facilitate integration in dense PCB layouts where minimal footprint is required.
The diode is designed for surface mount technology (SMT) for efficient PCB assembly. Typical usage includes voltage stabilization, voltage reference, overvoltage protection, and signal conditioning in semiconductor circuits.
Its small signal zener characteristic makes it suitable for small electronic devices and precision circuits found in instrumentation and control systems. Being AEC-Q101 qualified, it is reliable for automotive safety and control electronic modules.
The RoHS compliance ensures it meets international standards for hazardous substances, supporting green manufacturing processes. It supports robust performance, compact design, and environmentally responsible manufacturing practices.
Explore more Vishay semiconductor products and Zener Diodes at EnvMart to meet your electronic component requirements.
