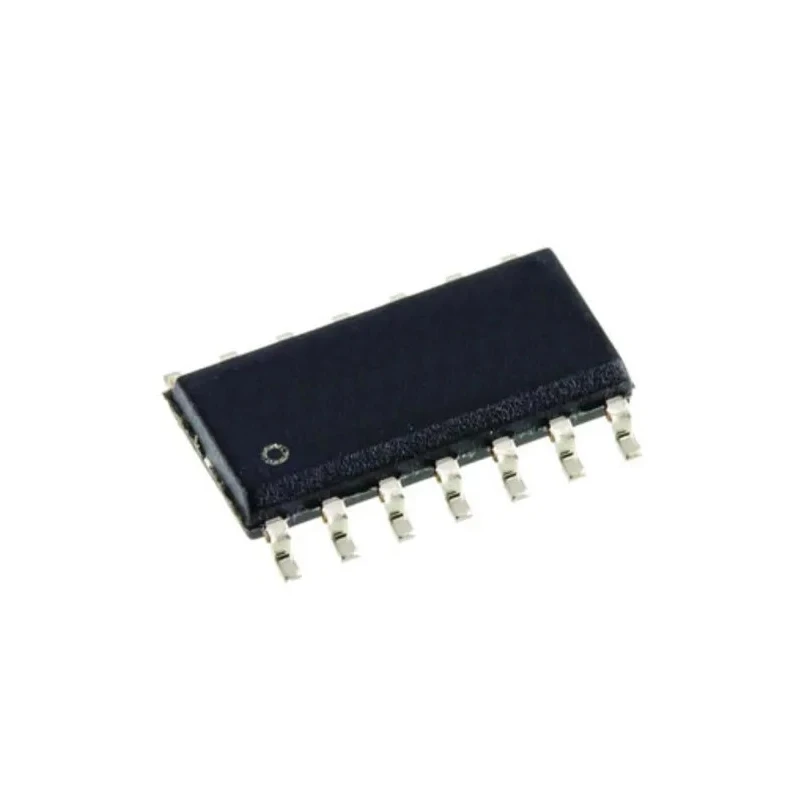

Infineon High Side Power Switch IC Dual Channel 4.2A 7-58V Surface Mount DSO-14 BTS723GWXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon High Side Power Switch IC Dual Channel 4.2A 7-58V Surface Mount DSO-14 BTS723GWXUMA1

Name: Infineon High Side Power Switch IC Dual Channel 4.2A 7-58V Surface Mount DSO-14 BTS723GWXUMA1
Brand: Infineon
SKU: 138871
Price: 5.07 USD
Availability: InStock



Category Power Switch IC Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.47mm
Length	8.75mm
Model	BTS723GWXUMA1
Width	4mm
Mount Type	Surface
Number of inputs	2
Series	BTS723GW
Maximum Operating Temperature	150°C
Package Type	DSO-14
Minimum Operating Temperature	-40°C
Operating Current	4.2A
Number of outputs	2
Pin Count	14
Automotive Standard	AEC
Maximum Supply Voltage	58V
Minimum Supply Voltage	7V
Switch On Resistance RdsOn	210mΩ

Key Features

The device has a low switch on resistance of 210mΩ for efficient power management.
Two outputs and two inputs enable independent control of dual loads.
Surface mount DSO-14 package ensures compatibility with automated PCB assembly.
Operates reliably in harsh environments with a temperature range from -40°C to 150°C.
Complies with automotive AEC standards for body control and electronic control units.
Suitable for switching lighting, signalling loads, motors, and solenoids in passenger vehicles.
Compact dimensions of 8.75mm length, 4mm width, and 1.47mm height optimize space in electronic systems.

Product Description

Infineon BTS723GWXUMA1 is a high-side power switch IC tailored for automotive and industrial applications requiring robust load control and compact integration. It supports a wide supply voltage range from 7V up to 58V, allowing flexibility across various vehicle electrical systems.

The BTS723GWXUMA1 provides two independently driven high-side outputs, each capable of handling an operating current of 4.2A, making it suitable for moderate power loads such as lighting, signalling circuits, solenoid valves, and motor controls. The device's low on-resistance of 210mΩ minimizes conduction losses, improving overall system efficiency.

Designed for surface-mount technology, the DSO-14 package facilitates automated PCB assembly processes and aids in high-volume manufacturing. The component withstands extreme temperature conditions from -40°C to 150°C, ensuring reliable operation in under-bonnet and vehicle-body electronics exposed to harsh environments.

This power switch IC complies with the Automotive Electronics Council (AEC) standards, ensuring suitability for automotive body control modules and electronic control units (ECUs) that require dual-channel load switching with independence for each channel.

Industrial and commercial applications also benefit from this component's robust design and versatility. Its precise control and safety features help optimize performance in manufacturing or HVAC motor driver systems requiring reliable high-side switching.

The device has a low switch on resistance of 210mΩ for efficient power management. Two outputs and two inputs enable independent control of dual loads. Wide supply voltage range from 7V to 58V supports various systems. Compact Surface Mount DSO-14 package for automated assembly.

Operating temperature range from -40°C to 150°C for harsh environments. Compliance with AEC automotive standards for reliability. Suitable for automotive lighting, signalling, motor, and solenoid applications. Set contains 1 Pc Infineon BTS723GWXUMA1 Power Switch IC.
