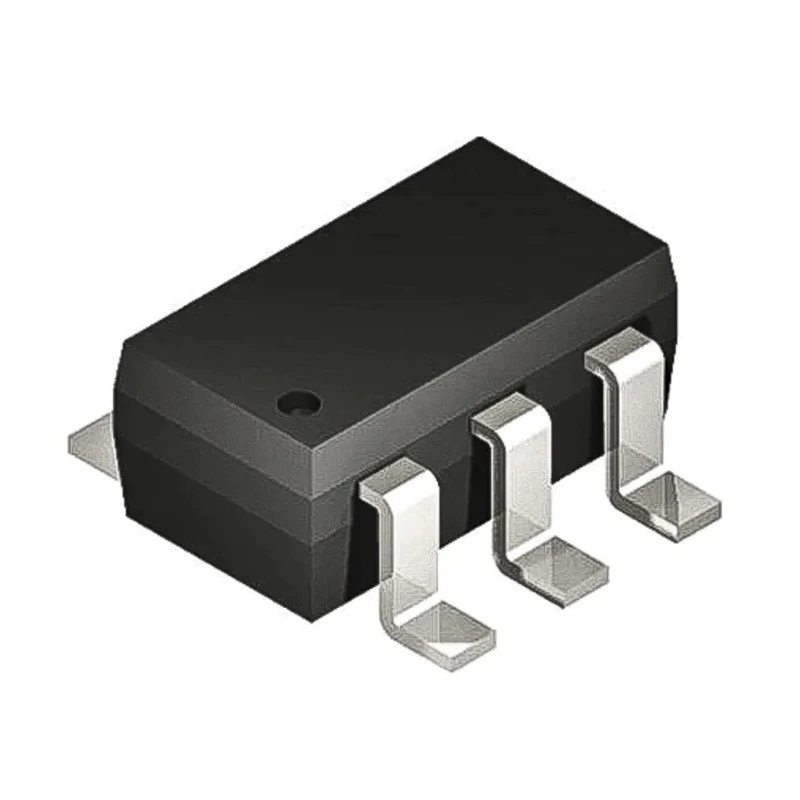

Nexperia High-Speed Surface-Mount Switching Diode 215 mA 100 V SOT-23 6-Pin BAV70,235

Free Delivery in India | Lowest Global Shipping Charges

Nexperia High-Speed Surface-Mount Switching Diode 215 mA 100 V SOT-23 6-Pin BAV70,235

Name: Nexperia High-Speed Surface-Mount Switching Diode 215 mA 100 V SOT-23 6-Pin BAV70,235
Brand: Nexperia
SKU: 95736
Price: 0.02 USD
Availability: InStock



Category Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	BAV70,235
Width	1.4mm
Mount Type	Surface
Series	BAV70
Maximum Operating Temperature	150°C
Package Type	SOT-23
Sub Type	Switching Diode
Minimum Operating Temperature	-65°C
Pin Count	6
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Diode Configuration	Series
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	215mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V
Reverse voltage	VR ≤ 100 V
Low capacitance	Cd ≤ 1.5 pF

Key Features

Encapsulated in a small SOT-23 6-pin plastic package suitable for high-density circuit layouts.
Maximum power dissipation of 250 mW supports robust performance under load.
High switching speed with peak reverse recovery time of 4 nanoseconds.
Wide operating temperature range from -65°C to 150°C ensures reliability in harsh environments.
Low capacitance of 1.5 pF or less reduces signal distortion in high-frequency circuits.
Compliance with automotive standard AEC-Q101 for high durability.
Peak non-repetitive forward surge current rating of 4 A for transient robustness.
Maximum forward voltage drop of 1.25 V ensures efficiency in switching applications.

Product Description

The Nexperia BAV70,235 is a high-speed surface-mount switching diode engineered for demanding electronic and industrial applications requiring rapid switching and high reliability.

Constructed using advanced planar technology, this series diode supports maximum forward current of 215 mA and withstands peak reverse voltages up to 100 V, allowing use in a broad range of circuits.

Packaged in compact SOT-23 6-pin plastic surface-mount form factor, it facilitates optimized PCB layouts especially in high-density environments while maintaining excellent electrical performance.

Its peak reverse recovery time of 4 ns and low junction capacitance of 1.5 pF or less enable high-frequency switching with minimal signal loss and leakage current, making it ideal for switching regulators, general-purpose switching circuits, and automotive electronics requiring fast response.

The diode is rated for power dissipation up to 250 mW and supports non-repetitive forward surge currents of up to 4 A, ensuring durability under transient conditions. It operates reliably within a temperature range from -65°C to 150°C and complies with the automotive qualification standard AEC-Q101.

These Diodes are hermetically sealed in plastic packaging to protect against environmental factors, ensuring long-term stability in industrial, automotive, power supply, and electronic component manufacturing applications.

High-speed switching capability with 4 ns peak recovery time. Low capacitance minimizes distortion in high-frequency circuits. Compact surface-mount SOT-23 package conserves PCB space. Robust 250 mW power dissipation for reliable operation.

Wide temperature range suitable for industrial and automotive use. Compliant with AEC-Q101 automotive standard for quality assurance. Supports forward surge currents for enhanced transient tolerance.

Explore the Electronics & Electricals category at EnvMart for similar high-performance semiconductor devices from leading manufacturers, ensuring trusted quality and advanced technology for your projects.
