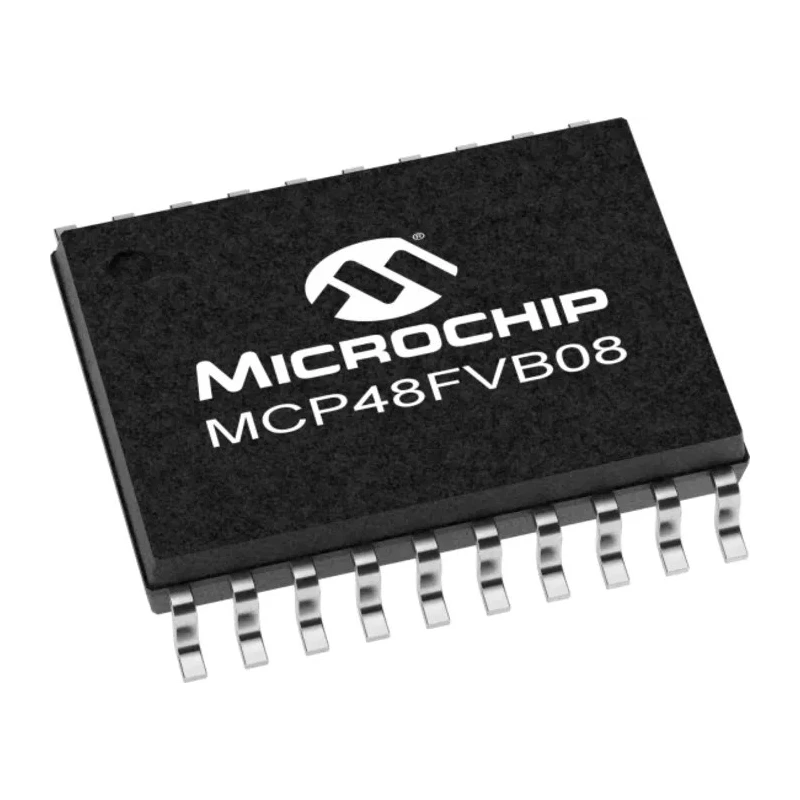

Microchip Digital to Analogue Converter 8 bit 8-Channel SPI Interface 20-Pin TSSOP MCP48FVB08-20E/ST

Microchip MCP48FVB08-20E/ST is a high-performance 8-bit digital to analogue converter featuring eight output channels, implemented with a resistor ladder architecture. Designed in a compact 20-pin TSSOP package with dimensions of 4.5mm by 3.1mm and a height of 1.2mm, it supports a supply voltage from 2.7V to 5.5V, making it adaptable for a wide range of electronic systems.

The device offers a fast settling time of 7.8 microseconds, enabling rapid conversion necessary in precision signal processing. It operates effectively over a temperature range of -40°C to 125°C, ensuring robust performance in industrial and automotive environments except automotive standards compliance is not present. The interface is SPI compatible, facilitating seamless connection with microcontrollers and embedded systems.

Non-volatile memory incorporated in this DAC maintains output settings without power, enhancing reliability for long-term applications. The buffered voltage output delivers stable and accurate analogue signals ideal for control systems, instrumentation, and communication equipment.

Resistor ladder DAC architecture for accurate analogue conversion. 8-bit resolution with eight separate analogue output channels. Operating voltage from 2.7V minimum to 5.5V maximum supply voltage. Fast settling time of 7.8μs for high-speed signal processing.

Robust operation within -40°C to 125°C temperature limits. Compact TSSOP 20-pin packaging for optimized PCB layout. Includes SPI interface for efficient digital communication. Non-volatile memory for persistent configuration retention.

Buffered voltage output ensures precise analogue signals.

This MCP48FVB08-20E/ST DAC from Microchip is suited for electronic designs in industrial automation, laboratory instrumentation, embedded systems, and communication equipment where multi-channel analogue output and SPI compatibility are critical.
