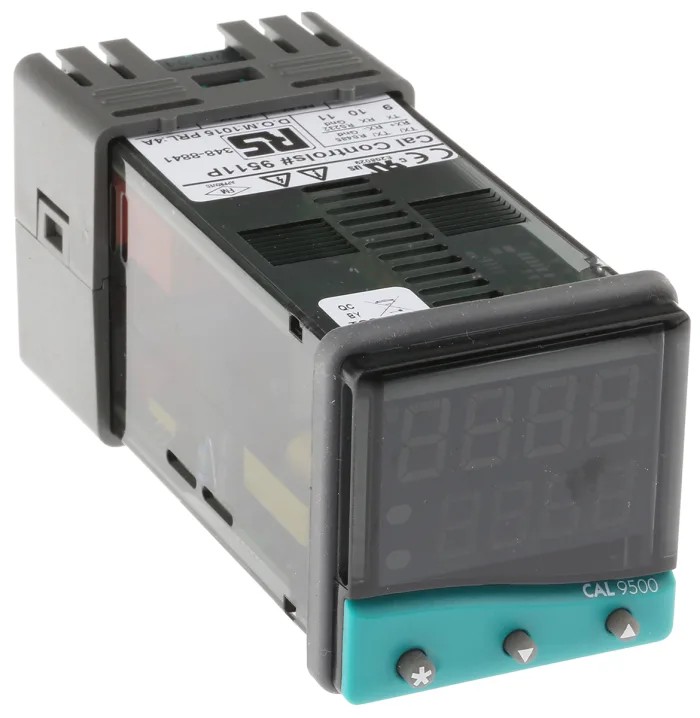

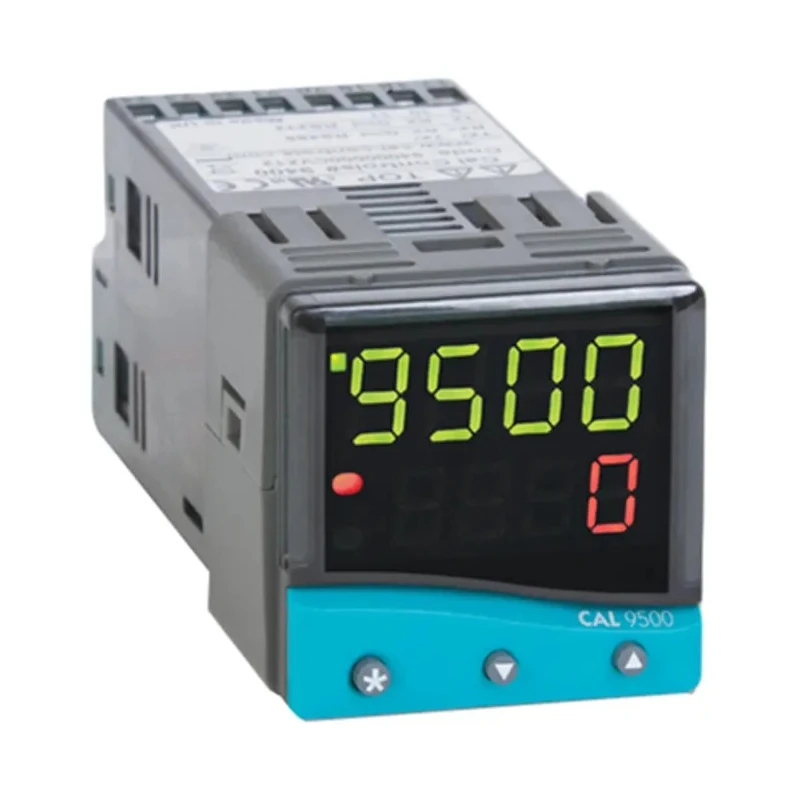

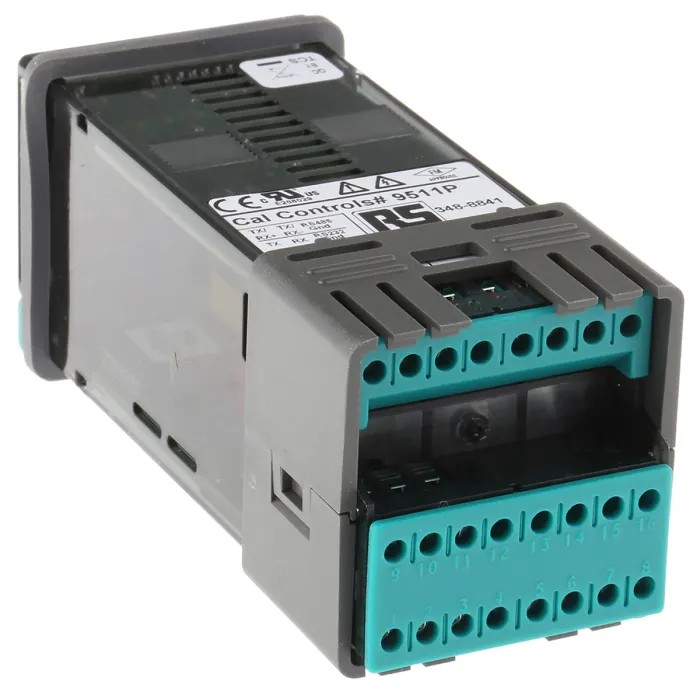

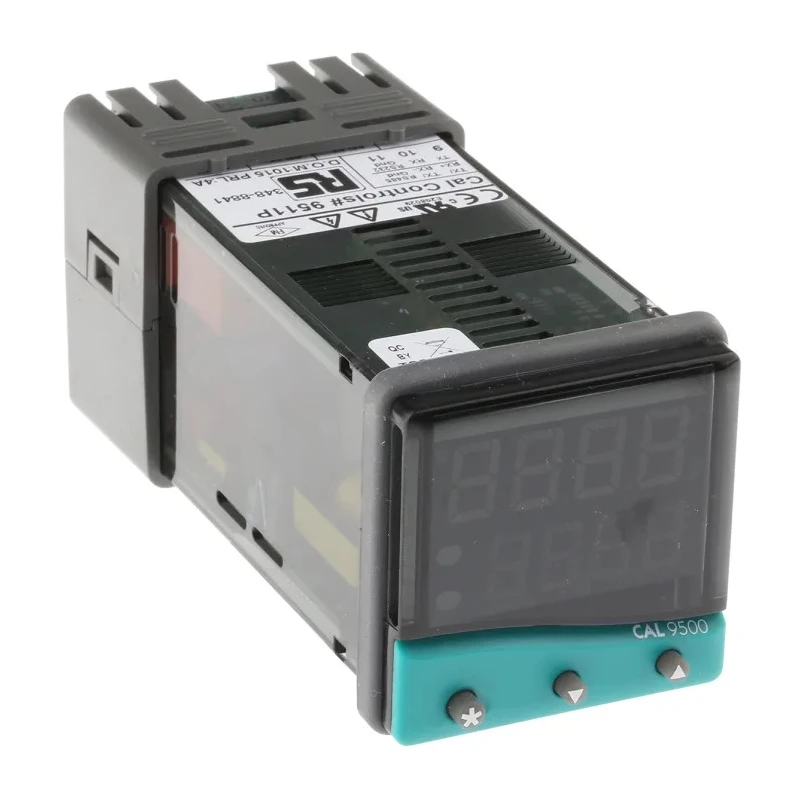

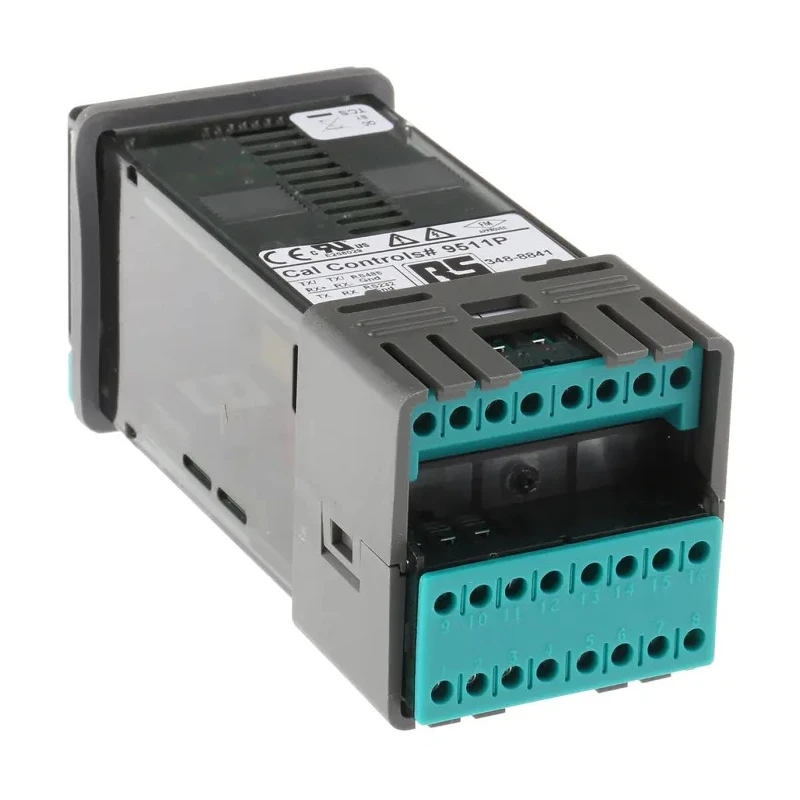

CAL Panel PID Temperature Controller with 2 Relay Outputs 240V AC, LED Display, IP66 Rated, Model 95111PA000

The CAL 95111PA000 Panel PID Temperature Controller is a highly reliable temperature control device featuring 2 relay outputs and an LED display. Operating at a supply voltage up to 240V AC, it is engineered for demanding industrial applications requiring precise temperature regulation.

This model supports input types including PT100 sensors and Thermocouples, enhancing its adaptability across various measurement settings. The compact 1/16 DIN size controller measures 48mm in width and height, with a panel depth of 106.7mm, making it suitable for panel mounting in limited space environments.

Its robust construction includes an IP66 rated enclosure, ensuring protection against dust and water ingress, vital for harsh industrial conditions.

Featuring a dual relay output system and a solid-state relay option, it facilitates versatile control tasks. The 2 x 4 digit LED display and output indicator LEDs provide clear visual feedback of the controller status.

Advanced PID tuning features, including a unique DAC function, help minimize overshoot and stabilize processes effectively. The integrated programmer allows up to 31 programs with 126 segments, ideal for complex temperature profile control in applications such as bottling, food processing, furnaces, kilns, and laboratory equipment.

Its impact-resistant smoked fascia with rubberised buttons ensures durability and ease of use in demanding environments. This temperature controller is certified by CE, cUL, FM, and UL, underscoring its compliance with international safety and quality standards.

Applications include industrial furnace control, plastics manufacturing, rubber processing, and scientific instrumentation requiring reliable temperature management.

CAL 95111PA000 PID Temperature Controller combines precision, durability, and advanced programmability, making it an ideal choice for diverse industrial temperature control applications. Explore other temperature control and automation products in the EnvMart catalog for comprehensive process solutions.

Equipped with dual relay outputs for comprehensive control. Features a 2 x 4 digit LED display with output indicators. Supports input from PT100 sensors and Thermocouples for versatile applications. IP66 rated for robust protection against dust and water ingress.

Compact 48mm x 48mm panel mount design with a panel depth of 106.7mm. Includes advanced PID tuning with DAC function to minimize overshoot. Programmable with up to 31 programs and 126 segments for complex temperature profiles.

Impact-resistant smoked fascia with rubberised buttons for durability. Operates reliably within 0°C to 50°C temperature range. Certified to CE, cUL, FM, and UL standards.
