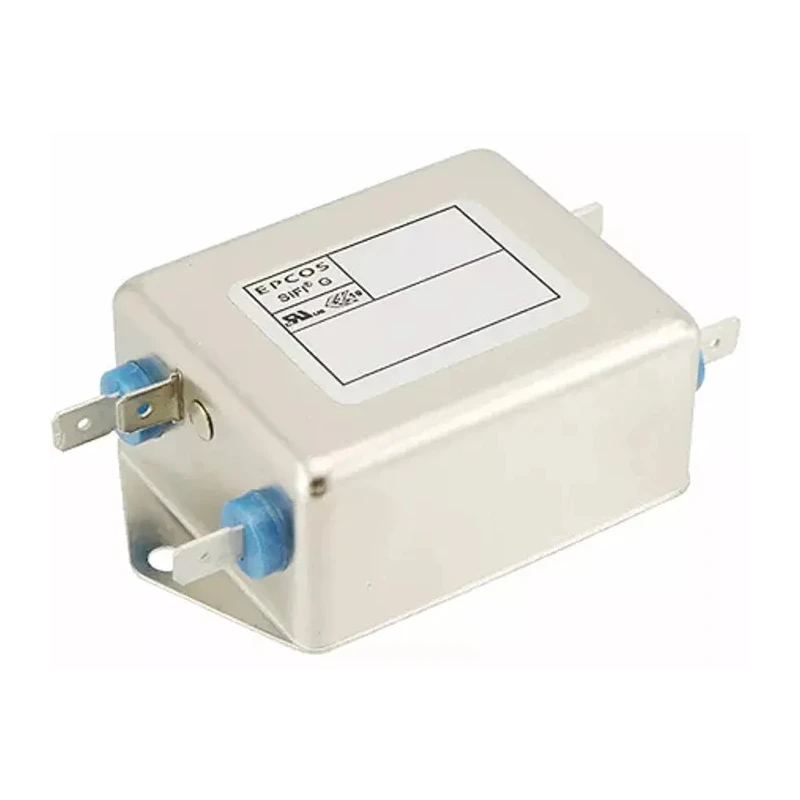

TDK Chassis Mount EMC Filter, 10A, 250V AC/DC, 50Hz/60Hz, Lug Termination, Single Phase B84112G0000M110

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Filter, 10A, 250V AC/DC, 50Hz/60Hz, Lug Termination, Single Phase B84112G0000M110



Category EMI Filters Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	29mm
Length	63mm
Model	B84112G0000M110
Depth	51mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84112G
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2μF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	1
Leakage Current	0mA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL1283
Termination Style	Lug

Key Features

Provides effective electromagnetic compatibility filtering for industrial electronics.
Handles both 50Hz and 60Hz operating frequencies for versatile application.
Rated for up to 10A maximum current and 250V AC/DC voltage.
Chassis mount design allows easy installation and secure fit.
Lug termination style ensures reliable electrical connection.
Supports single phase operation and a single stage of filtration.
UL1283 compliance for enhanced safety and quality assurance.
Compact construction with dimensions of 63mm length, 51mm depth, and 29mm height.

Product Description

TDK B84112G0000M110 chassis mount EMC filter is engineered for demanding industrial applications where electromagnetic interference must be efficiently controlled. Designed for single-phase operation, it accommodates both AC and DC voltages up to 250V and delivers a maximum current of 10A. Its compact footprint makes installation straightforward, allowing integration into tight chassis spaces for effective power line filtration.

This EMC filter excels in safeguarding sensitive electronics from contamination by EMI, making it a staple in telecom equipment, switch-mode power supplies, and advanced data systems. Its lug termination style assures robust and reliable electrical connections, helping maintain consistent performance over time.

With support for 50Hz and 60Hz frequencies, the filter is highly adaptable for worldwide deployment across diverse electrical environments. The 2μF capacitance and 2mH inductance balance insertion loss and filtering performance, targeting a broad range of unwanted frequencies.

Compact dimensions (63mm x 51mm x 29mm) facilitate direct mounting to equipment chassis, and the metal case construction enhances both thermal management and shielding. The product features UL1283 certification, demonstrating compliance with stringent EMC requirements and ensuring peace of mind for designers and integrators.

This model is ideally suited for use in industrial electronics, DC and AC power applications, switch-mode power supply protection, telecom systems, and a variety of commercial and laboratory setups requiring stable, low-noise power input.

Operating temperature from -25°C up to 100°C ensures reliability in harsh environments, while the leakage current is effectively rated at 0mA. The filter’s single stage further streamlines filtering efficiency for most standard power requirements.
