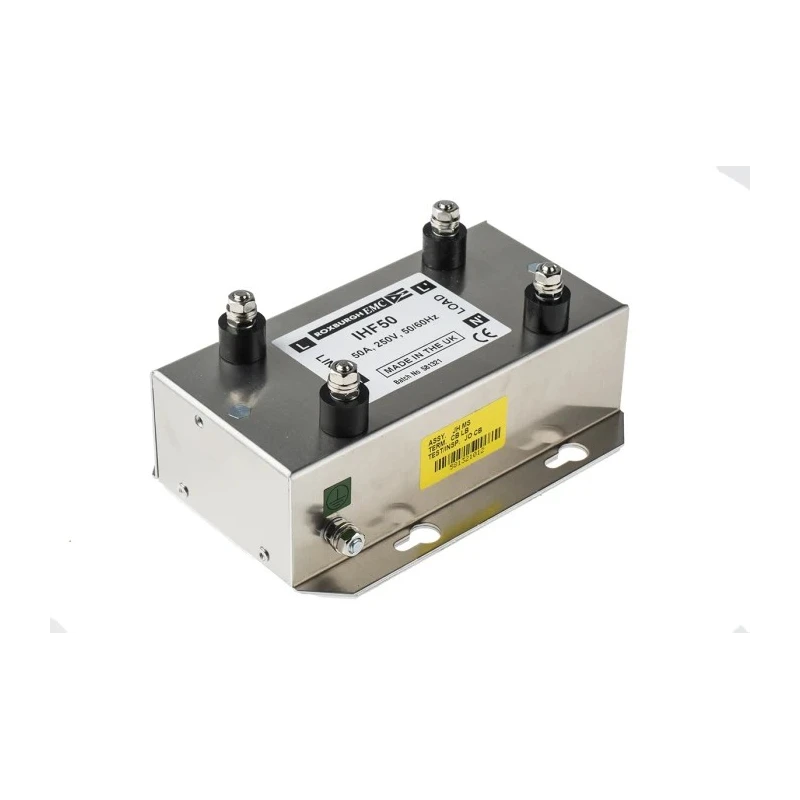

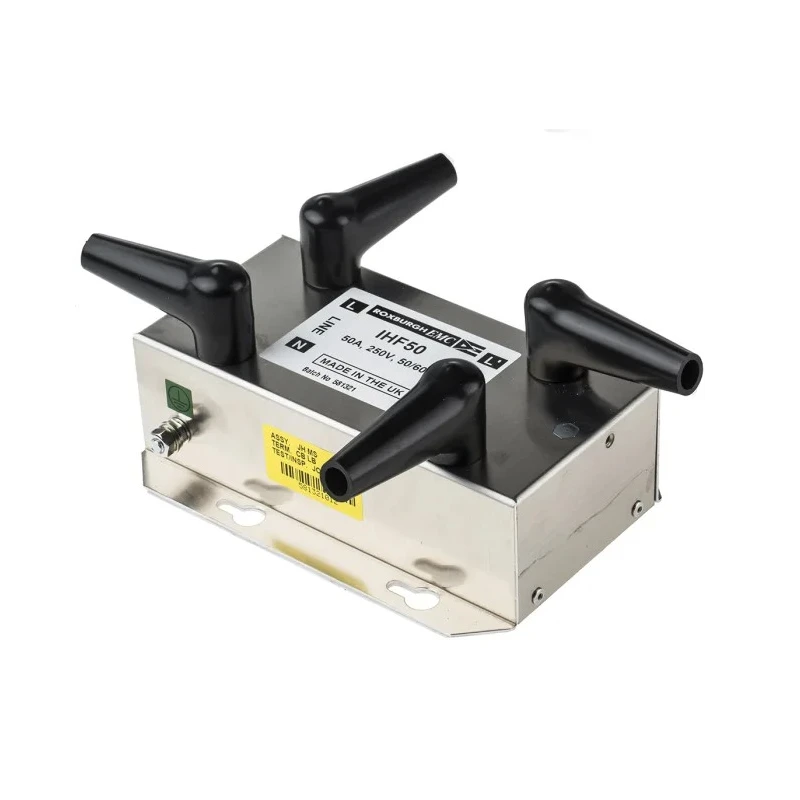

Roxburgh EMC Flange RFI Filter Single Phase 50A 250V AC/DC 60Hz IHF50

Roxburgh EMC IHF50 flange mounted RFI filter is engineered for single-phase power line filtering applications requiring medium performance with low leakage characteristics. With a maximum current of 50A and voltage rating of 250V AC/DC at 60Hz frequency, this filter is suitable for a wide range of industrial motor and electronic component applications.

Featuring a flange mount type, this single-phase filter offers easy installation and robust mechanical stability. The filter provides a capacitance of 2.2mF and an inductance of 1.1mH, effectively suppressing electromagnetic interference and ensuring power quality in industrial environments. Leakage current is kept low at 2.1mA, contributing to energy efficiency and operational safety.

Operating reliably within temperatures from -25°C to 85°C, this filter supports harsh industrial conditions. Its compact dimensions of 174mm length, 55mm height, and 120mm depth allow for flexible integration into equipment setups. The device maintains minimal power loss of 5W, further enhancing efficiency.

Approval and compliance with EN 60939, IEC950, VDE0871, EN55011, and EN55022 standards ensure reliability and safety in demanding environments. The resistance rating of 2mΩ complements its performance for noise reduction in electronic power systems.

This Roxburgh EMC IHF series filter is ideal for use in industrial, electronic components, power connector, and EMI filter applications where electromagnetic interference suppression is critical for operational stability.

Designed for single phase operation with flange mounting for secure installation. Maximum current rating of 50 amps suitable for industrial motor applications. Supports AC/DC voltage up to 250 volts with a 60Hz frequency.

Low leakage current of 2.1mA ensures efficiency in filtering electromagnetic interference. Robust build with operating temperature range from -25°C to 85°C. Compact dimensions with length 174mm, height 55mm, and depth 120mm for easy integration.

Power loss minimized to 5 watts, providing energy-efficient filtering performance. Certified to EN 60939 standard and approved by IEC950, VDE0871, EN55011, and EN55022. Capacitance of 2.2mF and inductance of 1.1mH enabling effective noise suppression.

Ideal for industrial, electronic components, power connectors, and EMI filter applications. Explore Roxburgh EMC products on EnvMart for comprehensive electronic component solutions and industrial filtration systems.
