TDK 3.3 mH Ferrite Power Line Choke 12 A Max DC Current 8.4 mΩ DC Resistance 250V AC B82726S6123N020

Free Delivery in India | Lowest Global Shipping Charges

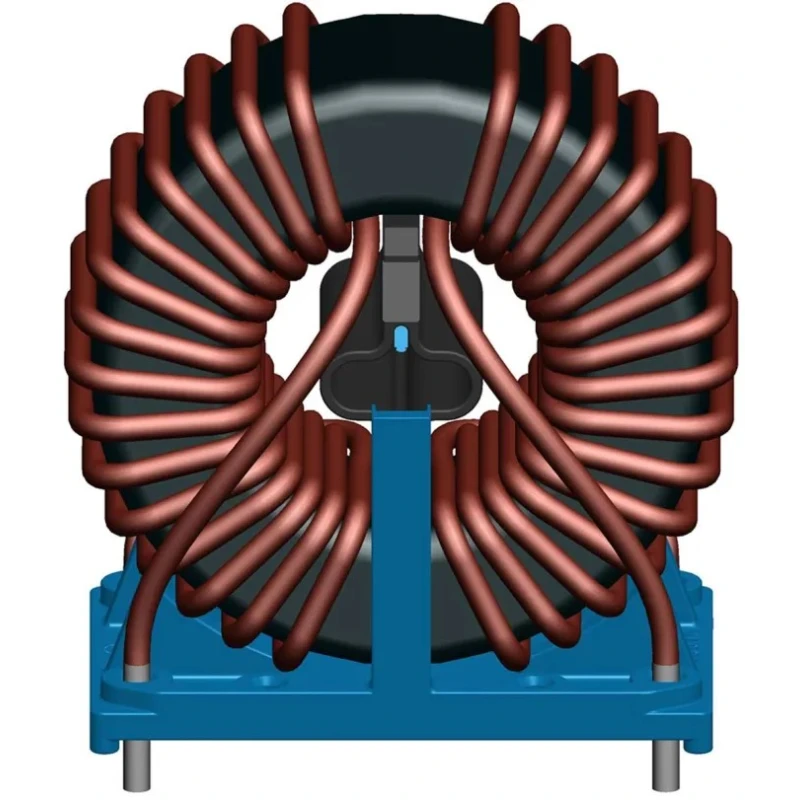

TDK 3.3 mH Ferrite Power Line Choke 12 A Max DC Current 8.4 mΩ DC Resistance 250V AC B82726S6123N020



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	52mm
Brand	TDK
Height	55mm
Length	52mm
Model	B82726S6123N020
Depth	28mm
Packaging	Box
Mount Type	Radial
Series	B82726S
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	10kHz
Core Material	Ferrite
Maximum Voltage	250V ac
Inductance	3.3mH
Standards/Approvals	EN, ENEC, IEC, RoHS, UL, VDE
Maximum DC Current	12A
Maximum DC Resistance	8.4mΩ
Inductance Tolerance	±30 %
Termination Style	PC Pin
Maximum Self Resonant Frequency	10kHz
Lead Pitch	35.65mm
Lead Diameter	1.8mm
EPCOS 3.3 mH ±30% Ferrite Toroidal Inductor, Max SRF	10kHz, 10A Idc, 13.5mΩ Rdc, B82725SBrand: EPCOS

Key Features

The choke features a ferrite core material with a radial mount type for stability.
It has an inductance tolerance of ±30% and operates up to 125°C.
Its dimensions include a diameter of 52 mm, height of 55 mm, and depth of 28 mm with a lead pitch of 35.65 mm.
It supports a maximum self-resonant frequency of 10 kHz and is suited for suppression of common-mode interference.
The device complies with industry standards including EN, ENEC, IEC, RoHS, UL, and VDE for quality assurance.
Termination is via PC pin leads with a lead diameter of 1.8 mm, ensuring ease of mounting and wave soldering compatibility.

Product Description

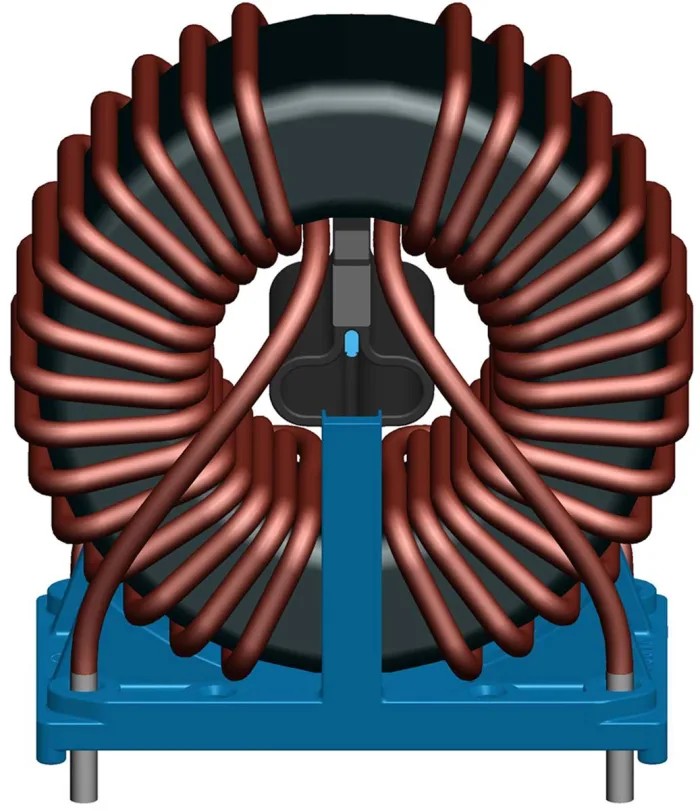

TDK B82726S6123N020 3.3 mH Ferrite Power Line Choke is a high-quality passive component designed for efficient suppression of common-mode interferences in power line applications. It features a ferrite core material with a current-compensated ring core double choke design, ideal for industrial and electronic circuit applications.

The choke supports a maximum DC current of 12 A and operates reliably up to a temperature of 125°C, with a maximum voltage rating of 250V AC. Its inductance tolerance of ±30% suits applications requiring moderate precision. The device is constructed with a polycarbonate base plate and spacer (UL 94 V-0) and a sector winding optimized for wave soldering.

With physical dimensions of 52 mm diameter, 55 mm height, and 28 mm depth, plus a lead pitch of 35.65 mm and lead diameter of 1.8 mm, this power line choke ensures robust mounting and connection stability. The maximum self-resonant frequency is 10 kHz, making it suitable for suppression in switching-mode power supplies and other electrical filter functions.

This TDK power line filter meets multiple regulatory and industry standards, including EN, ENEC, IEC, RoHS, UL, and VDE, guaranteeing performance and reliability in industrial, HVAC, manufacturing, and electronic equipment settings.

The choke uses a ferrite core for effective interference suppression. Radial mounting style facilitates easy PCB integration. Handles up to 12 A DC current, suitable for medium power applications. Maximum DC resistance of 8.4 mΩ minimizes power losses.

Conforms to rigorous international safety and quality standards. Compact dimensions allow versatile installation options.

This component is ideal for electronic equipment designers and engineers seeking reliable noise suppression with compliance to global standards. Explore more TDK Power Line Filters and inductors on EnvMart, your trusted industrial components partner.
