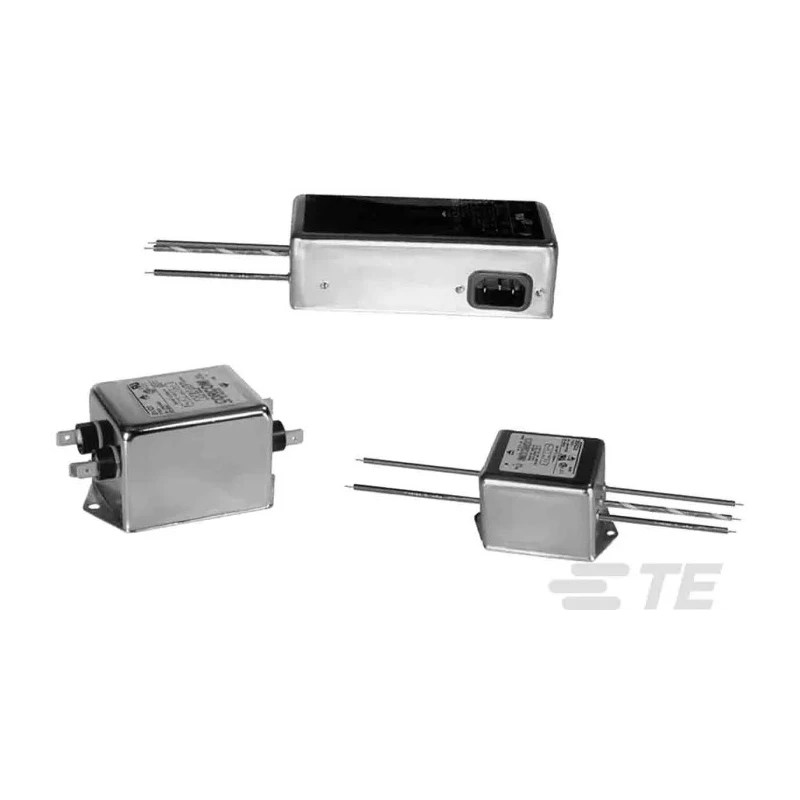

TE Connectivity Corcom Q Flange RFI Filter 20A 250V AC 50Hz, 60Hz Single Phase 20VQ1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 52.6mm |
| Length | 168.1mm |
| Model | 20VQ1 |
| Depth | 57.9mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | Corcom Q |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Maximum Voltage | 250V ac |
| Standards/Approvals | RoHS |
| Termination Style | Fast-On |
Key Features
- High attenuation of common and differential mode interference from 10kHz to 30MHz.
- Designed for single phase industrial applications with 20A maximum current rating.
- Mount type is flange with fast-on termination style for easy installation.
- Operating frequency supports both 50Hz and 60Hz power supplies.
- Compact dimensions of approximately 168.1mm length, 52.6mm height, and 57.9mm depth.
- Temperature operation range from -10°C to 40°C suitable for varied environments.
- RoHS compliant ensuring environmentally friendly manufacturing standards.
- Applications include switching power supplies, transient current filtering, HVAC, and consumer electronics.
Product Description
TE Connectivity 20VQ1 Corcom Q series Flange RFI Filter is engineered to provide highest performance in mitigating interference caused by switching power supplies across consumer electronics and industrial applications.
This RFI filter is optimized to attenuate both common and differential mode interference effectively from frequencies of 10kHz to 30MHz, ensuring stable operation of sensitive electronics.
Designed for single phase applications, it supports a maximum current of 20 amperes and maximum voltage of 250 volts AC, with an operating frequency suitable for both 50Hz and 60Hz power systems.
The flange mount configuration paired with fast-on termination style facilitates straightforward mounting and quick connection, reducing installation time in complex industrial setups.
With dimensions measuring 168.1mm in length, 52.6mm in height, and 57.9mm in depth, the compact form factor fits efficiently into power lines, maintaining minimal space usage without compromising filtering performance.
This unit operates reliably in ambient temperatures ranging from -10°C to 40°C and complies with RoHS standards, making it an environmentally responsible choice.
Typical use cases include improvement of power quality in HVAC systems, switching power supplies with transient currents, and other single phase industrial environments requiring robust EMI suppression.
High attenuation of common and differential mode interference from 10kHz to 30MHz. Single phase design with 20A maximum current capacity. Flange mounting with fast-on terminals for quick installation. Operating frequency compatibility with 50Hz and 60Hz power supplies.
Compact dimensions optimize space utilization in power lines. Wide temperature range for diverse industrial environments. RoHS compliant ensuring safety and environmental standards. Applications in consumer electronics, HVAC, power supply filtering.
Manufactured in China under stringent quality controls. Explore our comprehensive selection of EMI and power line filters at EnvMart for industrial-grade electronic components suitable for demanding technical applications.
Explore more products in our EMI Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this RFI filter is 20A.
This model supports a maximum voltage of 250V AC.
It operates at both 50Hz and 60Hz frequencies.
The dimensions are approximately 168.1mm in length, 52.6mm in height, and 57.9mm in depth.
It operates within a temperature range of -10°C to 40°C.
This model features a flange mount configuration with fast-on termination style for easy installation.
It effectively mitigates both common and differential mode interference from 10kHz to 30MHz.
Yes, it is RoHS compliant, ensuring it meets environmental manufacturing standards.
It is suitable for applications such as switching power supplies, HVAC systems, and consumer electronics.
This filter belongs to the Corcom Q series.
The termination style of this model is fast-on, allowing for quick connections.
It is manufactured in China under stringent quality controls.
