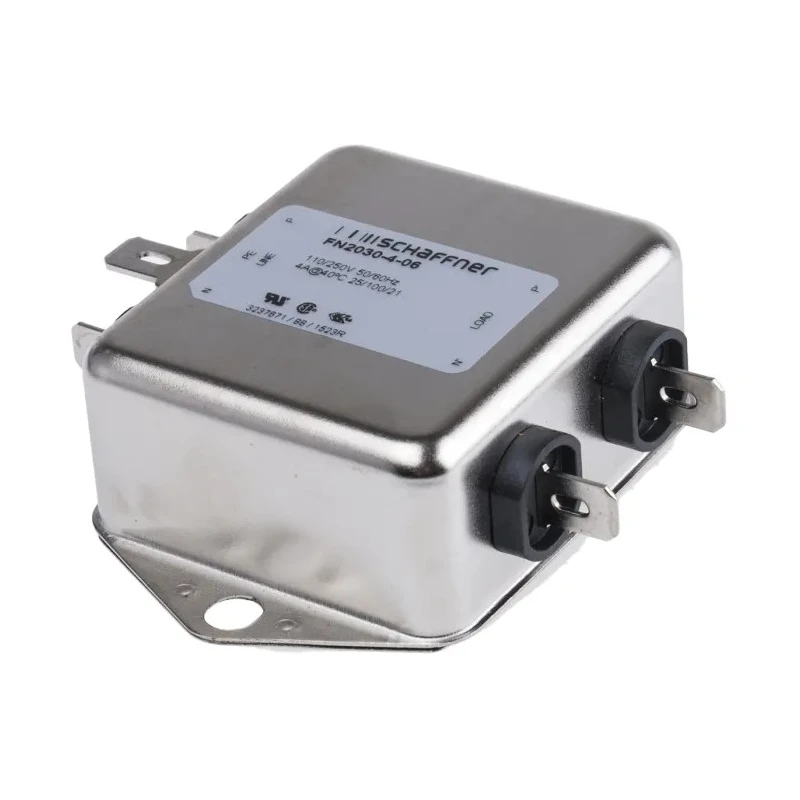

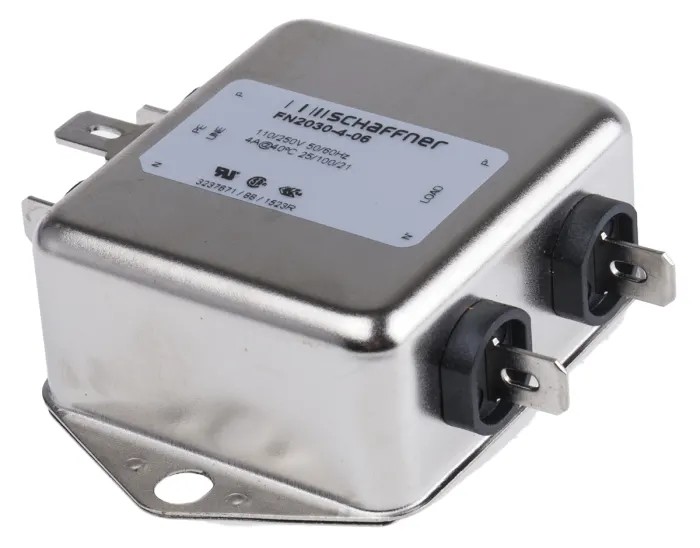

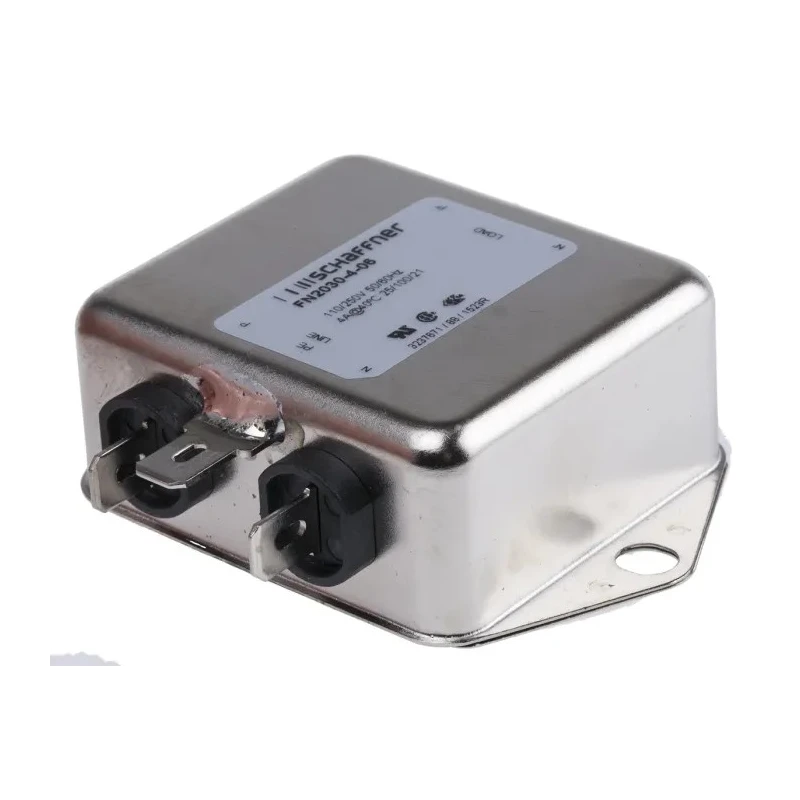

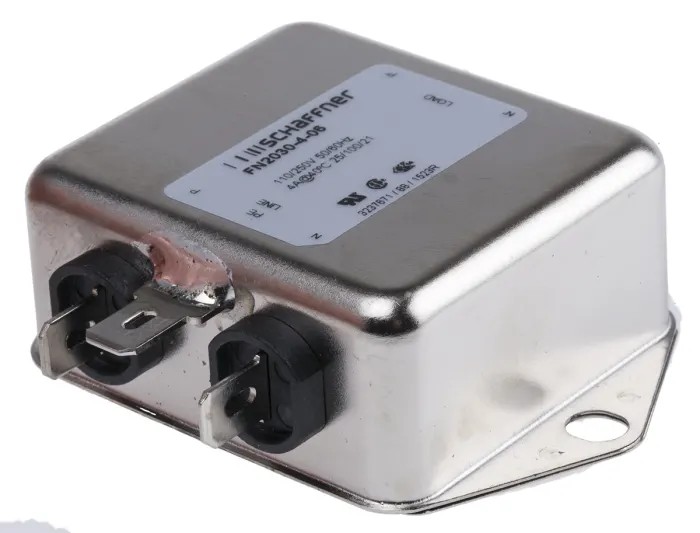

Schaffner Chassis Mount EMI Filter 4 A 250V ac/dc 400Hz Fast-On Single Phase FN2030

Schaffner FN2030-4-06 is a premium chassis mount EMI filter designed for effective electromagnetic interference suppression in single-phase power line applications. Rated for a maximum current of 4 A and voltage of 250 V ac/dc at an operating frequency of 400 Hz, this filter uses a fast-on termination style for rapid and reliable chassis installation.

This EMI filter contains a single stage with a capacitance of 330nF and inductance of 14mH. It supports an operating temperature range from -25°C to 100°C, ensuring robust performance in demanding industrial, commercial, and medical environments. The filter offers low leakage current (520 μA) and minimal resistance (1mΩ) to optimize electrical efficiency while maintaining a power loss of only 2.9 W.

The compact dimensions (71 mm length, 46.6 mm depth, 22.3 mm height) facilitate easy installation on equipment chassis. These filters are ideal for use in electrical and electronic equipment, consumer goods, household, medical devices, and electronic data processing equipment requiring high performance EMI attenuation. The FN2030 series offers high differential mode attenuation and excellent thermal behavior, making it suitable for noisy environments.

Additional options include medical-grade B type, safety A type, and surge pulse protection to accommodate specialized industry applications. The filters can be customized with various terminal options to match connection requirements. Janfficient chassis mounting design enables fast and secure installation, enhancing productivity during assembly.

Schaffner FN2030-4-06 conforms to standards including UL 1283, CSA 22.2 No.8 1986, EN 133 200, and IEC 60939, assuring compliance with international safety and performance criteria. This filter series represents a high quality, reliable solution for EMI mitigation across a wide range of industrial and commercial scenarios.

The filter supports a maximum current of 4 A and operates at 250V ac/dc voltage. It features a chassis mount type with fast-on termination style for easy installation. Designed specifically for single-phase electrical systems with 400Hz operating frequency.

It has a capacitance of 330nF and inductance of 14mH ensuring high attenuation performance. Operational temperature range is from -25°C to 100°C suitable for various industrial environments. Compact dimensions of 71 mm length, 46.6 mm depth, and 22.3 mm height for convenient mounting.

Low leakage current of 520 μA and power loss of 2.9W enhance reliability and efficiency. Resistance is minimal at 1 mΩ to reduce electrical losses during operation. Premium filter with excellent thermal behavior, suitable for consumer, household, medical, and electronic data processing equipment.

Optional versions include medical (B type), safety (A type), and surge pulse protection. Explore the wide selection of EMI Filters and protective components at EnvMart for all your electronic and industrial filtering needs.
