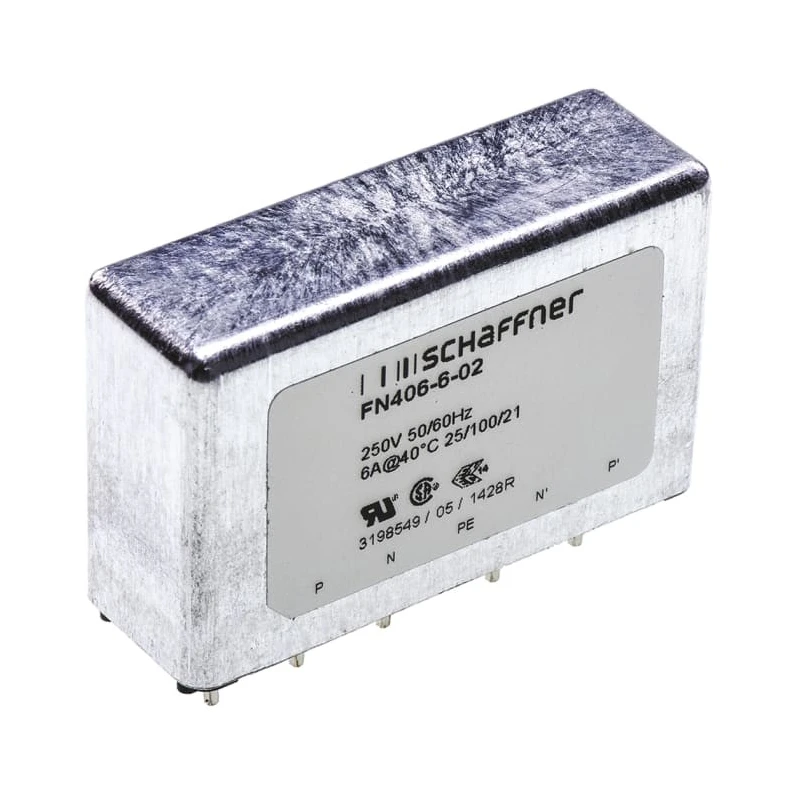

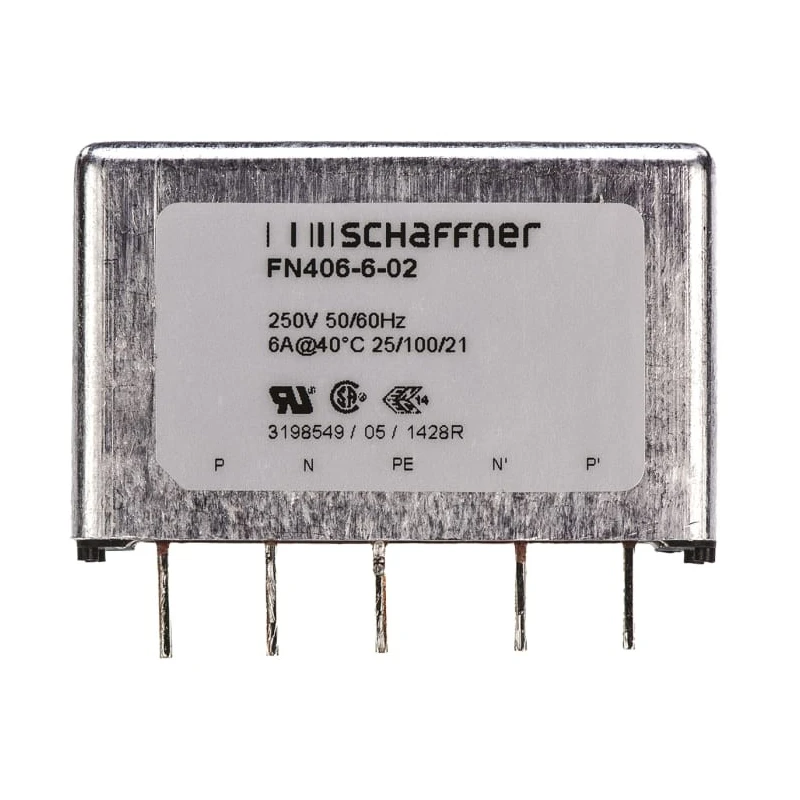

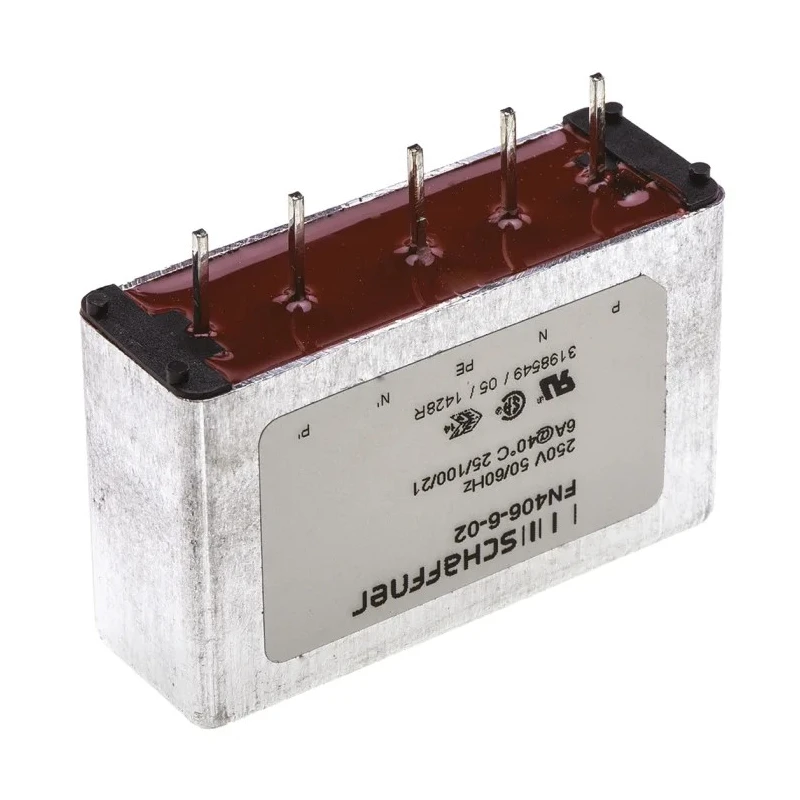

Schaffner PCB EMC Filter 6A 250V AC 400Hz Pin 1 Phase FN406
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 29.5mm |
| Length | 45mm |
| Model | FN406 |
| Depth | 15mm |
| Mount Type | PCB |
| Operating Frequency | 400Hz |
| Series | FN406 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 373μA |
| Maximum Voltage | 250V ac |
| Inductance | 780μH |
| Standards/Approvals | UL 94 V-0 |
| Termination Style | Pin |
Key Features
- Compact PCB-mountable EMC filter for single-phase applications.
- Rated for a maximum operating current of 6A and voltage of 250V AC.
- Supports operating frequencies up to 400Hz with pin termination style.
- Designed with low-profile, durable form factor for efficient installation.
- Offers high attenuation performance and excellent thermal behavior.
- Leakage current rated at 373μA with inductance of 780μH.
- UL 94 V-0 approval for flammability safety standards.
- Suitable for electrical and electronic equipment, test and measurement devices, and medical equipment.
Product Description
Schaffner FN406-6-02 PCB EMC Filter is engineered for efficient electromagnetic interference suppression in single-phase power systems. With a maximum current rating of 6A and voltage capability of 250V AC, this filter provides robust performance in demanding electronic environments. The operating frequency of up to 400Hz makes it suitable for various industrial, laboratory, and commercial applications.
The FN406-6-02 features a pin termination style and compact PCB-mountable design, allowing for fast, reliable integration into assemblies. Its low profile and sturdy construction ensure minimal space consumption while providing reliable filter operation.
Compact and low-profile footprint designed for PCB mounting. Excellent attenuation characteristics for conducted EMI, thanks to optimized internal chokes and thermal behavior. High inductance value of 780μH and capacitance of 100nF for effective noise reduction.
Leakage current rated at just 373μA, maximizing safety and compliance. Capable of operating across a wide temperature range from -25°C to 100°C. UL 94 V-0 flammability approval confirms suitability for safety-critical applications.

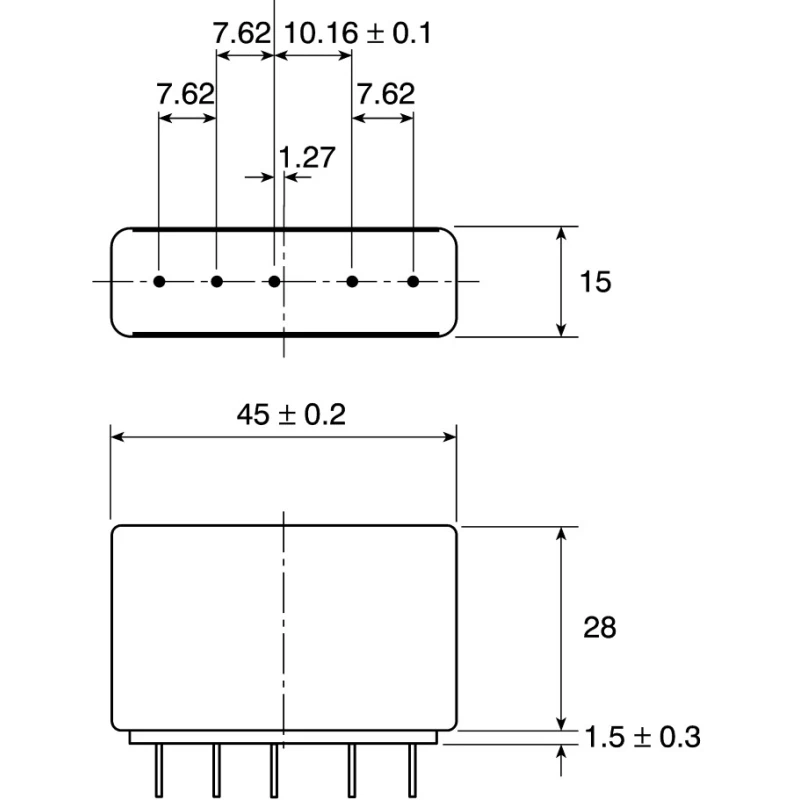

Dimensions: Length 45mm, Height 29.5mm, Depth 15mm for easy PCB integration.
This filter addresses EMI challenges commonly encountered in small to medium-sized machines, switch-mode power supplies, single-phase power conversion, household equipment, and instrumentation. The design is tailored for applications in industrial automation, laboratory instrumentation, household electronics, and medical devices requiring EMI suppression.
One unit per box, ready for installation and production line insertion. Explore more products from Schaffner and the EMI Filters category on EnvMart for advanced noise suppression solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current for this model is 6A.
It is rated for a maximum voltage of 250V AC.
This filter supports operating frequencies up to 400Hz.
The dimensions are 45mm in length, 29.5mm in height, and 15mm in depth.
This model features a PCB mounting type.
The leakage current is rated at 373μA.
The inductance value is 780μH.
It can operate across a temperature range from -25°C to 100°C.
Yes, it has UL 94 V-0 approval for flammability safety standards.
It is suitable for electrical and electronic equipment, test and measurement devices, and medical equipment.
The capacitance value is 100nF.
This filter is designed for single-phase applications.
