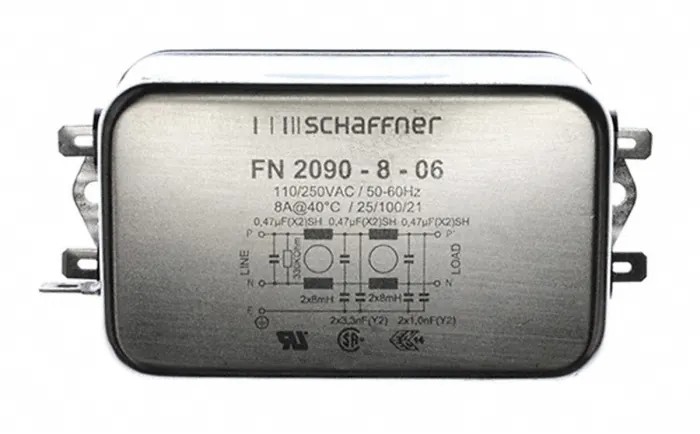

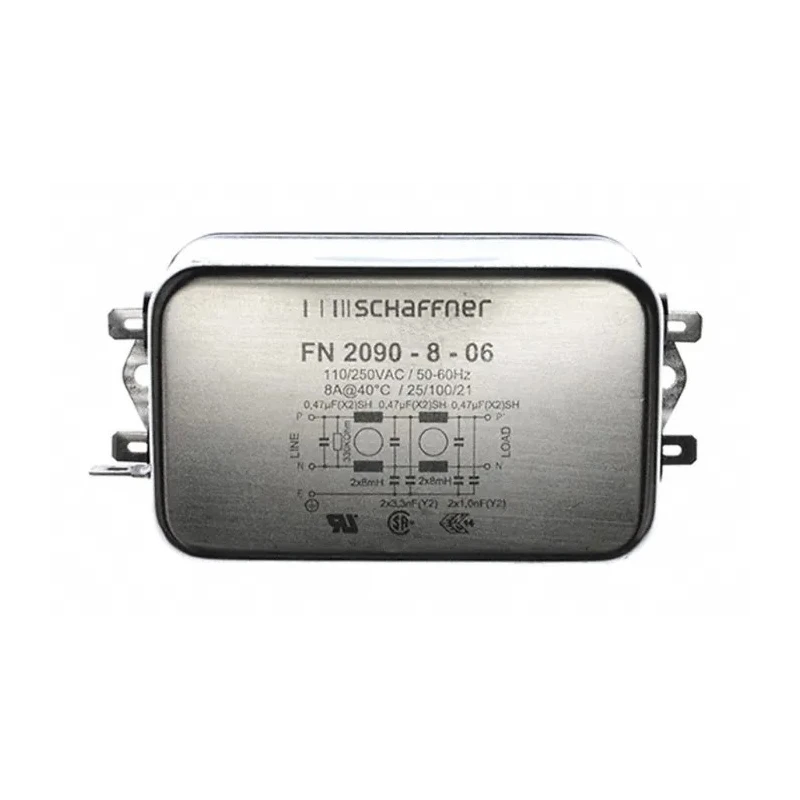

Schaffner Chassis Mount EMI Filter, 8A, 250V AC/DC, 0Hz - 400Hz, Fast-On Terminals FN2090

The Schaffner FN2090-8-06 is a robust EMI filter engineered to mitigate electromagnetic interference in a wide range of electrical and electronic environments. With an 8A maximum current rating and support for up to 250V AC or DC, this filter is ideally suited for demanding applications where reliability and noise suppression are essential.

Its chassis mount design ensures solid integration within control panels or industrial enclosures, providing steady performance and protection for sensitive equipment. Fast-On terminals simplify wiring and allow efficient installation and maintenance. The two-stage filtering system delivers high attenuation for both differential and common-mode noise, ensuring cleaner power for connected devices.

The filter operates across a frequency range from DC (0Hz) to 400Hz, supporting both single-phase AC and DC supply configurations. Low leakage current and high resistance contribute to safety and compliance with industrial standards. Dimensions of 113.5 x 57.5 x 45.4 mm (L x D x H) make the filter compact and easy to integrate within space-constrained cabinets.

Applications include electrical and electronic equipment, building automation, machinery, consumer goods, medical devices, electronic data processing, and office automation systems. The FN2090 series also offers optional medical and safety variants, as well as overvoltage protection if required.

Key features of this filter include high attenuation, easy chassis mounting, reliable Fast-On terminations, durable industrial construction, wide voltage and frequency support, and stable filter performance ideal for industrial, commercial, and laboratory installations.

The FN2090-8-06 is a part of Schaffner's proven FN2090 series, trusted for effective EMI suppression across multiple sectors. Explore the EMI Filters category for related solutions and browse Schaffner's portfolio for further variants matched to your technical needs.
