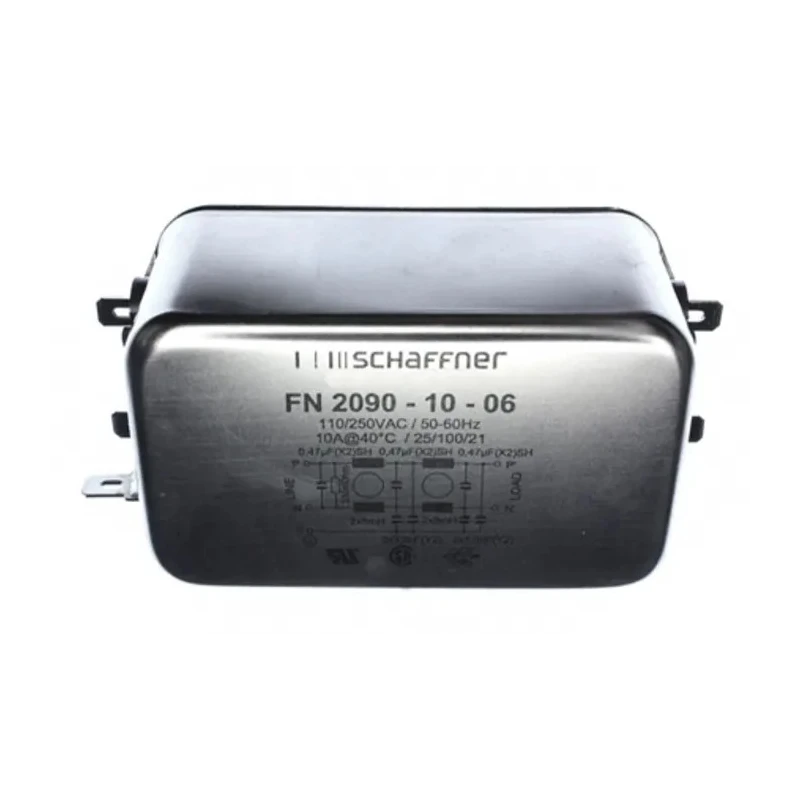

Schaffner Chassis Mount EMI Filter Fast-On 1 Phase, 10A, 250V AC/DC, Model FN2090
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 45.4mm |
| Length | 85mm |
| Model | FN2090 |
| Depth | 54mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 0, 400Hz |
| Series | FN2090 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 330kΩ |
| Capacitance | 470nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 10A |
| Number of Phases | 1 |
| Leakage Current | 670μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 8mH |
| Termination Style | Fast-On |
| Power Loss | 8.4W |
Key Features
- Provides EMI suppression for noisy electrical and electronic equipment.
- Supports 10A maximum current and 250V AC/DC, suitable for single-phase applications.
- Features chassis mount design with fast-on termination for quick installation.
- Two-stage filtration offering high differential and common-mode attenuation.
- Wide operating frequency range from 0Hz to 400Hz.
- Operating temperature range from -25°C to 100°C to ensure reliable performance.
- Leakage current rated at 670μA and power loss of 8.4W for efficient operation.
Product Description
The Schaffner FN2090-10-06 is a high-performance chassis mount EMI filter specifically engineered to suppress electromagnetic interference in electrical and electronic equipment. Designed for applications requiring effective line filtering at up to 10A and 250V AC/DC, this filter is well-suited for industrial machinery, building automation, medical devices, office automation systems, and consumer electronics.
This model offers fast-on terminals, allowing efficient and robust electrical connections during installation. Its two-stage filtration system ensures exceptional attenuation of both differential and common-mode noise throughout a broad frequency range, helping maintain compliance and stable operation in sensitive environments. The filter supports operating frequencies from 0Hz up to 400Hz, providing versatility for both AC and DC circuit protection.
With a compact form factor measuring 85mm in length, 54mm in depth, and 45.4mm in height, the FN2090-10-06 can be conveniently integrated into control panels or equipment enclosures. The chassis mount feature further streamlines installation on a variety of surfaces. Engineered for durability, this EMI filter operates within an ambient temperature range of -25°C to 100°C, ensuring stable filtering efficacy under diverse environmental conditions.
Key specifications include a maximum leakage current of 670μA, power loss of 8.4W, 470nF capacitance, and 8mH inductance. The device is suitable for 1-phase systems, uses fast-on termination style, and offers reliable resistance rated at 330kΩ. Its construction meets stringent industrial standards and is sourced from Thailand, reflecting a commitment to quality and consistency.
Typical use cases for the Schaffner FN2090-10-06 include electrical/electronic equipment, consumer goods, machinery, medical equipment, building and office automation, and communication processing devices. Its two-stage filtering ensures noise reduction and compliance for sensitive applications.
Explore more chassis-mount EMI filters and upgrades in the Power Line Filters category for a wider range of suppression solutions. Browse Schaffner for industrial-grade electromagnetic compatibility products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN2090 has a maximum current rating of 10A, making it suitable for single-phase applications.
This model is rated for a maximum voltage of 250V AC/DC, allowing it to be used in various electrical applications.
It operates within a frequency range of 0Hz to 400Hz, providing versatility for both AC and DC circuits.
The filter measures 85mm in length, 54mm in depth, and 45.4mm in height, allowing for easy integration into control panels.
It features Fast-On termination style, which allows for efficient and robust electrical connections during installation.
The leakage current for the FN2090 is rated at 670μA, ensuring efficient operation while minimizing interference.
This model has a power loss of 8.4W, contributing to its efficient operation in electrical systems.
It operates effectively within a temperature range of -25°C to 100°C, ensuring reliable performance in various environments.
The FN2090 features a two-stage filtration system, offering high differential and common-mode attenuation for effective noise suppression.
The capacitance of the FN2090 is rated at 470nF, which plays a key role in its filtering capabilities.
This EMI filter is suitable for applications in industrial machinery, medical devices, building automation, and consumer electronics.
