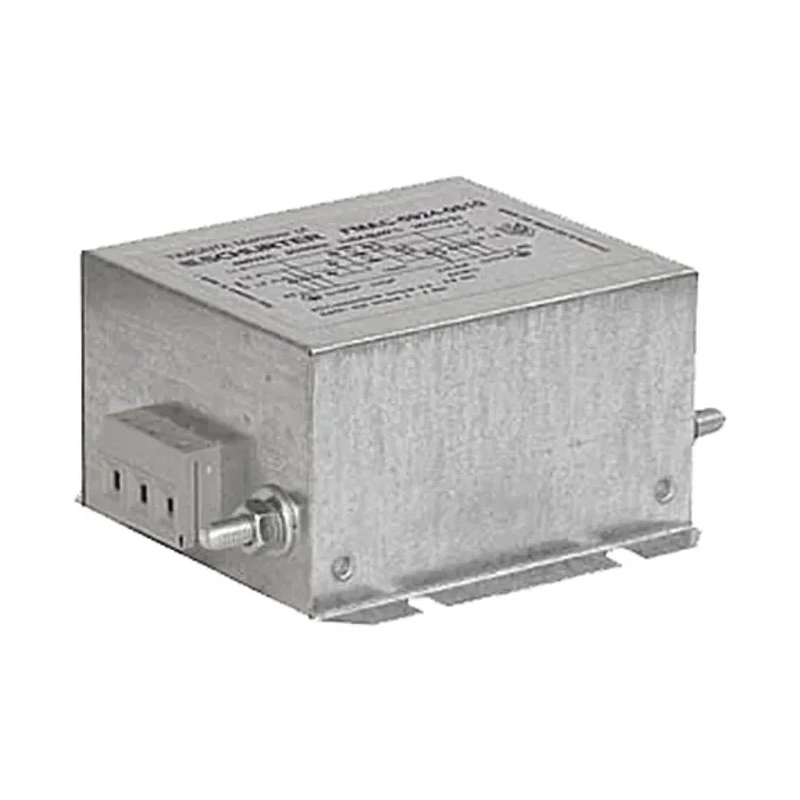

Schurter FMAC-0934-3610 RFI Power Line Filter, 36A, 480V AC, Chassis Mount, 60Hz, Screw Terminals
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 66mm |
| Length | 151mm |
| Model | FMAC-0934-3610 |
| Depth | 250mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FMAC |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 3.32mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 36A |
| Number of Phases | 3 |
| Leakage Current | 8.6mA |
| Maximum Voltage | 480V ac |
| Standards/Approvals | IEC 60068-1, IEC 61140, UL 94V-0 |
| Termination Style | Screw |
| High attenuation in symmetric and asymmetric mode | 10 kHz → 30 MHz |
Key Features
- Rated for 36A maximum current at 480V AC for demanding industrial power filtering.
- Operates at 60Hz frequency with a robust single-stage filter design for effective EMI suppression.
- Supports chassis mounting with secure screw terminal connections for fast installation.
- High attenuation in symmetric and asymmetric modes from 10kHz to 30MHz ensures noise reduction.
- Leakage current of 8.6mA enables installation with sensitive electronic equipment.
- Temperature operating range from -25°C to 100°C for challenging environments.
- Physical dimensions are 151mm (L) x 66mm (H) x 250mm (D) for easy enclosure fit.
- Low resistance of 3.32mΩ maintains energy efficiency.
Product Description
The Schurter FMAC-0934-3610 is a high-performance RFI power line filter engineered to suppress electromagnetic interference in three-phase industrial electrical systems. Designed to support equipment with a maximum current rating of 36A and a line voltage up to 480V AC, this filter ensures reliable operation in environments where electrical noise could disrupt sensitive systems.
This RFI filter incorporates a robust single-stage design with a high level of attenuation for both symmetric and asymmetric signals, effectively filtering interference within the frequency range of 10kHz to 30MHz. Its screw-terminal connections make installation simple and secure, while the compact chassis mount configuration conserves valuable panel space.
Built for industrial reliability, the FMAC-0934-3610 suits a wide range of demanding applications - including use with frequency converters, stepper motors, and UPS systems. The component can operate across a broad temperature range from -25°C up to 100°C, with a low leakage current of 8.6mA that ensures compatibility with sensitive electronics.
Its electrical resistance is just 3.32mΩ, preserving energy efficiency in power transmission. Physical dimensions are 151mm in length, 66mm in height, and 250mm in depth, enabling straightforward integration into electrical cabinets or equipment enclosures.
Safety and quality are assured, with compliance to prominent standards including IEC 60068-1, IEC 61140, and UL 94V-0. These features make the device ideal for industrial, manufacturing, and HVAC installations where reliable EMI suppression is crucial.
The filter is engineered to meet the stringent needs of commercial and industrial users, ensuring uninterrupted operation of mission-critical equipment in sectors such as automation, process control, energy management, and more. Professionals will appreciate the easy mounting method, clear terminal style, and consistent Schurter build quality.
When selecting power line EMI/RFI filtration for electrical panels or equipment, the Schurter FMAC-0934-3610 is a versatile solution supporting enhanced performance, safety, and regulatory compliance for demanding industrial applications.
For more RFI filter solutions and Schurter-brand products, continue your search in Power Line Filters on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 36A.
This filter is rated for a maximum voltage of 480V AC.
The operating frequency for this unit is 60Hz.
The physical dimensions of this model are 151mm in length, 66mm in height, and 250mm in depth.
It operates within a temperature range of -25°C to 100°C.
It features a robust single-stage design with high attenuation for both symmetric and asymmetric signals, effectively filtering interference in the frequency range of 10kHz to 30MHz.
This unit supports chassis mounting with screw terminal connections for secure installation.
The leakage current is 8.6mA, which allows compatibility with sensitive electronic equipment.
It complies with IEC 60068-1, IEC 61140, and UL 94V-0 standards.
The electrical resistance of this model is 3.32mΩ, which helps maintain energy efficiency.
This model supports three phases.
