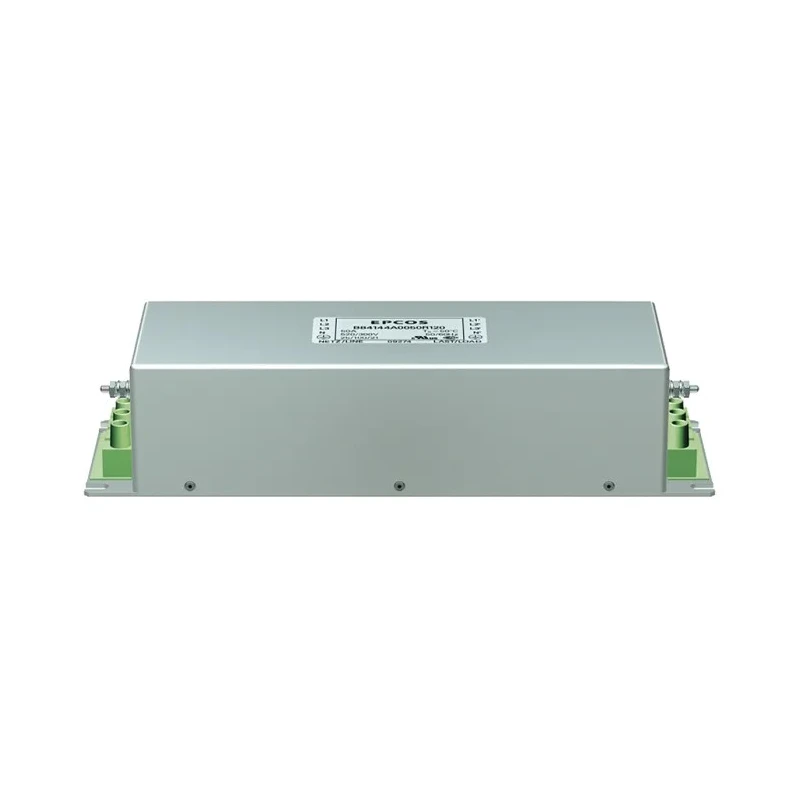

TDK Flange EMC Filter 50A 520V AC 60Hz Screw Termination 3 Phase B84144A0050R120

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter 50A 520V AC 60Hz Screw Termination 3 Phase B84144A0050R120



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	60mm
Length	90mm
Model	B84144A0050R120
Depth	272mm
Mount Type	Flange
Operating Frequency	60Hz
Series	B84144A*R120
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	1.3mΩ
Minimum Operating Temperature	-25°C
Maximum Current	50A
Compliance	UL and cUL pending
Number of Phases	3
Leakage Current	9.4mA
Maximum Voltage	520V ac
Standards/Approvals	UL 1283
Termination Style	Screw
Applications include	Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies and Industrial applications

Key Features

Supports three-phase operation with high current capacity of 50A.
Rated for 520V AC maximum voltage and 60Hz frequency.
Flange mount and screw termination for secure installation.
Optimized for long motor cables and robust industrial use.
Leakage current is limited to 9.4mA, ensuring operational safety.
Construction includes a metal case and polyurethane potting for durability.
Operating temperature range from -25°C to 100°C for harsh environments.
Compatible with frequency converters, power supplies, elevator, pump and HVAC systems.

Product Description

The TDK B84144A0050R120 is a high-capacity flange EMC filter designed to protect industrial power lines in demanding environments. Rated at 50A maximum current and 520V AC, it is ideal for applications requiring efficient electromagnetic compatibility protection across three-phase systems.

Featuring a flange mount and screw termination style, this filter ensures reliable and secure installation. With a 60Hz operating frequency and one stage of filtering, it is optimized for use with long motor cables and full-load industrial operation. Application scenarios include frequency converters for motor drives, pumps, elevators, conveyor systems, HVAC systems, as well as power supplies typical of industrial setups.

The EMC filter uses a robust metal case, potted in polyurethane material rated UL 94 V-0, providing excellent durability and electrical insulation. The leakage current is limited to 9.4mA, maintaining safe performance even during continuous operation. The product's resistance is measured at just 1.3mΩ, contributing to energy efficiency and low thermal losses.

The device is compliant with major international standards including UL 1283, EN 133200, and CSA C22.2 No.8. It offers an operating temperature range from -25°C to 100°C, suitable for harsh industrial environments. The filter dimensions are 90mm in length, 272mm in depth, and 60mm in height, making it compatible with compact panel installations.

Its advanced design allows easy integration into power line filtering for a variety of electrical and electronic devices requiring EMC mitigation. Industrial and laboratory users, as well as construction and HVAC professionals, benefit from its reliable performance and compliance with critical EMC standards.
