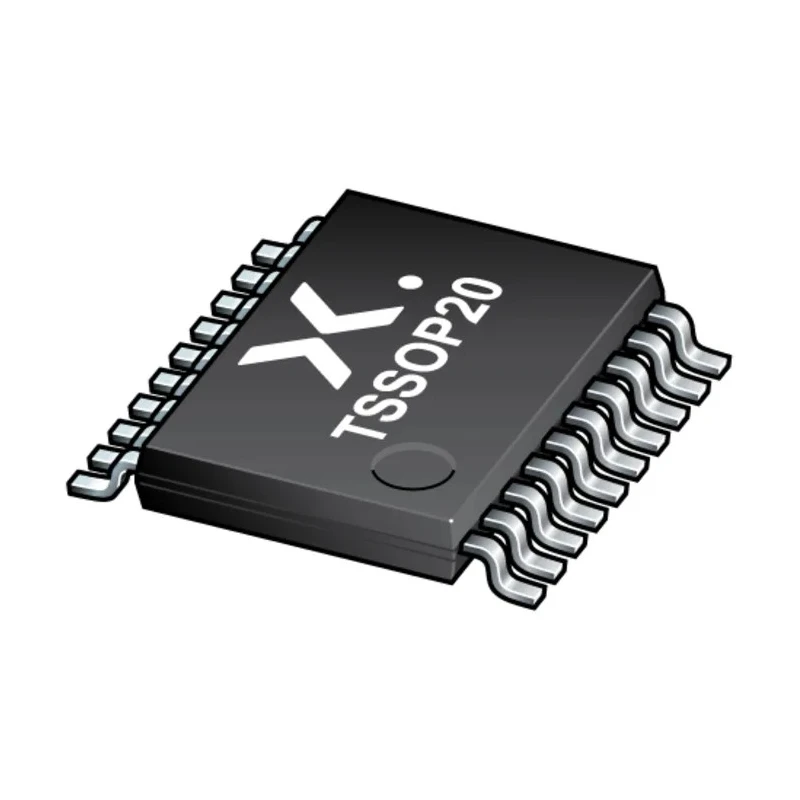

Nexperia 8-Channel Buffer & Line Driver, 3 State, Non-Inverting, 20-Pin TSSOP 74LVC541APW,118
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 6.6mm |
| Model | 74LVC541APW,118 |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74LVC541A |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Octal Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LVC |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 6.5ns |
| Supply Current | 40μA |
| Maximum Low Level Output Current | 24mA |
Key Features
- This IC features 8 non-inverting channels with 3 state outputs controlled by output enable inputs.
- Input signals are single-ended, suitable for mixed 3.3V and 5V applications.
- Maximum propagation delay time is 6.5 nanoseconds at capacitive load.
- Compact 20-pin TSSOP surface-mount package with dimensions 6.6mm length, 4.5mm width, and 1.1mm height.
- Operating temperature range from -40°C to 125°C ensuring reliability in industrial conditions.
- Low supply current consumption of 40μA enables energy efficient designs.
- The device provides 5V tolerant inputs and outputs, allowing safe interfacing with higher voltage levels.
- Supports partial power-down applications with IOFF circuitry preventing backflow current damage.
Product Description
Nexperia 74LVC541APW,118 is an octal 8-channel buffer and line driver with 3 state non-inverting outputs designed for modern mixed voltage digital applications. Operable within a wide supply voltage range of 1.2V to 3.6V, this device ensures compatibility with both 3.3V and 5V logic levels.
The 20-pin TSSOP surface mount package provides a compact footprint with precise dimensions of 6.6mm length, 4.5mm width, and a low profile height of 1.1mm, suitable for high-density circuit board layouts. The buffer outputs are 3-state, controlled via output enable pins OE1 and OE2, enhancing signal routing flexibility.
Featuring 5V tolerant inputs and outputs, it provides robust interfacing options in mixed voltage environments without the risk of damage or erroneous backflow currents, thanks to its IOFF power-down circuitry. The device can withstand applied voltages up to 5.5V on outputs even when disabled, ideally suited for system level voltage translation tasks.
The maximum propagation delay time is 6.5 nanoseconds at a capacitive load, allowing for high-speed signal buffering and transmission. Operating temperature spans from -40°C to 125°C, making it reliable for industrial and automotive electronics operating in harsh environments.
This buffer and line driver draws a low quiescent supply current of only 40μA, promoting energy efficiency in power-sensitive electronic designs. The Nexperia 74LVC541APW,118 device complies with RoHS standards and is manufactured in China.
This device significantly improves signal integrity and current drive capability in complex electronic layouts. I/O pins can be safely interfaced with 5V logic without damage risks. Applications include digital signal buffering, voltage translation, and line driving in industrial, automotive, and consumer electronics sectors.
Surface mount TSSOP package facilitates automated assembly processes. Partial power-down capability with IOFF reduces system power consumption during idle states. Explore more products in the Line Interface ICs category on EnvMart for efficient electronics design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Nexperia 74LVC541APW,118 is 3.6V.
This IC operates within a temperature range of -40°C to 125°C, making it suitable for industrial applications.
This model features 8 non-inverting channels.
The maximum propagation delay time is 6.5 nanoseconds at a capacitive load.
It comes in a compact 20-pin TSSOP surface-mount package.
The supply current consumption is 40μA, promoting energy efficiency.
Yes, it features 5V tolerant inputs and outputs, allowing safe interfacing with higher voltage levels.
The input type is single-ended, suitable for mixed voltage applications.
The dimensions are 6.6mm in length, 4.5mm in width, and 1.1mm in height.
The output type is 3-state, controlled by output enable inputs.
The device complies with RoHS standards.
It is suitable for digital signal buffering, voltage translation, and line driving in various electronic sectors.
