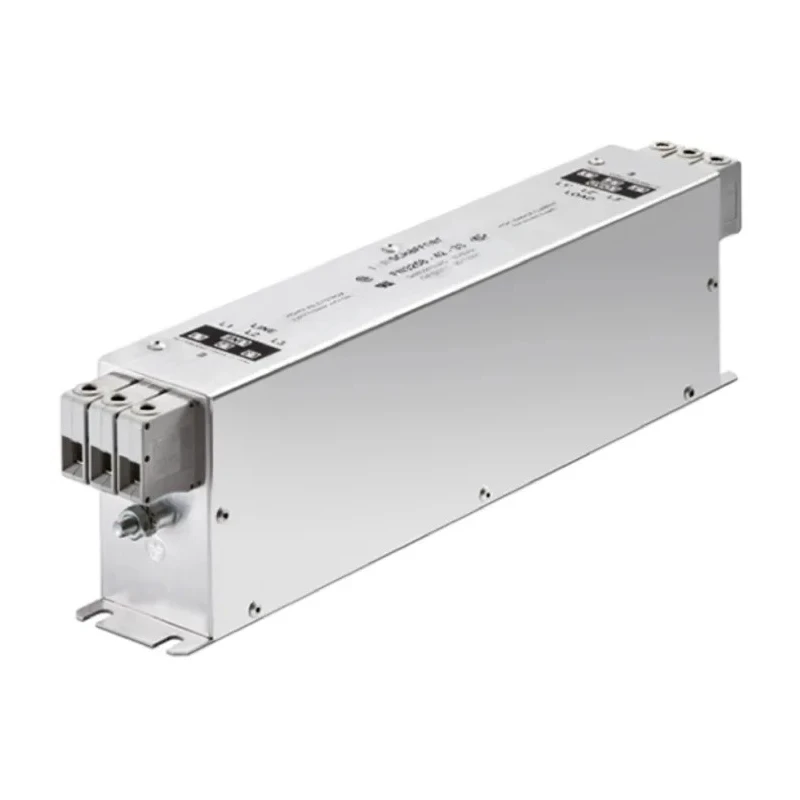

Schaffner Chassis Mount EMC Filter 42A 480V AC 60Hz Terminal Block 3 Phase FN3258
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Schaffner |
| Height | 85mm |
| Length | 310mm |
| Model | FN3258 |
| Depth | 50mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 60Hz |
| Series | FN3258 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 42A |
| Number of Phases | 3 |
| Leakage Current | 33mA |
| Maximum Voltage | 480V ac |
| Termination Style | Terminal Block |
| Power Loss | 15.7W |
Key Features
- Designed for chassis mount installation to save space.
- Supports 42A maximum current and 480V AC voltage.
- Operates efficiently at 60Hz frequency with 15.7W power loss.
- Compact size with length 310mm, height 85mm, and depth 50mm.
- Features a single stage filter with leakage current of 33mA.
- Operating temperature range from -25°C to 100°C for durability.
- Reliable for use in variable speed motor drives, inverters, HVAC, and power supplies.
- Lightweight and slim design with excellent saturation resistance.
Product Description
Schaffner FN3258 chassis mount EMC filter is engineered to provide high-performance electromagnetic compatibility filtering for 3-phase power applications. Rated for 42A maximum current at 480V AC and operating at 60Hz, this filter is designed to reduce electromagnetic interference and protect sensitive electronics.
Its chassis mount design allows for efficient space utilization, making it ideal for installation where mounting area is limited. The filter incorporates terminal block termination style for secure electrical connections across three phases.
With a single-stage configuration, the filter exhibits outstanding attenuation performance from 150 kHz to 30 MHz range, ensuring reliable noise suppression in demanding industrial environments. The unit maintains expected performance under full load and is resistant to magnetic saturation, even with cable lengths up to 50 meters.
The filter's compact dimensions (310mm length, 85mm height, 50mm depth) and lightweight construction make it suitable for HVAC equipment, servo drives, inverters, elevators, and power supplies. It operates reliably across a wide temperature range from -25°C to 100°C, offering versatility for diverse industrial and commercial applications.
Designed for chassis mount installation to save space. Supports 42A maximum current and 480V AC voltage. Operates efficiently at 60Hz frequency with 15.7W power loss. Compact size with length 310mm, height 85mm, and depth 50mm.
Features a single stage filter with leakage current of 33mA. Operating temperature range from -25°C to 100°C for durability. Reliable for use in variable speed motor drives, inverters, HVAC, and power supplies. Lightweight and slim design with excellent saturation resistance.
Manufactured in Thailand with CSA certification for North America. This filter complies with relevant industrial standards EN 133200 and IEC 60939, and is CSA certified for Canada and the US, ensuring quality and safety in demanding environments.
Ideal for electrical engineering, industrial manufacturing, and commercial applications requiring effective noise filtering. Explore more EMC Filters and electronic components on EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN3258 filter supports a maximum current of 42A.
It operates at a maximum voltage of 480V AC.
This model operates efficiently at a frequency of 60Hz.
The filter has a length of 310mm, a height of 85mm, and a depth of 50mm.
The leakage current for the FN3258 is rated at 33mA.
It operates reliably within a temperature range of -25°C to 100°C.
This filter is designed for chassis mount installation.
The FN3258 has a power loss of 15.7W during operation.
This filter features a single-stage configuration.
It is reliable for use in variable speed motor drives, inverters, HVAC systems, and power supplies.
The filter incorporates a terminal block termination style for secure electrical connections.
It is CSA certified for North America and complies with EN 133200 and IEC 60939 standards.
