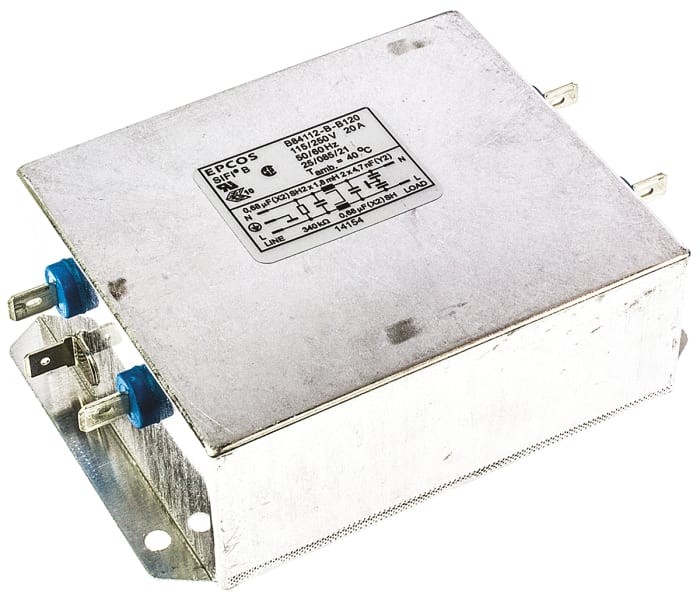

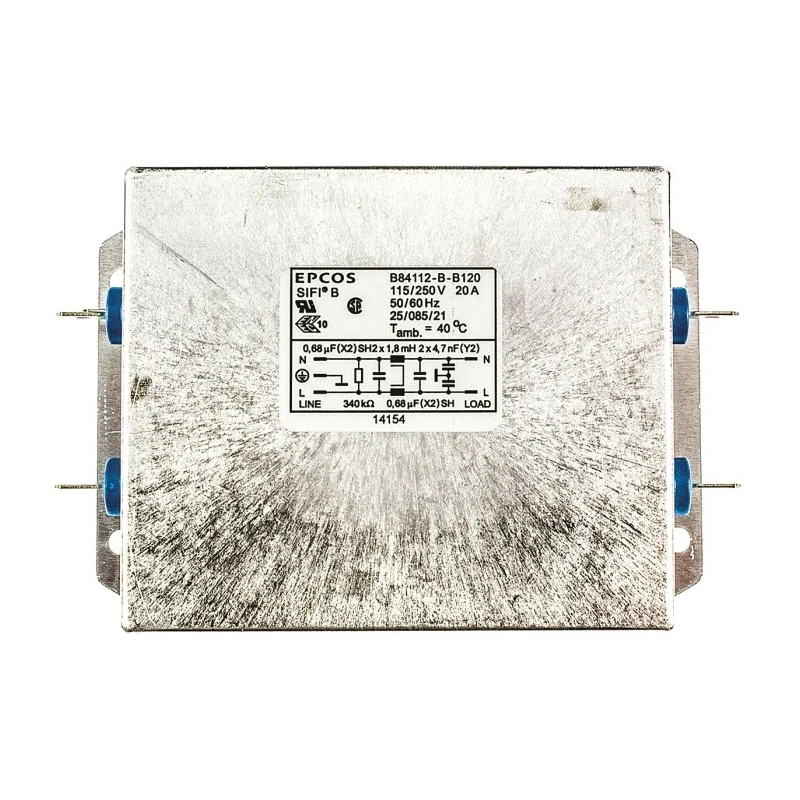

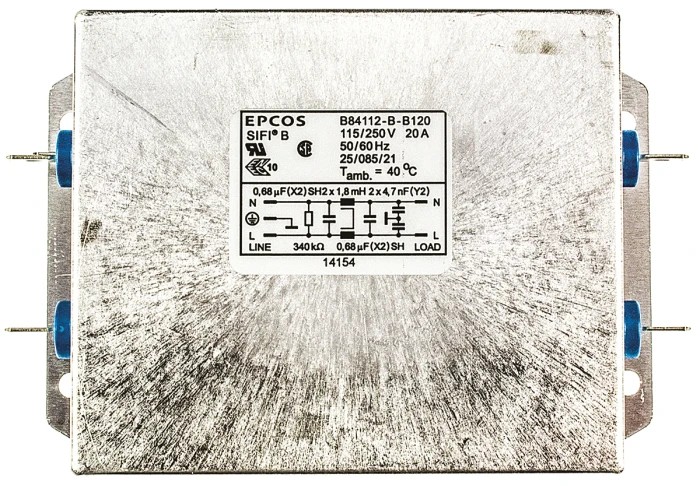

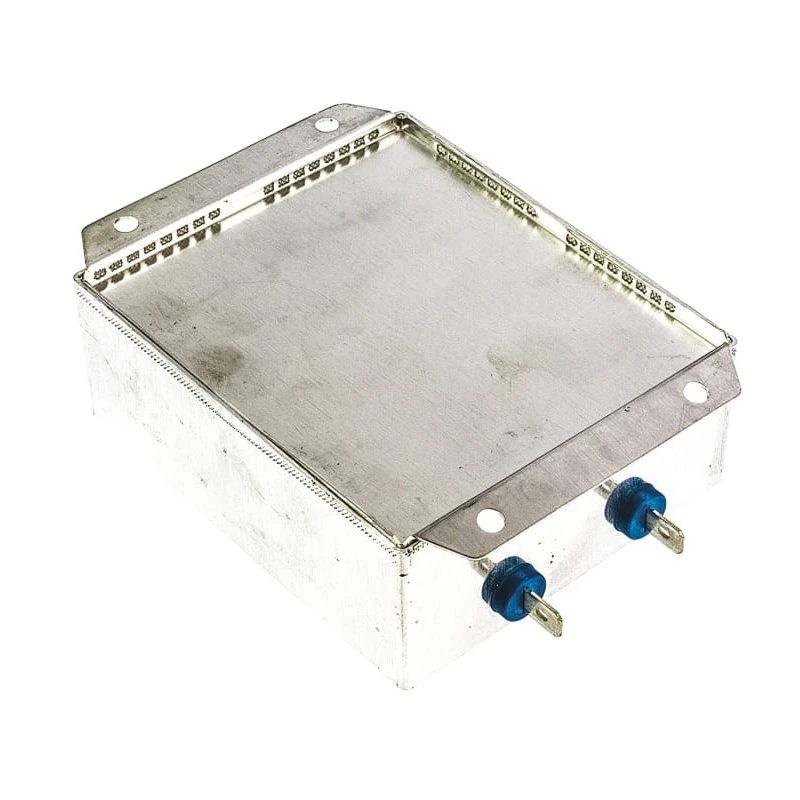

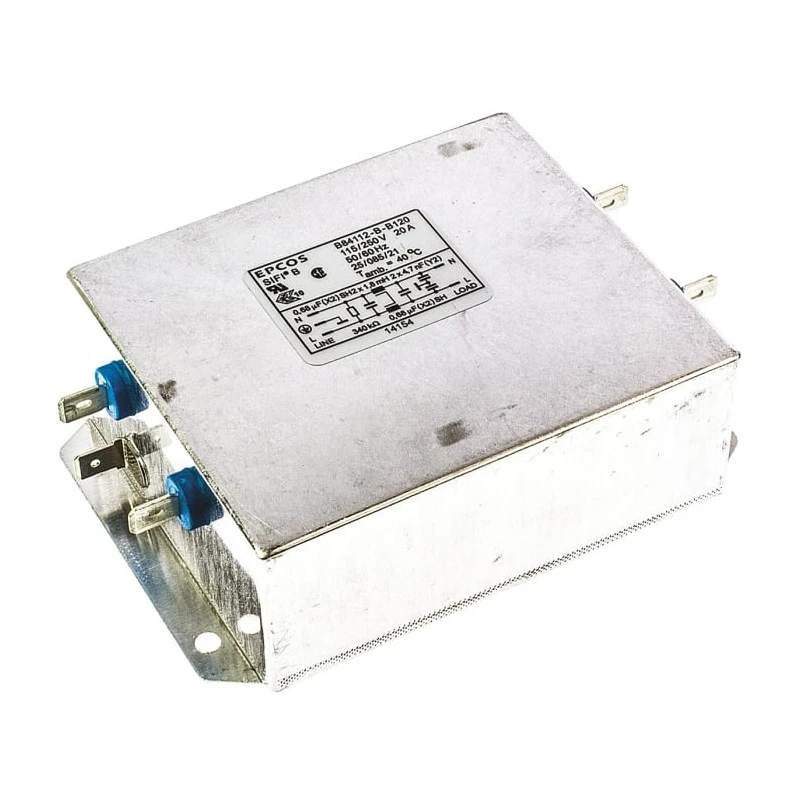

TDK Chassis Mount EMC Filter 20 A 250V AC 50Hz/60Hz Single Phase Tab Termination B84112B0000B120

TDK B84112B0000B120 chassis mount EMC Filter is designed for single-phase systems requiring electromagnetic interference suppression with a maximum current rating of 20 A and operating voltage of 250 V AC at 50Hz or 60Hz. The compact chassis mount configuration with tab termination allows for simple and secure installation in industrial electronic equipment.

This filter features 2pF capacitance and 2mH inductance, optimized to minimize leakage current to 369μA, enabling reliable suppression of radio frequency interference. It is fabricated to operate effectively across a temperature range of -25°C to 85°C, making it suitable for diverse operating environments.

With a length of 125 mm, a depth of 84 mm, and a height of 38.1 mm, the B84112B series filter complies with RoHS directives. It achieves approvals from multiple international bodies including UL, CSA, VDE, SEV, SEMKO, and DEMKO, underscoring its quality and safety for electronic applications.

Typical applications include industrial electronics, switch-mode power supplies, telecommunications, DC applications, and data systems where reliable EMI suppression is critical for performance and compliance. This single-stage, single-phase RFI filter delivers robust EMI filtering ensuring equipment functionality and longevity.

Compact chassis mounting for ease of installation. High maximum current rating of 20 A at 250 V AC. Low leakage current optimized at 369μA. Wide operating temperature range from -25°C to 85°C. Single-phase, single-stage filtering in the B84112B series.

Compliance with RoHS and multiple global certifications. Suitable for industrial, telecommunications, and data system applications. Explore our extensive range of electronic components and EMI filters within EnvMart for reliable performance and compliance in your electronic projects and industrial systems.
