Microchip 3-Port 10/100 Mbps Managed Ethernet Switch IC 3.3 V 56-Pin QFN LAN9303-ABZJ

Free Delivery in India | Lowest Global Shipping Charges

Microchip 3-Port 10/100 Mbps Managed Ethernet Switch IC 3.3 V 56-Pin QFN LAN9303-ABZJ

Name: Microchip 3-Port 10/100 Mbps Managed Ethernet Switch IC 3.3 V 56-Pin QFN LAN9303-ABZJ
Brand: Microchip
SKU: 128091
Price: 9.61 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	8mm
Model	LAN9303-ABZJ
Width	8mm
Mount Type	Surface
Number Of Ports	3
Maximum Operating Temperature	70°C
Package Type	QFN
Minimum Operating Temperature	0°C
Communication Mode	Full Duplex/Half Duplex
Pin Count	56
Maximum Supply Voltage	3.3V
Maximum Data Rate	100Mbps
Loopback Mode	Internal
Standard Supported	IEEE 802.3

Key Features

Supports full duplex and half duplex communication modes.
Operates compliant with IEEE 802.3 Ethernet standards.
Includes internal loopback mode for diagnostics.
Provides integrated ±8kV/15kV ESD protection per port.
Supports up to 16 VLAN groups with per-port IEEE 802.1Q VLAN feature.
Offers multicast filtering through IGMP v1 and v2 monitoring.
Turbo MII interface allows network speeds up to 200 Mbps.
Features I2C interface for EEPROM or external CPU management.

Product Description

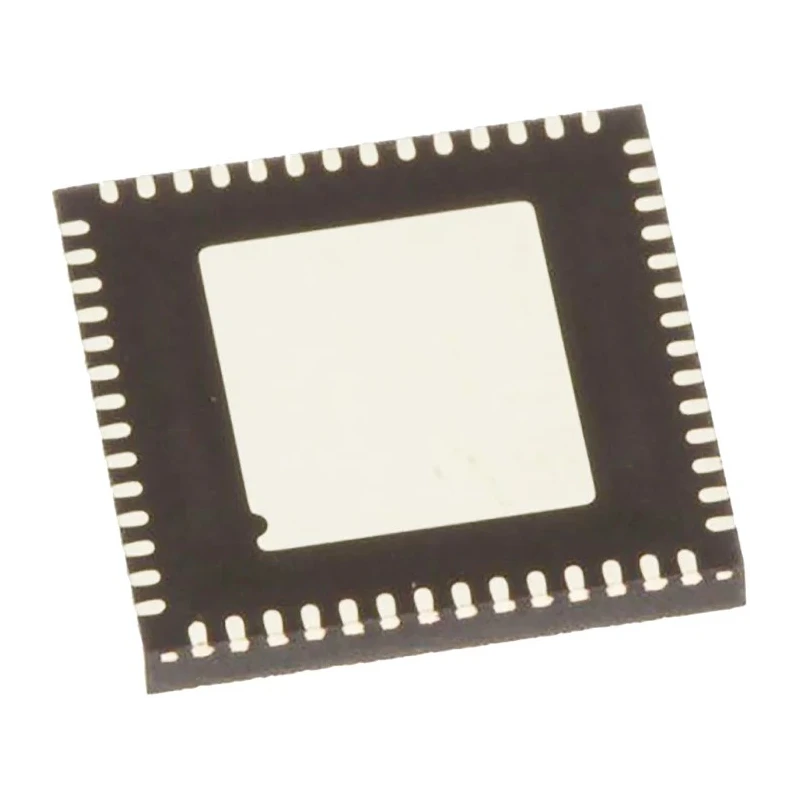

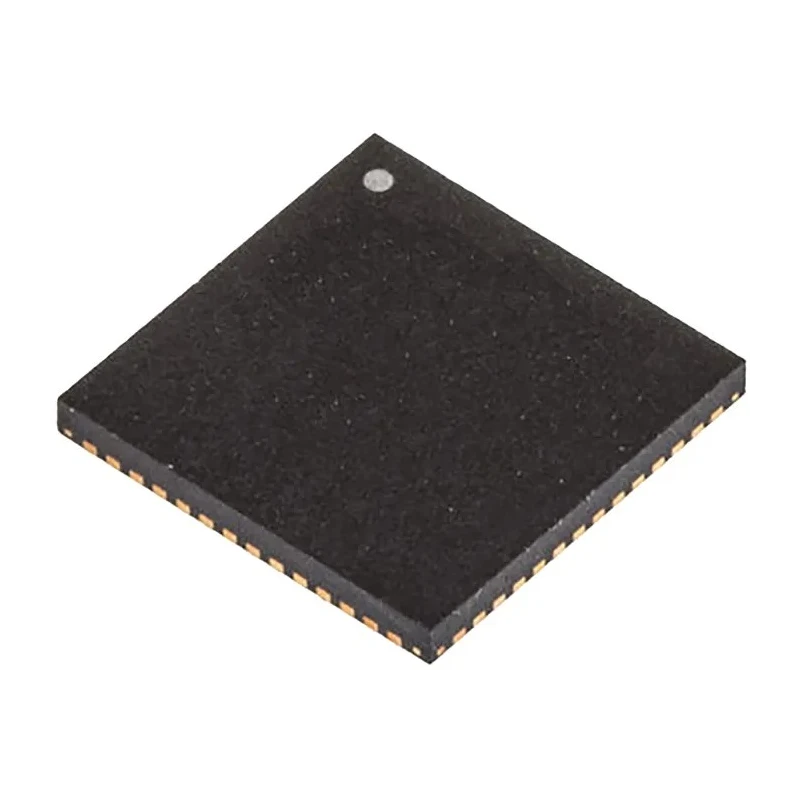

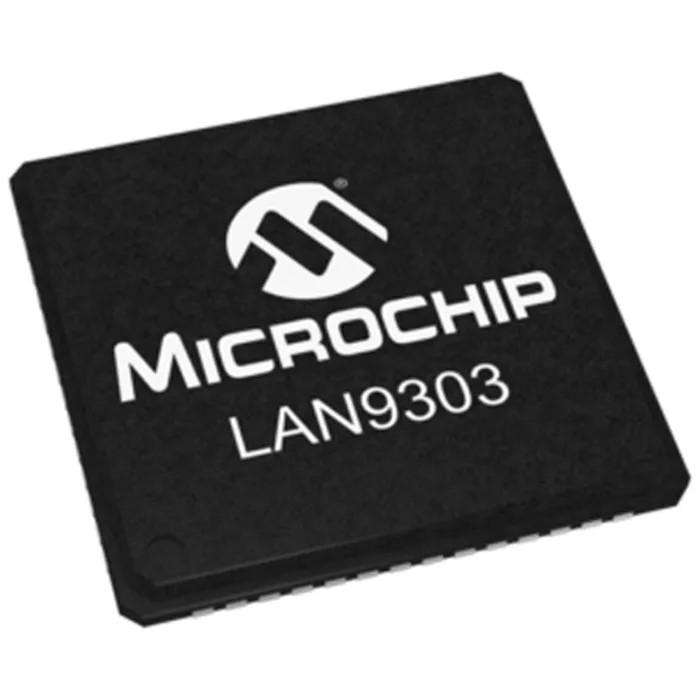

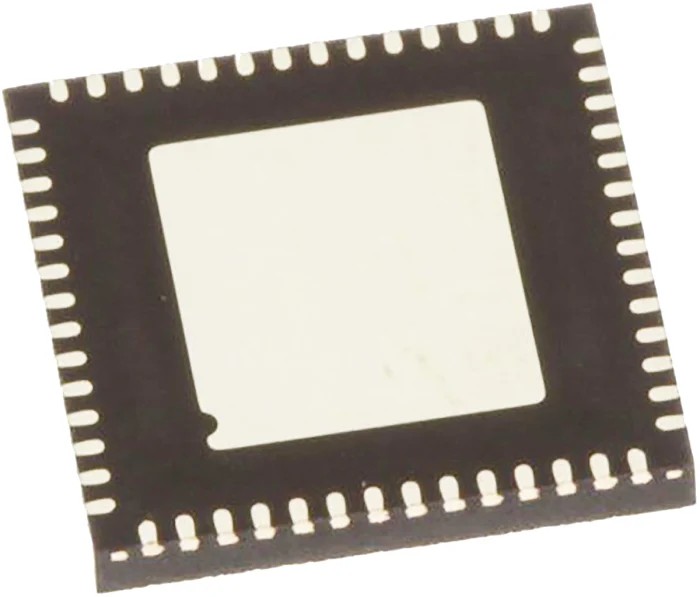

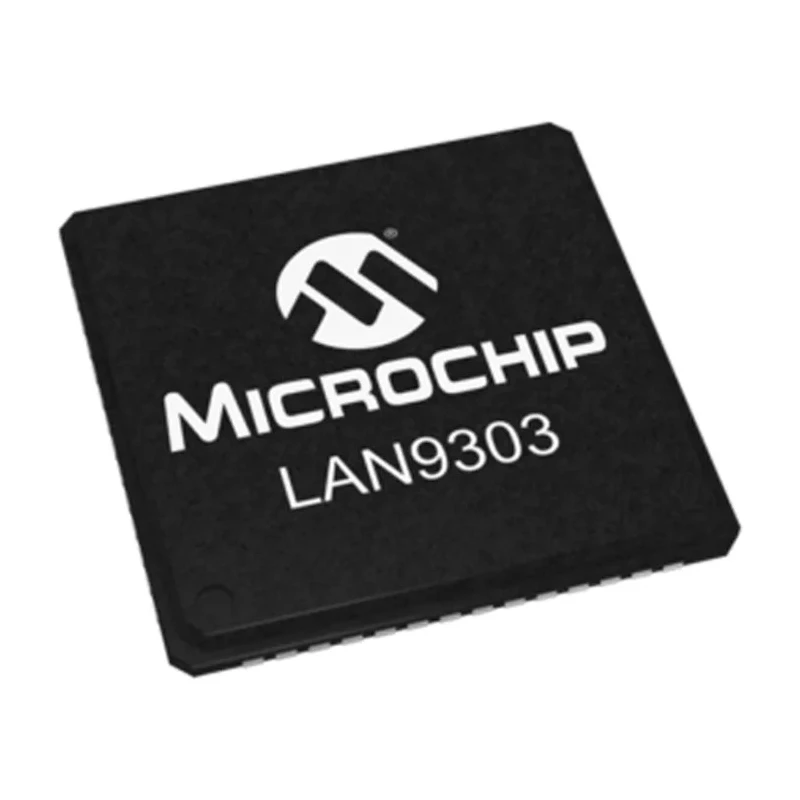

Microchip LAN9303-ABZJ is a compact 3-port 10/100 Mbps managed Ethernet switch integrated circuit designed for network switching applications. It operates at a supply voltage of 3.3 V and comes in a small 56-pin QFN package measuring 8 mm by 8 mm with a 1 mm height, suitable for modern surface-mount technology assemblies.

This switch IC complies with IEEE 802.3 standards and supports both full duplex and half duplex communication modes, providing versatile network compatibility. It incorporates internal loopback mode to facilitate hardware diagnostics and troubleshooting.

Advanced network management features include per-port IEEE 802.1Q VLAN support with up to 16 VLAN groups, IGMP v1/v2 monitoring for efficient multicast packet filtering, and 42 per-port MIB counters to enable detailed network management analytics. The Turbo MII interface supports data rates up to 200 Mbps for enhanced network throughput.

Robust design includes integrated ±8kV (contact) and ±15kV (air) Electrostatic Discharge (ESD) protection per port, ensuring reliable operation in industrial and commercial environments. The device also supports optional EEPROM or external CPU serial management through an I2C interface, enabling flexible configuration options. The virtual PHY feature simplifies software development by emulating multiple switch ports as a single-port PHY.

Typical applications of the LAN9303-ABZJ include Ethernet networking equipment, industrial control systems, embedded systems, and telecommunications infrastructure where a reliable and compact Ethernet switch solution is needed.

Supports full duplex and half duplex communication modes. IEEE 802.3 standard compliance for Ethernet interfaces. Internal loopback mode for testing and diagnostics. Integrated ±8kV/15kV per-port ESD protection enhances reliability.

Per-port IEEE 802.1Q VLAN support for up to 16 VLAN groups. Multicast packet filtering with IGMP v1/v2 monitoring. Turbo MII interface enabling up to 200 Mbps network speed. I2C interface for optional EEPROM or external CPU serial management.

Compact 56-pin QFN package with dimensions 8 mm x 8 mm x 1 mm. Explore more Ethernet Interface Ics and advanced semiconductor products at EnvMart for your industrial, networking, and communication system needs.
