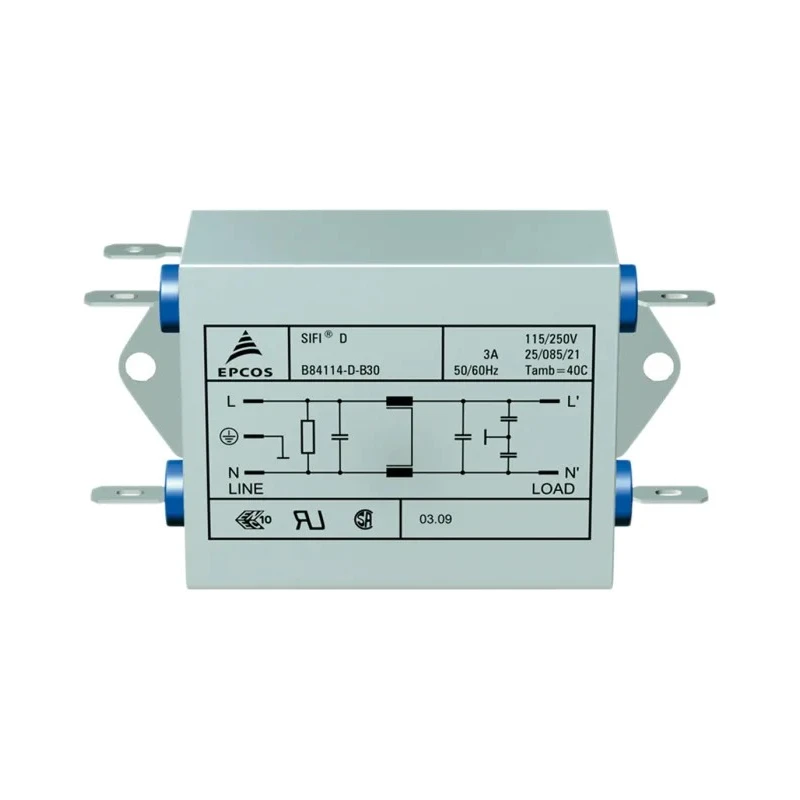

TDK Flange EMC Filter Tab 1 Phase 10A 250V AC 50Hz 60Hz B84114D0000B110
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 44.5mm |
| Length | 118mm |
| Model | B84114D0000B110 |
| Depth | 50.8mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | B84114D |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 1 |
| Capacitance | 2pF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 10A |
| Number of Phases | 1 |
| Leakage Current | 369μA |
| Maximum Voltage | 250V ac |
| Inductance | 2mH |
| Standards/Approvals | RoHS |
| Termination Style | Tab |
Key Features
- Provides high attenuation with large capacitance and inductance values.
- Suitable for switch mode power supplies in electronic equipment.
- Low leakage current enhances safety and efficiency.
- Features an aluminium case for durability and heat dissipation.
- Compliant with RoHS standards and recognized by UL, CSA, VDE, SEV, SEMKO, and DEMKO.
- Operates reliably within a temperature range of -25°C to 85°C.
- Compact dimensions with 118mm length, 50.8mm depth, and 44.5mm height.
- Capacitance is 2pF and inductance is 2mH, ensuring effective EMI filtering.
Product Description
TDK B84114D0000B110 Flange EMC Filter Tab 1 Phase is engineered for high performance in power line noise suppression. This EMC filter is rated for a maximum current of 10A and maximum voltage of 250V AC, operating effectively at frequencies of 50Hz and 60Hz. Its flange mounting style and tab termination simplify integration into electronic equipment, particularly in industrial and commercial switch mode power supplies.
The filter achieves high attenuation through its substantial capacitance (2pF) and inductance (2mH) values while maintaining a low leakage current of 369μA, making it reliable and efficient in maintaining signal integrity. The aluminium casing provides robust protection and assists in thermal management.
With operating temperature limits ranging from -25°C to 85°C, this EMC Filter can withstand varied environmental conditions, ensuring consistent performance. Compact in size, it measures 118mm in length, 50.8mm in depth, and 44.5mm in height, optimizing space usage in equipment design.
Provides high attenuation with large capacitance and inductance values. Suitable for switch mode power supplies in electronic equipment. Low leakage current enhances operational safety and reduces energy loss. Durable aluminium case ensures longevity and effective heat dissipation.
Certified by multiple standards organizations including UL, CSA, VDE, SEV, SEMKO, and DEMKO. Single-phase, single-stage design for effective EMI noise suppression. Compact dimensioning allows for easy installation in crowded electrical panels.
Wide operational temperature range supports various industrial environments.
This filter is ideal for industrial apparatus, laboratory equipment, construction electronics, HVAC systems, manufacturing machinery, and commercial electronic devices requiring high-quality EMI suppression. TDK provides quality and reliability essential for safe and efficient power management.
Explore more high-performance power line filters from TDK on EnvMart for your specific industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 10A.
This model operates at a maximum voltage of 250V AC.
It operates effectively at frequencies of 50Hz and 60Hz.
The filter measures 118mm in length, 50.8mm in depth, and 44.5mm in height.
The capacitance is 2pF and the inductance is 2mH, ensuring effective EMI filtering.
The leakage current is 369μA, which enhances operational safety and efficiency.
It operates reliably within a temperature range of -25°C to 85°C.
This EMC filter features a flange mounting style, which simplifies integration into electronic equipment.
It is compliant with RoHS standards and recognized by UL, CSA, VDE, SEV, SEMKO, and DEMKO.
It is suitable for switch mode power supplies in industrial apparatus, laboratory equipment, HVAC systems, and commercial electronic devices.
The termination style of this EMC filter is tab termination, facilitating easy connection.
This model belongs to the B84114D series of EMC filters.
